纽荷兰零件查询(E805) - CRAWLER EXCAVATOR (1/05-) (08-013-00[01]) - HYDRAULIC CIRCUIT - COOLER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
126 次

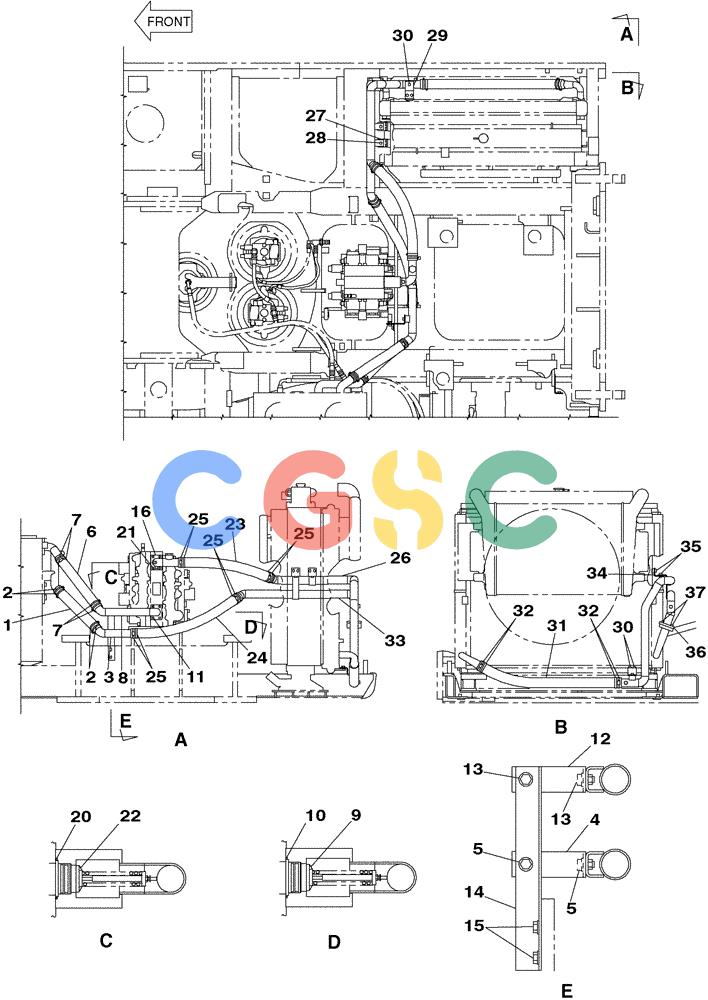

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | KHJ1920 | [1] | HOSE | SUM |
| 2. | 150893A1 | [4] | CLAMP | SUM Superseded by part number: 152796A1 |
| 3. | KUJ0316 | [1] | PIPE ASSY. | SUM |
| 4. | KUJ0347 | [1] | SUPPORT | SUM |
| 5. | 152718A1 | [2] | BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9 | SUM |
| 6. | KHJ1921 | [1] | HOSE | SUM |
| 8. | KUJ0448 | [1] | PIPE ASSY. | SUM |
| 9. | KHJ1551 | [1] | CHECK VALVE | SUM Superseded by part number: KHJ18441 |
| 10. | 154681A1 | [1] | O-RING | SUM |
| 11. | KBJ0340 | [4] | BOLT,Spcl | SUMM12 x 150 |
| 14. | KUJ0348 | [1] | SUPPORT | SUM |
| 16. | KUJ0354 | [1] | PIPE ASSY. | SUM |
| 22. | KHJ1863 | [1] | CHECK VALVE | SUM Superseded by part number: KHJ18410 |
| 23. | KHJ1918 | [1] | HOSE | SUM |
| 24. | KHJ1280 | [1] | HYDRAULIC HOSE | SUM |
| 26. | KUJ0315 | [1] | PIPE ASSY. | SUM |
| 27. | KUJ0317 | [1] | SUPPORT | SUM |
| 29. | KUJ0318 | [1] | SUPPORT | SUM |
| 31. | KHJ1919 | [1] | HOSE | SUM |
| 33. | KUJ0314 | [1] | PIPE ASSY. | SUM |
| 36. | 154641A1 | [1] | O-RING | SUM |
| 37. | 862-12030 | [4] | HEX SOC SCREW,M12 x 30mm, Cl 12.9 | SUM |
