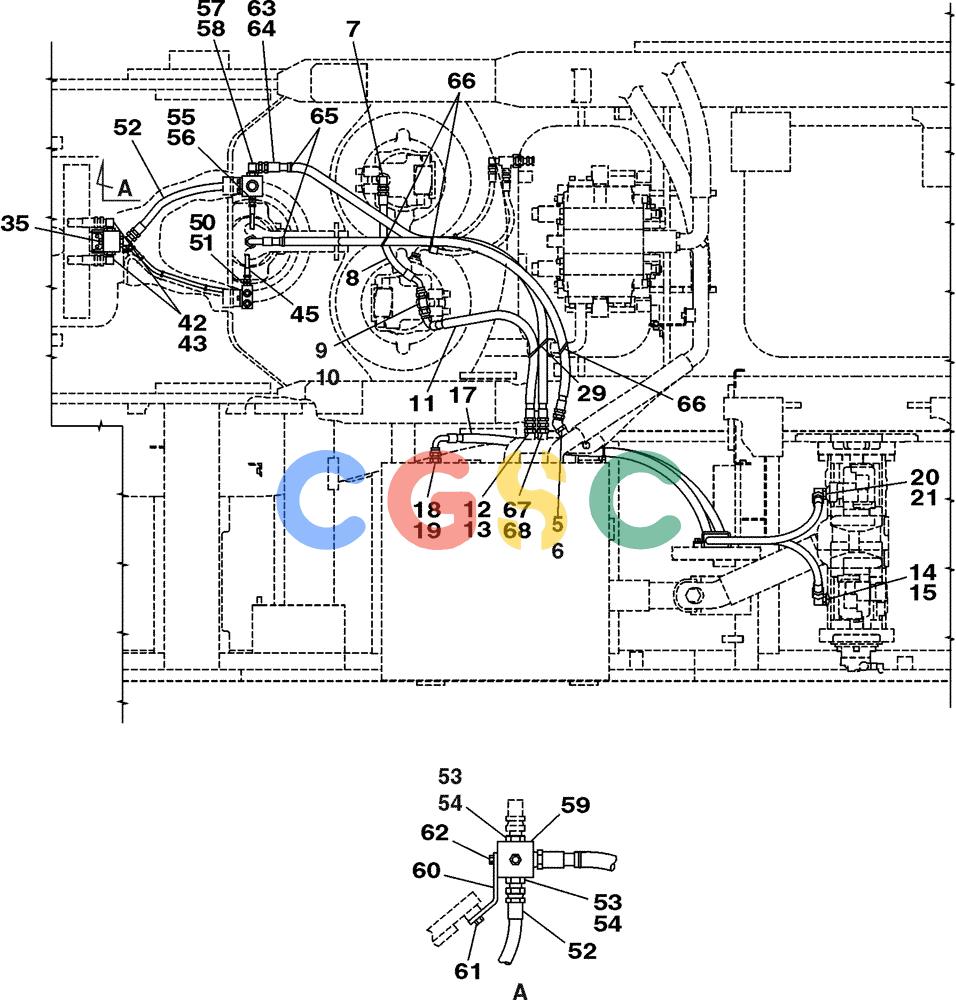

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR (1/05-) (08-019-01[01]) - HYDRAULICS DRAIN LINE - WITH LOAD HOLD New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
328 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 5. | 157586A1 | [1] | ELBOW | SUM |
| 6. | 154503A1 | [1] | O-RING | SUM |
| 7. | 168609A1 | [1] | ELBOW | SUM |
| 8. | KUJ0238 | [1] | HYDRAULIC HOSE,19.00 mm ID x 470.00 mm | SUM |
| 9. | 163114A1 | [1] | TEE | SUM |
| 10. | 154487A1 | [1] | O-RING | SUM |
| 11. | KTJ2094 | [1] | HYDRAULIC HOSE,19.05 mm ID x 1100.00 mm | SUM |
| 12. | 151654A1 | [1] | HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT | SUM |
| 14. | 157580A1 | [1] | ELBOW,90º, 3/4" O-Ring x 3/4" | SUM |
| 16. | KUJ0110 | [1] | HYDRAULIC HOSE,19.00 mm ID x 2350.00 mm | SUM |
| 17. | 151012A1 | [1] | PLASTIC-RUBBER TUBE | SUM Superseded by part number: KHR21080 |
| 29. | 150071A1 | [1] | MOUNTING CLIP | SUM |
| 35. | 166352A1 | [2] | BOLT | SUM |
| 45. | 164231A1 | [1] | HYDRAULIC HOSE | SUM |
| 50. | 152128A1 | [1] | HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT | SUM |
| 51. | 154475A1 | [1] | O-RING | SUM |
| 52. | KRJ0666 | [1] | HYDRAULIC HOSE,19.00 mm ID x 830.00 mm | SUM |
| 59. | KUJ0373 | [1] | MANIFOLD VALVE | SUM |
| 60. | 162012A1 | [1] | BRACKET | SUM |
| 61. | 166052A1 | [2] | BOLT | SUM Superseded by part number: 11106231 |
| 62. | 166350A1 | [2] | BOLT | SUM |
| 63. | KUJ0377 | [1] | HYDRAULIC HOSE,19.00 mm ID x 1800.00 mm | SUM |
| 64. | KHV0466 | [1] | PLASTIC-RUBBER TUBE | SUM Superseded by part number: KHV11610 |
| 65. | 150067A1 | [2] | MOUNTING CLIP | SUM150 mm (6 in) |
