纽荷兰零件查询(E805) - CRAWLER EXCAVATOR (1/05-) (08-019-02[01]) - HYDRAULICS DRAIN LINE - WITH LOAD HOLD New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
938 次

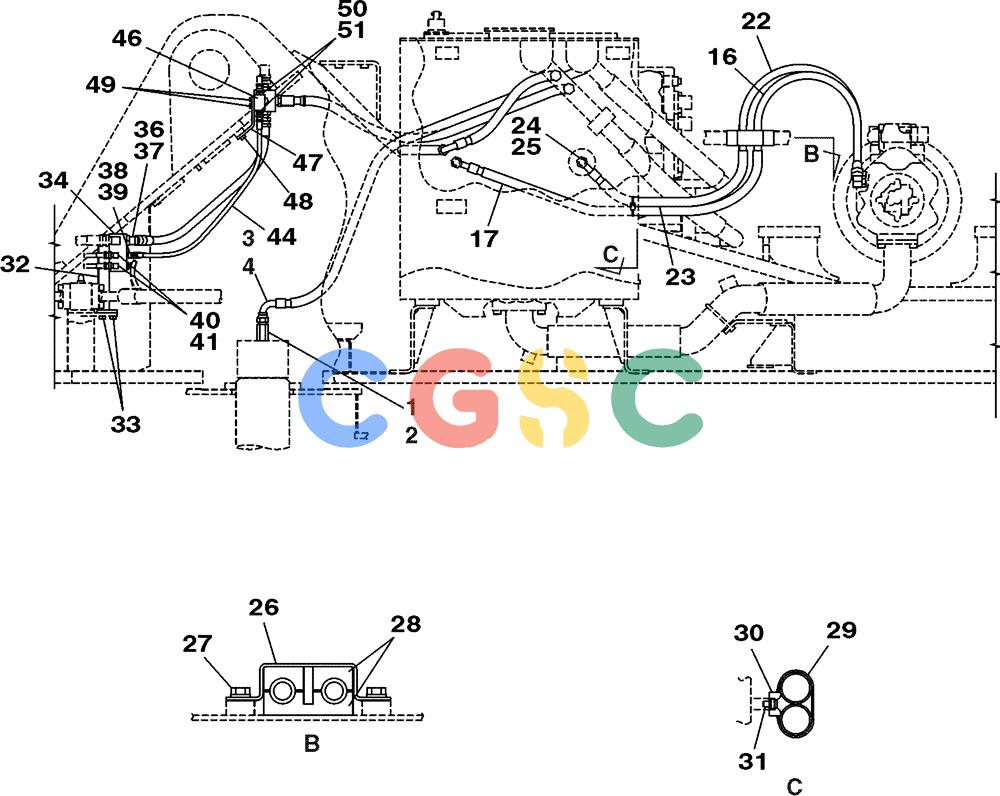

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 156664A1 | [1] | STUD | SUM |
| 2. | 154503A1 | [1] | O-RING | SUM |
| 3. | KUJ0241 | [1] | HYDRAULIC HOSE,19.00 mm ID x 2000.00 mm | SUM |
| 4. | 157867A1 | [1] | PLASTIC-RUBBER TUBE | SUM Superseded by part number: KHR21080 |
| 16. | KUJ0110 | [1] | HYDRAULIC HOSE,19.00 mm ID x 2350.00 mm | SUM |
| 17. | 151012A1 | [1] | PLASTIC-RUBBER TUBE | SUM Superseded by part number: KHR21080 |
| 22. | KRJ4590 | [1] | HYDRAULIC HOSE,19.00 mm ID x 1650.00 mm | SUM |
| 23. | 157865A1 | [1] | TUBE,28 mm ID, 34 mm OD, 800 mm Length | SUM Superseded by part number: KHR21080 |
| 24. | 151654A1 | [1] | HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT | SUM |
| 26. | KTJ2096 | [1] | BRACKET | SUM |
| 27. | 166351A1 | [2] | BOLT,Sems, M10 x 20mm | SUM |
| 28. | 161153A1 | [2] | U-BOLT,M10 x 90mm W x 110mm L | SUM |
| 29. | 150071A1 | [1] | MOUNTING CLIP | SUM |
| 30. | 150860A1 | [1] | COLLAR | SUM |
| 31. | 840-168 | [1] | SCREW,Pan, M6 x 1 x 8mm, Cl 4.8 | CAS |
| 32. | KUJ0378 | [1] | BRACKET | SUM |
| 33. | 166352A1 | [3] | BOLT | SUM |
| 34. | KUJ0371 | [1] | MANIFOLD VALVE | SUM |
| 36. | 157586A1 | [1] | ELBOW | SUM |
| 38. | 157584A1 | [1] | ELBOW | SUM |
| 39. | 154475A1 | [1] | O-RING | SUM |
| 40. | 150916A1 | [4] | ELBOW,90º, 3/8" O-Ring x 3/8" | SUM |
| 44. | KNJ2060 | [1] | HOSE | SUM |
| 46. | KUJ0372 | [1] | MANIFOLD VALVE | SUM |
| 47. | 162012A1 | [1] | BRACKET | SUM |
| 48. | 166052A1 | [2] | BOLT | SUM Superseded by part number: 11106231 |
| 49. | 166350A1 | [2] | BOLT | SUM |
| 50. | 152128A1 | [2] | HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT | SUM |
