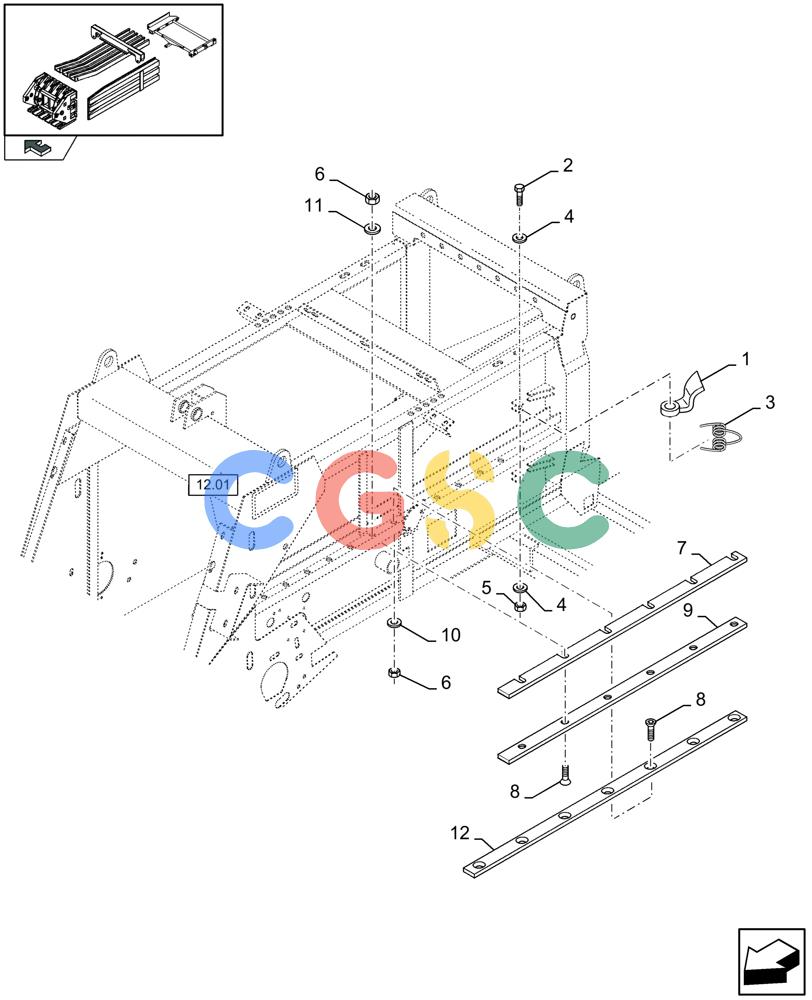

凯斯零件查询(LB333P) - BIG RECTANGULAR BALER 'PACKER CUTTER' (9/08-12/12) (14.04[01]) - PLUNGER RAILS Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
543 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
89837987
|
[1] |
GUIDE
|
ZED
Superseded by part number: 9837987
|
| 2. |
43874
|
[1] |
BOLT,Hex, M16 x 110, 8.8
|
NH
|
| 3. |
84806594
|
[1] |
SPRING
|
ZED
|
| 4. |
51639
|
[1] |
WASHER,16.5mm ID x 41.3mm OD x 3.5mm Thk
|
ZED
|
| 5. |
86000441
|
[1] |
NUT,M16 x 2.0, Cl 8
|
NH
|
| 6. |
412141
|
[26] |
NUT,M10 x 1.5, Cl 8
|
ZED
Superseded by part number: 190003888452
|
| 7. |
84444575
|
[1] |
SHIM,60mm OD x 0.5mm Thk
|
ZED
0.5 mm
|
| 7. |
84444574
|
[1] |
ADJUSTING PLATE
|
ZED
1 mm
|
| 8. |
412466
|
[26] |
HEX SOC SCREW,FLAT, M10 x 35mm, Cl 8.8
|
ZED
|
| 9. |
9837986
|
[2] |
GUIDE
|
ZED
|
| 10. |
140042
|
[14] |
WASHER,11mm ID x 34mm OD x 3mm Thk
|
GI
|
| 11. |
378244
|
[12] |
WASHER,10.5mm ID x 24mm OD x 2mm Thk
|
NH
|
| 12. |
84801492
|
[2] |
GUIDE
|
ZED
|
