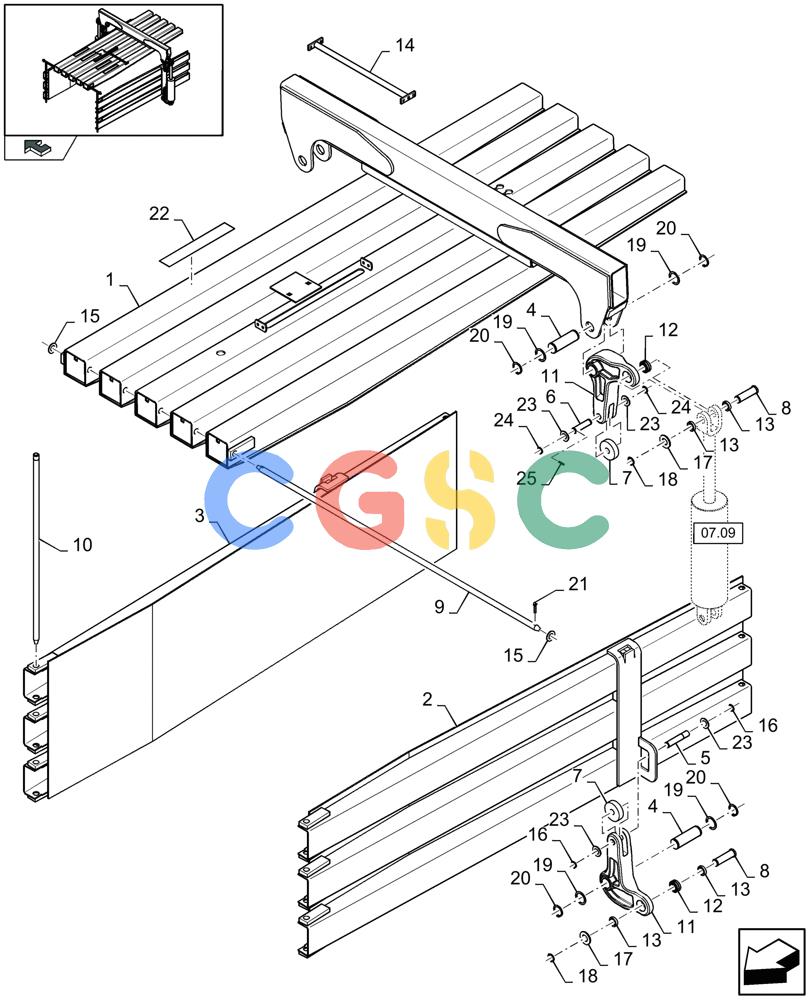

凯斯零件查询(LB333P) - BIG RECTANGULAR BALER 'PACKER CUTTER' (9/08-12/12) (14.05[01]) - PLATE BALE CHUTE Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
289 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87671270
|
[1] |
DOOR
|
ZED
, Serial Range: -C859 Superseded by part number: 84302791
|
| 1. |
84302791
|
[1] |
DOOR
|
ZED
, Start Serial: D860
|
| 1. |
87692251
|
[1] |
DOOR
|
ZED
, Serial Range: -C859 Superseded by part number: 84499278
|
| 1. |
84302785
|
[1] |
DOOR
|
ZED
, Serial Range: -F860895 Superseded by part number: 84499278
|
| 1. |
84499278
|
[1] |
DOOR
|
ZED
, Start Serial: D896
|
| 2. |
87471580
|
[1] |
DOOR
|
ZED
, Serial Range: -C859 Superseded by part number: 84302777
|
| 2. |
84302777
|
[1] |
DOOR
|
ZED
, Start Serial: D860
|
| 3. |
87471582
|
[1] |
DOOR
|
ZED
, Serial Range: -C859 Superseded by part number: 84302780
|
| 3. |
84302780
|
[1] |
DOOR
|
ZED
, Start Serial: D860
|
| 4. |
84800563
|
[4] |
SHAFT
|
ZED
|
| 5. |
87670112
|
[2] |
SHAFT
|
ZED
|
| 6. |
87346836
|
[2] |
PIN,20mm OD x 82mm L
|
ZED
, Serial Range: -C895
|
| 6. |
84387179
|
[2] |
SHAFT
|
ZED
, Start Serial: D896
|
| 7. |
9838030
|
[4] |
ROLLER,20.25mm ID x 75mm OD x 20mm L
|
ZED
|
| 8. |
87657046
|
[4] |
SHAFT,25mm OD x 93mm L
|
ZED
, Serial Range: -C895
|
| 8. |
84418384
|
[4] |
SHAFT
|
ZED
, Start Serial: D896
|
| 9. |
84818497
|
[1] |
ROD
|
ZED
|
| 9. |
84818493
|
[1] |
ROD
|
ZED
|
| 10. |
84818491
|
[2] |
ROD
|
ZED
|
| 11. |
87654282
|
[4] |
LEVER
|
ZED
|
| 11. |
87697863
|
[4] |
LEVER
|
ZED
|
| 12. |
9838429
|
[4] |
SPHERICAL BEARING,25mm ID x 42mm OD x 20mm W
|
ZED
|
| 13. |
916111
|
[8] |
WASHER
|
ZED
|
| 14. |
84817692
|
[1] |
TUBE
|
ZED
|
| 14. |
84817391
|
[1] |
TUBE
|
ZED
|
| 15. |
378247
|
[2] |
WASHER,21mm ID x 39mm OD x 3mm Thk
|
ZED
|
| 16. |
370024
|
[4] |
CIRCLIP,M20, Ext
|
NH
|
| 17. |
378248
|
[4] |
WASHER,25mm ID x 50mm OD x 4mm Thk
|
ZED
|
| 18. |
370002
|
[4] |
CIRCLIP,M25, External
|
NH
|
| 19. |
84800564
|
[8] |
WASHER,38.5mm ID x 50mm OD x 2mm Thk
|
ZED
|
| 20. |
300632
|
[8] |
SNAP RING,M38, External
|
ZED
Superseded by part number: 11068676
|
| 21. |
412687
|
[2] |
COTTER PIN,6.3mm OD x 32mm OAL
|
MOD
|
| 22. |
401502
|
[1] |
ANTI-SKID STRIP
|
ZED
L= 1.32 M
|
| 23. |
384927
|
[8] |
WASHER,20mm ID x 32mm OD x 4mm Thk
|
ZED
|
| 25. |
86977792
|
[2] |
SLOTTED PIN,5mm OD x 40mm L, Slotted
|
ZED
, Start Serial: D896
|
