纽荷兰零件查询(E805) - CRAWLER EXCAVATOR (1/05-) (08-077-10[01]) - COUNTERWEIGHT REMOVAL SYSTEM New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
689 次

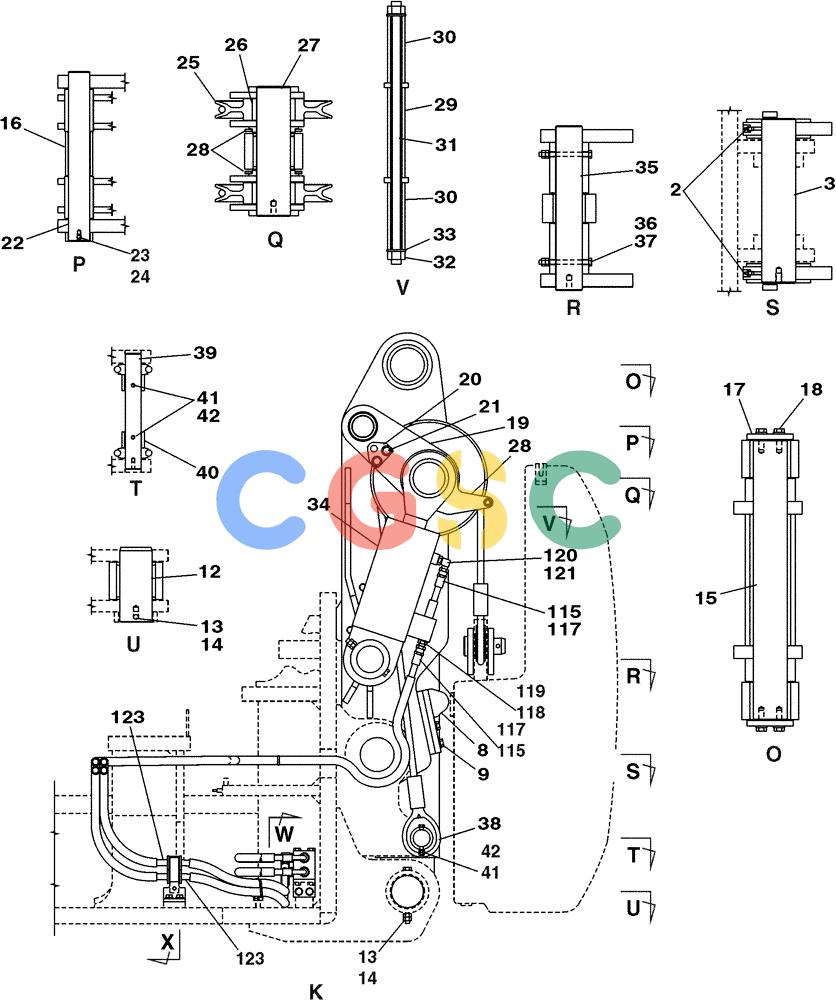

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 2. | 153630A1 | [2] | LUBE NIPPLE | SUM |
| 3. | KUB0173 | [1] | PIN | SUM |
| 8. | KUB0162 | [2] | PLATE | SUM |
| 9. | 166352A1 | [4] | BOLT | SUM |
| 12. | KUB0177 | [2] | PIN | SUM |
| 13. | 102R012Y150R | [2] | BOLT | SUM |
| 14. | 829-1412 | [4] | NUT,M12, Cl 10 | CAS Superseded by part number: 337475 |
| 15. | KUB0167 | [1] | PIN | SUM |
| 16. | KUB0179 | [1] | SPACER | SUM |
| 17. | KUB0168 | [2] | PLATE | SUM |
| 18. | 166348A1 | [4] | BOLT | SUM |
| 19. | KUB0158 | [2] | LINK | SUM |
| 20. | KUB0159 | [2] | PLATE | SUM |
| 21. | 152718A1 | [4] | BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9 | SUM |
| 22. | KUB0169 | [1] | PIN | SUM |
| 23. | 814-10100 | [1] | BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8 | CAS Superseded by part number: 120075 |
| 24. | 829-1410 | [2] | NUT,M10 x 1.5, Cl 10.9 | CAS Superseded by part number: 86500689 |
| 25. | KUB0165 | [2] | PULLEY | SUM |
| 26. | KUB0180 | [2] | BUSHING | SUM |
| 27. | KUB0166 | [1] | PIN | SUM |
| 28. | KUB0160 | [2] | PLATE | SUM |
| 29. | KUB0170 | [1] | SPACER | SUM |
| 30. | KUB0171 | [2] | SPACER | SUM |
| 31. | KUB0178 | [1] | ROD,THREADED | SUMROD, THREADED |
| 33. | 150811A1 | [2] | WASHER | SUMM12 Superseded by part number: 86625255 |
| 34. | KUB0156 | [1] | HYDRAULIC CYLINDER | SUM |
| 35. | KUB0190 | [1] | PIN | SUM |
| 36. | 102R012Y140R | [2] | BOLT | SUM |
| 38. | KUB0164 | [2] | WIRE ROPE | SUM |
| 39. | KUB0174 | [1] | PIN | SUM |
| 40. | KUB0176 | [2] | COLLAR | SUM |
| 41. | 102R008Y080R | [2] | BOLT | SUMM8 x 80; 10.9 |
| 42. | 829-1408 | [4] | NUT,Hex, M8 x 1.25, Cl 10.9 | CAS Superseded by part number: 43362, 87778059 |
| 115. | KHJ2286 | [2] | HYDRAULIC HOSE,9.50 mm ID x 3500.00 mm | SUM |
| 117. | 158065A1 | [2] | PLASTIC-RUBBER TUBE | SUM Superseded by part number: KHR21050 |
| 118. | 152128A1 | [1] | HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT | SUM |
| 119. | 154475A1 | [1] | O-RING | SUM |
| 120. | 150916A1 | [1] | ELBOW,90º, 3/8" O-Ring x 3/8" | SUM |
| 123. | KHJ1819 | [2] | HYDRAULIC HOSE | SUM |
