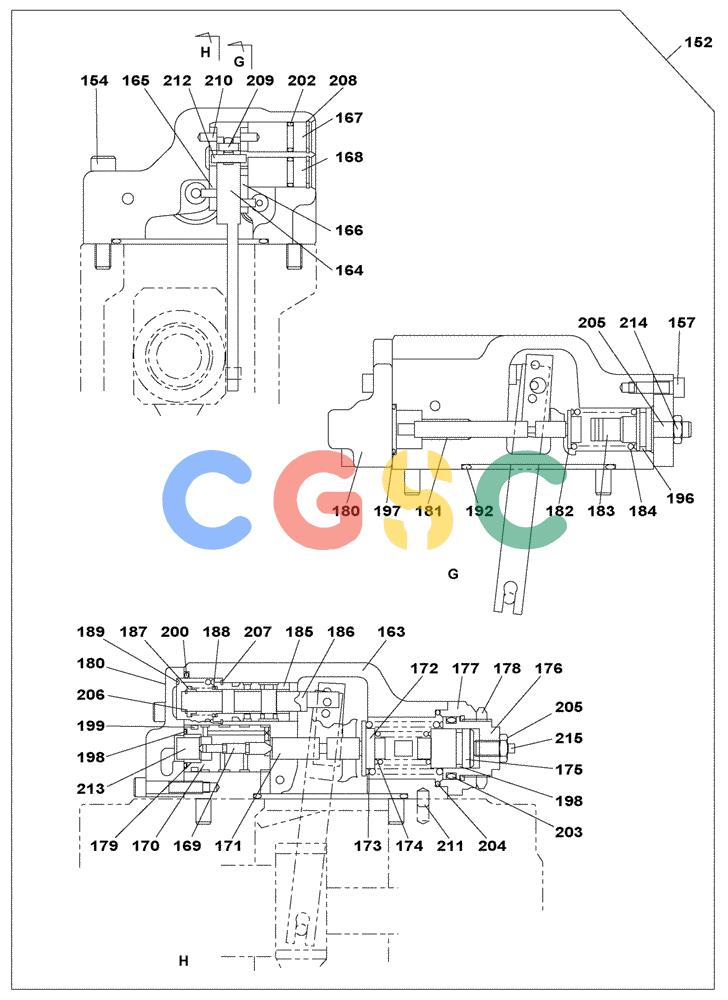

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR (1/05-) (08-079-03[01]) - HIGH PRESSURE HYDRAULIC PUMP - REGULATOR New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
622 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 152. | NSS | [1] | NOT SERVICED SEPARATELY | CON |
| 154. | 108R008Z050N | [2] | BOLT | SUM |
| 157. | 862-6020 | [6] | HEX SOC SCREW,M6 x 20mm, Cl 12.9 | CASM6 x 20; 12.9 |
| 178. | TUP0040 | [1] | SPECIAL NUT | SUM |
| 192. | 154681A1 | [1] | O-RING | SUM |
| 196. | 154487A1 | [1] | O-RING | SUM |
| 197. | 154499A1 | [1] | O-RING | SUM |
| 198. | 154483A1 | [2] | O-RING | SUM |
| 199. | 154491A1 | [1] | O-RING | SUM |
| 200. | 154509A1 | [1] | O-RING | SUM |
| 202. | 154467A1 | [11] | O-RING,10.8mm ID x 2.4mm Width | SUM |
| 203. | 154515A1 | [1] | O-RING | SUM |
| 204. | 154549A1 | [1] | O-RING | SUM |
| 205. | LA00065 | [2] | JAM NUT | SUM |
| 206. | 800-1110 | [1] | SNAP RING,M10, Ext | CAS Superseded by part number: 3991509 |
| 207. | LMM0597 | [1] | RING, SNAP | SUMSNAP RING |
| 208. | 800-2115 | [2] | SNAP RING,M15, Int | CAS Superseded by part number: 11057376 |
| 214. | LA00759 | [1] | BOLT,Hex Skt Hd | SUM |
| 215. | TUP0041 | [1] | SET SCREW | SUM |
