神钢零件查询(ED150-1E) - BLADE RUNNER EXCAVATOR/DOZER ASN YL05-00555 (11/03-12/04) (01-014) - TANK ASSY, HYD Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
847 次

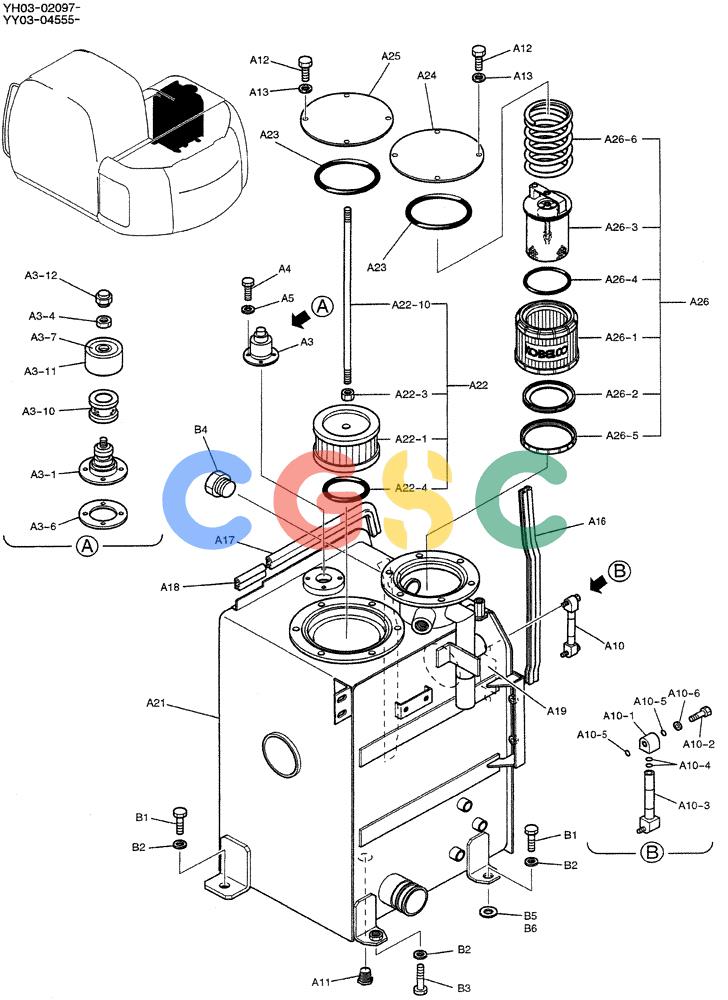

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YY33H00013F5 | [1] | TANK | KOBASSY, HYD |
| A3. | YN57V00002F4 | [1] | BREATHER ASSY. | KOB Superseded by part number: YN57V00010F1 |
| A3-1. | 2446U260S1 | [1] | BODY | KOB |
| A3-4. | 2446U260S5 | [1] | NUT | KOB |
| A3-6. | 2446U260S8 | [1] | PACKING | KOB |
| A3-7. | YN57V00002S007 | [1] | IDENTITY PLATE | KOBPlate, Caution |
| A3-10. | YN57V00002S010 | [1] | ELEMENT | KOB Superseded by part number: 47640920 |
| A3-11. | YN57V00002S011 | [1] | COVER | KOB |
| A3-12. | YN57V00002S012 | [1] | CAP | KOB |
| A4. | ZS28C06016 | [4] | SCREW,Hex Socket Head, M6 x 16mm | KOBM06x1.0x16mm |
| A5. | ZW26K06000 | [4] | LOCK WASHER | KOBID 06 x OD 11 x Th 1.5mm |
| A10. | YN58S00009F1 | [1] | GAUGE | KOBASSY, LEVEL |
| A10-1. | NSS | [2] | NOT SOLD SEPARAT | CONBLOCK |
| A10-2. | NSS | [2] | NOT SOLD SEPARAT | CONCapscrew M10x1.50x34mm |
| A10-3. | NSS | [1] | NOT SOLD SEPARAT | CONGAUGE |
| A10-4. | NSS | [4] | NOT SOLD SEPARAT | CONO-RING |
| A10-5. | NSS | [4] | NOT SOLD SEPARAT | CONO-RING |
| A10-6. | NSS | [2] | NOT SOLD SEPARAT | CONWASHER |
| A11. | ZE72X08000 | [1] | PLUG | KOB1/2" PF, (Incls. O-Ring ZD12P01800) |
| A12. | ZS18C10020 | [8] | SCREW,Hex, M10 x 20mm | KOBM10x1.50x20mm |
| A13. | ZW16H10000 | [8] | WASHER | KOBID 11 x OD 24 x Th 3.2mm |
| A16. | YT21C01163D9 | [1] | WEATHERSEAL STRIP | KOBSTRIP, WEATHER |
| A17. | YT21C01163D3 | [1] | WEATHERSTRIP | KOB |
| A18. | YA21C01036D4 | [1] | WEATHERSEAL STRIP | KOBSTRIP, WEATHER |
| A19. | YT33H01028P1 | [1] | LABEL | KOB Superseded by part number: YF33H01020P1 |
| A21. | YY33H00022P1 | [1] | TANK | KOB |
| A22. | YW50V00004FA | [1] | STRAINER ASSY. | KOBSUCTION |
| A22-1. | YN50V00002S001 | [1] | STRAINER ASSY. | KOB |
| A22-3. | ZN11C10008 | [1] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| A22-4. | NSS | [1] | NOT SOLD SEPARAT | CON |
| A22-10. | YW50V00004S010 | [1] | BOLT | KOB |
| A23. | ZD11G16500 | [2] | O-RING,164.30mm ID x 175.70mm OD x 5.70mm | KOBID 164.30 ± 1.30 x OD 175.7mm |
| A24. | YY33H01071P1 | [1] | COVER | KOB |
| A25. | YY33H01072P1 | [1] | COVER | KOB Superseded by part number: YY33H01104P1 |
| A26. | YV52V01001F1 | [1] | ELEMENT | KOB Superseded by part number: YV52V01003F5 |
| A26-1. | YN52V01011P1 | [1] | FILTER | KOBELEMENT Superseded by part number: YN52V01021P1 |
| A26-2. | YN52V01008S002 | [1] | PLATE | KOB |
| A26-3. | YV21V00001P1 | [1] | CHECK VALVE | KOB |
| A26-4. | ZD11G09000 | [1] | O-RING,89.40mm ID x 95.60mm OD x 3.10mm | KOBID 89.40 ± 0.77 x OD 95mm |
| A26-5. | YN52V01008S005 | [1] | PACKING | KOB |
| A26-6. | LC33H01009P1 | [1] | SPRING | KOB |
| . . | YV52V01001R100 | [1] | ELEMENT | KOBKIT INCLUDES ITEM OF A23, A26-1, A26-4 & A26-5 Superseded by part number: YV52V01003R110 |
| . . | YY33H00007F1 | [1] | TANK | KOBINSTAL, HYD (NIBBLER & BREAKER) |
| . . | YY33H00007F2 | [1] | TANK | KOBINSTAL, HYD (STD) |
| B1. | ZS18C16035 | [3] | SCREW,Hex, M16 x 35mm | KOBM16x2.0x35mm |
| B2. | ZW16H16000 | [4] | WASHER | KOBID 17 x OD 32 x Th 4.5mm |
| B3. | HS18C16140G1 | [1] | SCREW | KOBM16x2.0x140mm Superseded by part number: HS18C16140G2 |
| B4. | ZE72X16000 | [1] | PLUG | KOB(Incls. O-Ring ZD12P02900) (F2 Only) |
| B5. | LE33H01017D1 | [1] | SHIM,1.0mm Thk | KOB(1.0) |
| B6. | LE33H01017D2 | [1] | SHIM | KOB(0.5) |
