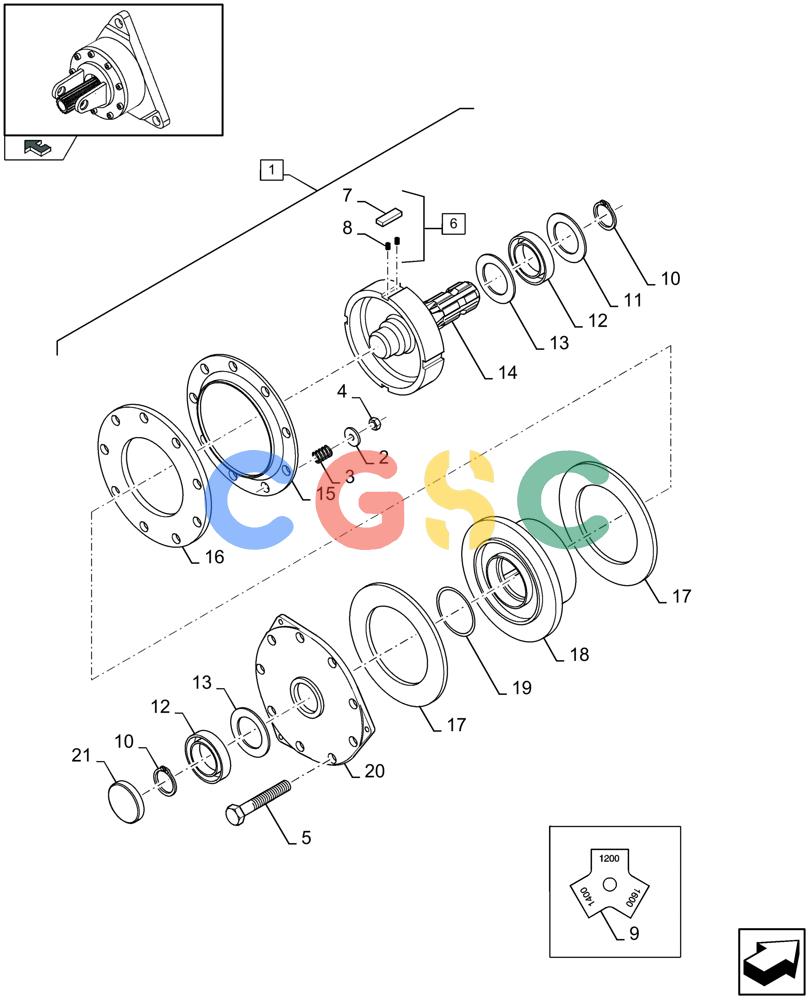

凯斯零件查询(LB333R) - BIG RECTANGULAR BALER 'ROTOR CUTTER' (9/08-12/12) (01.05[01]) - FLYWHEEL, SLIP CLUTCH Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
580 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87750038
|
[1] |
CLUTCH
|
ZED
(1 to 21)
|
| 1. |
87598380
|
[1] |
CLUTCH
|
ZED
(1 to 21)
|
| 2. |
9839232
|
[9] |
WASHER,13mm ID x 32mm OD x 4mm Thk
|
ZED
|
| 3. |
84819078
|
[9] |
SPRING
|
ZED
|
| 4. |
84819074
|
[9] |
NUT
|
ZED
|
| 5. |
328048
|
[9] |
BOLT,M12 x 1.75 x 147.68mm OAL, Cl 8.8
|
NH
|
| 6. |
87621016
|
[6] |
KEY
|
ZED
1 Key and 3 Springs, (7, 8)
|
| 7. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
|
| 9. |
87750839
|
[1] |
PLATE
|
ZED
|
| 9. |
84790385
|
[1] |
PLATE
|
ZED
|
| 10. |
87621017
|
[2] |
CIRCLIP
|
ZED
|
| 11. |
87621018
|
[1] |
RING
|
ZED
|
| 12. |
87621019
|
[2] |
BALL BEARING,45mm ID x 75mm OD x 16mm W
|
ZED
Superseded by part number: 84356152
|
| 13. |
87621020
|
[2] |
WASHER
|
ZED
|
| 14. |
87750840
|
[1] |
HUB
|
ZED
|
| 14. |
87621021
|
[1] |
HUB
|
ZED
|
| 15. |
87750841
|
[1] |
FLANGE
|
ZED
|
| 15. |
84819066
|
[1] |
FLANGE
|
ZED
|
| 16. |
87750842
|
[1] |
CLUTCH DRIVING PLATE
|
ZED
|
| 16. |
84819065
|
[1] |
CLUTCH PLATE
|
ZED
|
| 17. |
87750843
|
[2] |
CLUTCH PLATE,Friction
|
ZED
|
| 17. |
84819064
|
[2] |
CLUTCH LINING
|
ZED
|
| 18. |
87750844
|
[1] |
HUB
|
ZED
|
| 18. |
87621022
|
[1] |
HUB
|
ZED
|
| 19. |
87621023
|
[1] |
RING
|
ZED
|
| 20. |
87750845
|
[1] |
COVER
|
ZED
|
| 20. |
87621024
|
[1] |
FLANGE
|
ZED
|
| 21. |
87621025
|
[1] |
SHIELD
|
ZED
|
