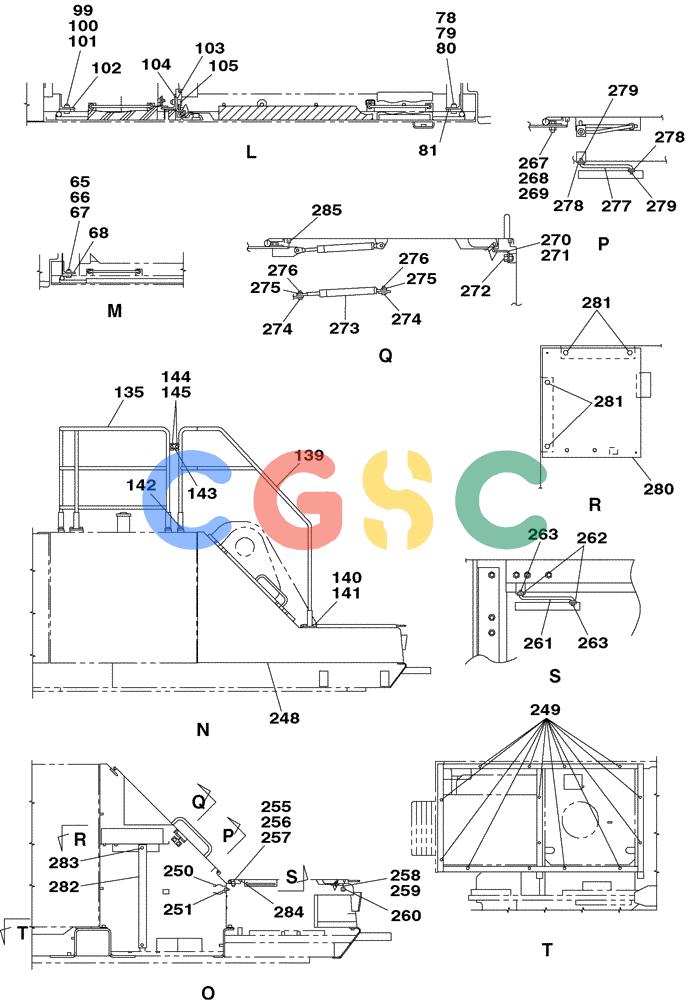

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR (1/05-) (09-021-00[01]) - COWLING New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
684 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 65. | 627-12040 | [4] | BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd | CAS Superseded by part number: 337563 |
| 66. | 150811A1 | [4] | WASHER | SUMM12 Superseded by part number: 86625255 |
| 67. | 162R012VR | [4] | NUT | SUMM12 |
| 68. | 163765A1 | [1] | ADJUSTING PLATE | SUM |
| 103. | 162449A1 | [1] | BRACKET | SUM |
| 104. | 151685A1 | [1] | BLOCK | CAS |
| 105. | 166352A1 | [2] | BOLT | SUM |
| 135. | KUN0264B1 | [1] | GRAB RAIL | SUM |
| 139. | KUN0263B1 | [1] | GRAB RAIL | SUM |
| 140. | 627-12035 | [2] | BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd | CAS Superseded by part number: 626-12035 |
| 142. | 152718A1 | [2] | BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9 | SUM |
| 143. | KUN0245 | [1] | PLATE | SUM |
| 248. | KUN0237 | [1] | COVER | SUM |
| 250. | 152772A1 | [2] | HOLDER | SUM |
| 251. | 166351A1 | [4] | BOLT,Sems, M10 x 20mm | SUM |
| 255. | 627-12030 | [4] | BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd | IH Superseded by part number: 43260 |
| 258. | 159114A1 | [1] | BRACKET | SUM |
| 259. | 159115A1 | [1] | ADJUSTING PLATE | SUM |
| 261. | 159119A1 | [1] | STAY | SUM |
| 262. | 895-11010 | [2] | WASHER,11mm ID x 20mm OD x 2mm Thk | CAS Superseded by part number: 14496621 |
| 263. | 153181A1 | [2] | COTTER PIN | SUM |
| 273. | KSN1053 | [1] | DAMPER | SUM |
| 274. | 705S008A0025 | [2] | HEADED PIN | SUM |
| 275. | 895-11008 | [2] | WASHER,M8 x 16 x 1.6 | CAS9 x 17 x 1,6 mm Superseded by part number: 86624184 |
| 276. | 153077A1 | [2] | COTTER PIN | SUM |
| 280. | KUN0273 | [1] | BOX | SUM |
| 282. | KUN0266 | [1] | STAY | SUM |
| 283. | 166052A1 | [2] | BOLT | SUM Superseded by part number: 11106231 |
| 285. | KUN0015 | [1] | SEAL, RUBBER | SUMRUBBER SEAL |
