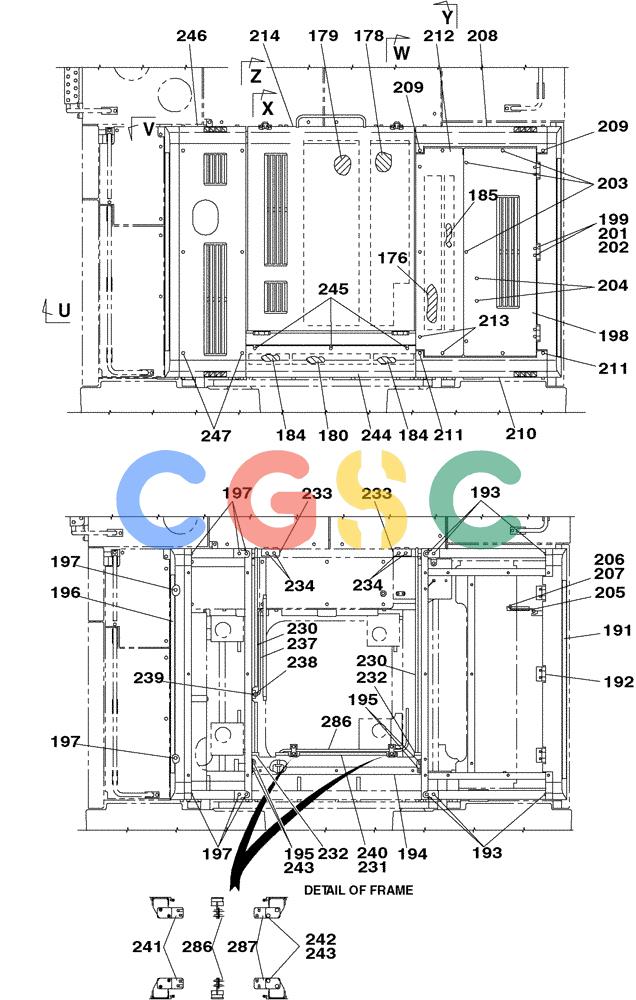

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR (1/05-) (09-025-00[01]) - COWLING New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
279 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 176. | KUN0360 | [1] | INSULATOR | SUM |
| 178. | KUN0344 | [1] | INSULATOR | SUM |
| 179. | KUN0363 | [1] | INSULATOR | SUM |
| 180. | KUN0364 | [1] | INSULATOR | SUM |
| 184. | KUN0375 | [2] | INSULATOR | SUM |
| 185. | KUN0376 | [1] | INSULATOR | SUM |
| 191. | KUN0390 | [1] | HOOD ASSY. | SUM Superseded by part number: KUN0416 |
| 192. | 151104A1 | [3] | HINGE | SUM |
| 193. | 166352A1 | [6] | BOLT | SUM |
| 194. | KUN0393 | [1] | HOOD ASSY. | SUM |
| 195. | 627-12040 | [4] | BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd | CAS Superseded by part number: 337563 |
| 196. | KUN0394 | [1] | HOOD ASSY. | SUM Superseded by part number: KUN0418 |
| 198. | KUN0309 | [1] | HOOD ASSY. | SUM Superseded by part number: KUN0412 |
| 199. | 627-10030 | [6] | BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd | CAS Superseded by part number: 9515003 |
| 201. | 150409A1 | [6] | WASHER | SUM10,5 x 21 x 3,2 mm |
| 202. | 162R010VR | [6] | NUT | SUM Superseded by part number: 86500689 |
| 205. | 159119A1 | [1] | STAY | SUM |
| 206. | 153181A1 | [2] | COTTER PIN | SUM |
| 207. | 895-11010 | [2] | WASHER,11mm ID x 20mm OD x 2mm Thk | CAS Superseded by part number: 14496621 |
| 208. | KUN0311 | [1] | HOOD ASSY. | SUM Superseded by part number: KUN0413 |
| 210. | KUN0324 | [1] | HOOD ASSY. | SUM Superseded by part number: KUN0415 |
| 212. | KUN0314 | [1] | HOOD ASSY. | SUM |
| 214. | KUN0392 | [1] | HOOD ASSY. | SUM Superseded by part number: KUN0417 |
| 230. | KUN0368 | [2] | GASKET | SUM |
| 231. | KUN0371 | [1] | GASKET | SUM |
| 232. | KUN0372 | [2] | GASKET | SUM |
| 233. | KUN0323 | [2] | BRACKET | SUM |
| 237. | KUN0391 | [1] | STAY | SUM |
| 238. | 896-12012 | [1] | WASHER,13.5mm ID x 24mm OD x 3mm Thk | CAS Superseded by part number: 87016609 |
| 239. | 160762A1 | [1] | COTTER PIN | SUM |
| 240. | KUN0397 | [1] | TORSION SPRING | SUM |
| 241. | KUN0395 | [2] | BRACKET | SUM |
| 243. | 150811A1 | [8] | WASHER | SUMM12 Superseded by part number: 86625255 |
| 244. | KUN0400 | [1] | HOOD ASSY. | SUM |
| 246. | KUN0313 | [1] | HOOD ASSY. | SUM Superseded by part number: KUN0414 |
| 286. | KUN0398 | [1] | TORSION SPRING | SUM |
| 287. | KUN0396 | [2] | BRACKET | SUM |
