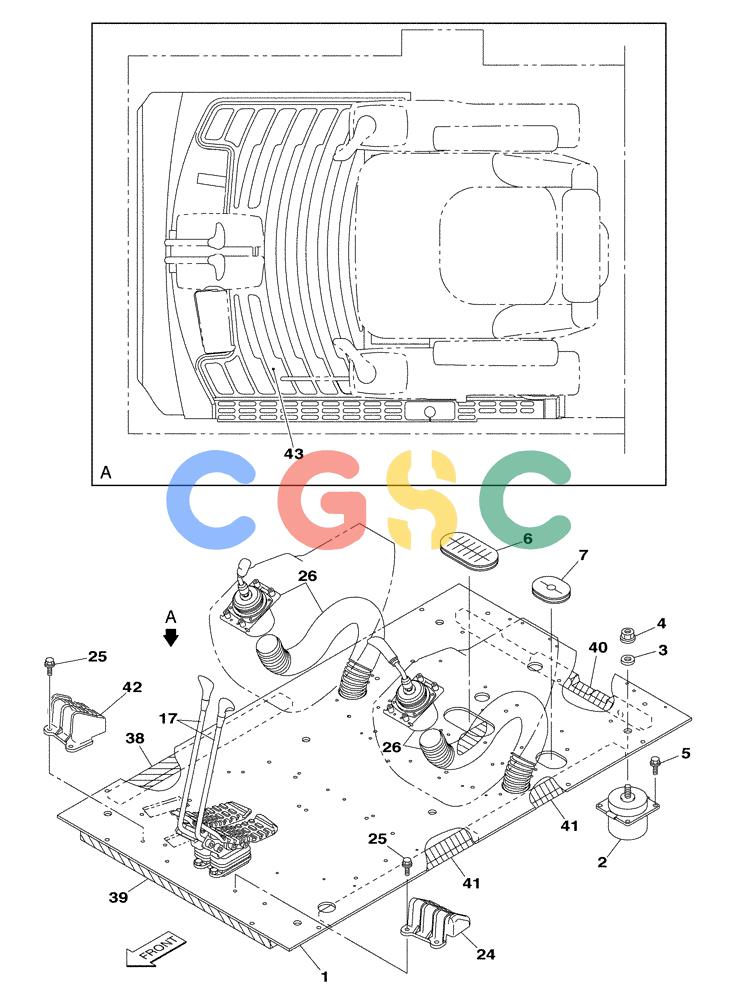

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR (1/05-) (09-033-00[01]) - MAT, FLOOR - OPERATORS COMPARTMENT New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
362 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | KHJ1825 | [1] | CAB FLOOR | SUM |
| 2. | KHJ1471 | [6] | INSULATOR BLOCK | SUM |
| 3. | 150714A1 | [6] | WASHER | SUM |
| 4. | 150760A1 | [6] | NUT | SUM |
| 5. | 166052A1 | [24] | BOLT | SUM Superseded by part number: 11106231 |
| 6. | KHJ1375 | [1] | GROMMET | SUM |
| 7. | KHJ1484 | [1] | GROMMET | SUM |
| 24. | KHJ1636 | [1] | FOOT REST | SUM |
| 25A. | 896-11010 | [4] | WASHER,11mm ID x 21mm OD x 2.5mm Thk | CAS Superseded by part number: 86625252 |
| 38. | KHJ1732 | [1] | SEAL | SUM |
| 39. | KHJ1733 | [1] | SEAL | SUM |
| 40. | KHJ1734 | [1] | SEAL | SUM |
| 41. | KHJ1735 | [2] | SEAL | SUM |
| 42. | KHJ1638 | [1] | FOOT REST | SUM |
| 43. | KHJ1611 | [1] | FLOOR MAT | SUM |
