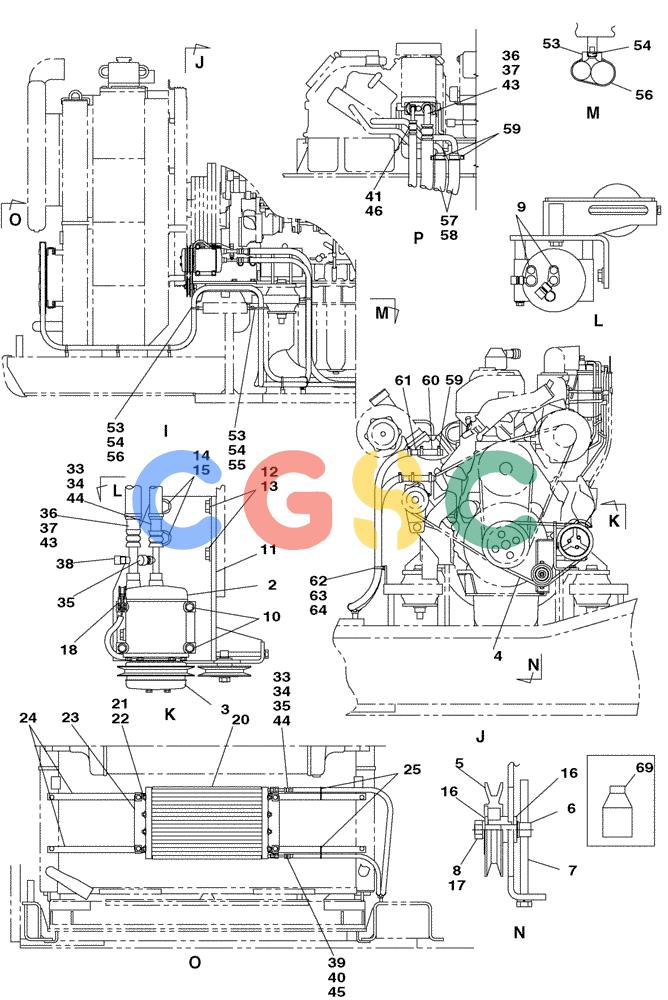

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR (1/05-) (09-083-00[01]) - AIR CONDITIONING - UPPERSTRUCTURE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
385 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | KHR3294 | [1] | AIR CONDITIONER | SUM |
| 2. | KHR3197 | [1] | COMPRESSOR | SUM |
| 3. | KHR3198 | [1] | CLUTCH | SUM |
| 4. | KHR3089 | [1] | BELT | SUM |
| 5. | 157296A1 | [1] | PULLEY | SUM Superseded by part number: KHR11760 |
| 6. | 157299A1 | [1] | SHAFT | SUM |
| 7. | 159644A1 | [1] | BOLT | SUM |
| 8. | 157292A1 | [1] | NUT | SUMM10 |
| 9. | 162457A1 | [2] | SPECIAL BOLT,Spcl | SUM |
| 10. | KAR0921 | [4] | BOLT,Spcl | SUM |
| 11. | KUR0069 | [1] | BRACKET | SUM |
| 12. | 627-12040 | [2] | BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd | CAS Superseded by part number: 337563 |
| 13. | 150811A1 | [2] | WASHER | SUMM12 Superseded by part number: 86625255 |
| 14. | 153911A1 | [2] | BOLT | SUM |
| 15. | 150418A1 | [2] | WASHER | SUM |
| 16. | 151977A1 | [2] | WASHER | SUM |
| 17. | 140028 | [1] | WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk | NH |
| 18. | 158962A1 | [1] | CLIP | SUM |
| 19. | KHR2553 | [1] | AIR CONDITIONER | SUM |
| 20. | KHR2592 | [1] | CONDENSER | SUM |
| 21. | KHR2593 | [8] | BRACKET | SUM |
| 22. | 166052A1 | [8] | BOLT | SUM Superseded by part number: 11106231 |
| 23. | KNR0615 | [2] | PLATE | SUM |
| 24. | KUR0070 | [2] | BRACKET | SUM |
| 25. | 150496A1 | [1] | MOUNTING CLIP | SUM |
| 32. | KUR0068 | [1] | AIR CONDITIONER | SUM |
| 33. | KHR3295 | [1] | HOSE | SUM |
| 34. | 169053A1 | [2] | O-RING | CAS |
| 35. | KHR3053 | [1] | CAP | SUM |
| 36. | KHR3296 | [1] | HOSE | SUM |
| 37. | 169052A1 | [2] | O-RING | CAS |
| 38. | KHR3054 | [1] | CAP | SUM |
| 39. | KHR3297 | [1] | HOSE | SUM |
| 40. | 169054A1 | [2] | O-RING | CAS |
| 41. | KHR3298 | [1] | HOSE | SUM |
| 43. | KBR0721 | [1] | PLASTIC-RUBBER TUBE | SUM Superseded by part number: KHR21070 |
| 44. | 162933A1 | [1] | PLASTIC-RUBBER TUBE | SUM Superseded by part number: KHR21050 |
| 45. | 168367A1 | [1] | PLASTIC-RUBBER TUBE | SUM Superseded by part number: KHH12760 |
| 46. | 151563A1 | [1] | PLASTIC-RUBBER TUBE | SUM3800 mm (149-5/8 in) Superseded by part number: KHH12760 |
| 53. | 150860A1 | [14] | COLLAR | SUM |
| 54. | 145N006S008R | [14] | SCREW,Pan Hd, M6 x 8mm, Cl 10.9 | SUM |
| 55. | 150071A1 | [1] | MOUNTING CLIP | SUM |
| 57. | 157520A1 | [2] | HOSE,13 mm ID x 6500.00 mm | SUM |
| 58. | 157925A1 | [2] | PLASTIC-RUBBER TUBE | SUM Superseded by part number: KHR21060 |
| 59. | KRJ1062 | [8] | COLLAR | SUM Superseded by part number: 157915A1 |
| 60. | KHR0425 | [2] | HOSE | SUM |
| 61. | KAR0215 | [2] | NIPPLE, LUBE | SUM |
| 69. | NSS | [1] | NOT SERVICED SEPARATELY | CON |
