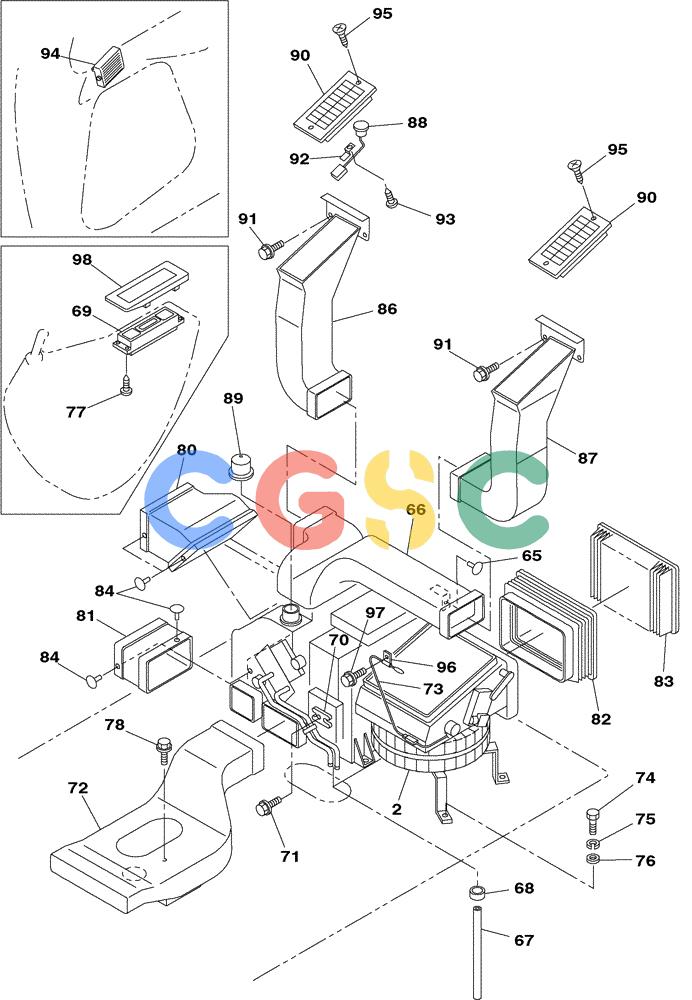

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR (1/05-) (09-087-00[01]) - AIR CONDITIONING - OPERATORS COMPARTMENT New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
853 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 2. | KHR4135 | [1] | AIR CONDITIONER | SUM |
| 67. | KHR3574 | [2] | HOSE | SUM |
| 68. | 159622A1 | [2] | MOUNTING CLIP | SUM |
| 69. | KHR2758 | [1] | CLUSTER, INSTR. | SUM |
| 70. | KHR2759 | [1] | NUT | SUM |
| 71. | KHR2464 | [1] | BOLT | SUM |
| 72. | KHR2760 | [1] | DUCT | SUM |
| 73. | KHR2762 | [1] | SENSOR | SUM |
| 74. | 627-10016 | [6] | BOLT,Hex, M10 x 1.5 x 16mm, Cl 10.9, Full Thd | CAS Superseded by part number: 87547661 |
| 75. | 140028 | [6] | WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk | NH |
| 76. | 895-11010 | [6] | WASHER,11mm ID x 20mm OD x 2mm Thk | CAS Superseded by part number: 14496621 |
| 77. | KHR2737 | [4] | SELF-TAP SCREW | SUM |
| 78. | 167320A1 | [1] | BOLT,Spcl, M8 x 20mm | SUM |
| 80. | KHR2766 | [1] | DUCT | SUM |
| 81. | KHR2769 | [1] | DUCT | SUM |
| 82. | KHR2770 | [1] | DUCT | SUM |
| 83. | KHR2772 | [1] | CAB FILTER | SUM Superseded by part number: MMR80010 |
| 84. | KHR2986 | [4] | DOWEL | SUM |
| 86. | KHR2775 | [1] | AIR DUCT | SUM |
| 87. | KHR2776 | [1] | AIR DUCT | SUM |
| 88. | KHR2777 | [1] | SENSOR | SUM |
| 89. | KHR3328 | [1] | CAP | SUM |
| 90. | 167096A1 | [2] | DIFFUSER | SUM |
| 92. | 165405A1 | [1] | CLIP | SUM |
| 93. | KHR3016 | [1] | SELF-TAP SCREW | SUM |
| 94. | KHR2517 | [1] | DIFFUSER | SUM |
| 95. | KHR2946 | [4] | SCREW | SUM |
| 96. | 157803A1 | [1] | COLLAR CLAMP | SUM |
| 97. | 159602A1 | [1] | BOLT,Sems, Hex, M6 x 16mm | SUM |
| 98. | KHN2290 | [1] | BELLOWS | SUM |
