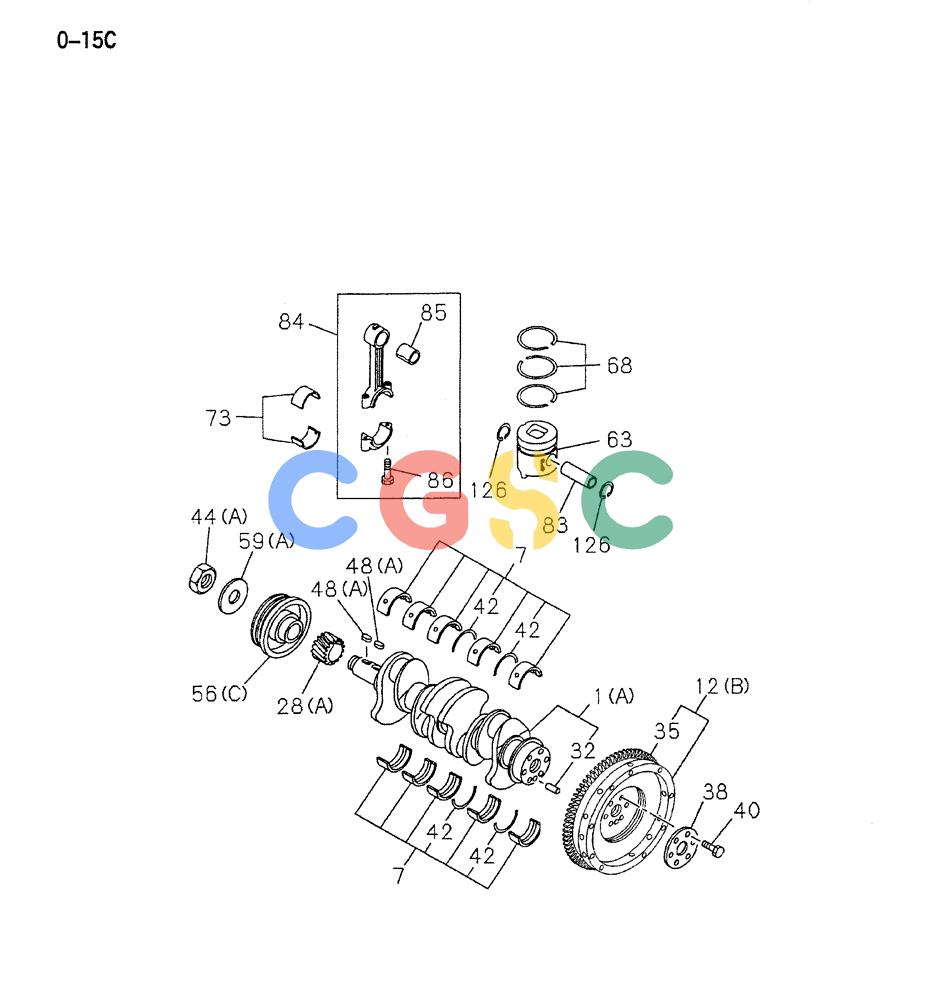

神钢零件查询(ED150-1E) - BLADE RUNNER EXCAVATOR/DOZER ASN YL05-00555 (11/03-12/04) (10-007) - CRANKSHAFT, PISTON AND FLYWHEEL Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
812 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | NSS | [1] | NOT SOLD SEPARAT | CONCRANKSHAFT, PISTON AND FLYWHEEL |
| 1(A). | VI8943398951 | [1] | CRANKSHAFT | KOB Superseded by part number: VI8973581441 |
| 7. | VI8970716610 | [1] | KIT | KOBMETAL, CRANKSHAFT, STANDARD |
| 12(B). | VI8944067545 | [1] | FLYWHEEL | KOB |
| 28(A). | VI8971379101 | [1] | DRIVEN GEAR | KOBGEAR, CR/SHF (Z=25) Superseded by part number: 289745A1 |
| 32. | VI9081612200 | [1] | PIN | KOBFLYWHEEL |
| 35. | VI8971759020 | [1] | RING GEAR | KOB |
| 38. | VI5123360030 | [1] | WASHER | KOBFLYWHEEL |
| 40. | VI5123340030 | [6] | BOLT | KOBFLYWHEEL |
| 42. | VI8970713580 | [2] | WASHER | KOBTHRUST, CR/SHF |
| 44(A). | VI5123780020 | [1] | NUT | KOBCR/SHF FRT Superseded by part number: 289462A1 |
| 48(A). | VI8941075970 | [2] | KEY | KOBWOODRUFF, CR/SHF |
| 56(C). | VI8973640380 | [1] | PULLEY | KOBCR/SHF DAMPER (3-GROOVE) |
| 59(A). | VI5095030240 | [1] | WASHER | KOBCR/SHF PULLEY |
| 63. | VI8973585740 | [4] | PISTON | KOB(GRADE=AX) |
| 63. | VI8973585750 | [4] | PISTON | KOB(GRADE=CX) |
| 68. | VI1121211460 | [4] | PISTON RING | KOBSET, STANDARD |
| 73. | VI9122716080 | [4] | CONNECTION | KOBMETAL SET, CONNROD, STANDARD |
| 83. | VI1122110332 | [4] | PISTON PIN | KOBPIN, PISTON |
| 84. | VI1122301291 | [4] | ROD ASSY. | KOBCONN Superseded by part number: VI1122301292 |
| 85. | VI1122510320 | [4] | BUSHING | KOBCONNROD |
| 86. | VI1122350271 | [8] | BOLT | KOBCONNROD |
| 126. | VI8941075751 | [8] | RING | KOBSNAP, PISTON PIN |
