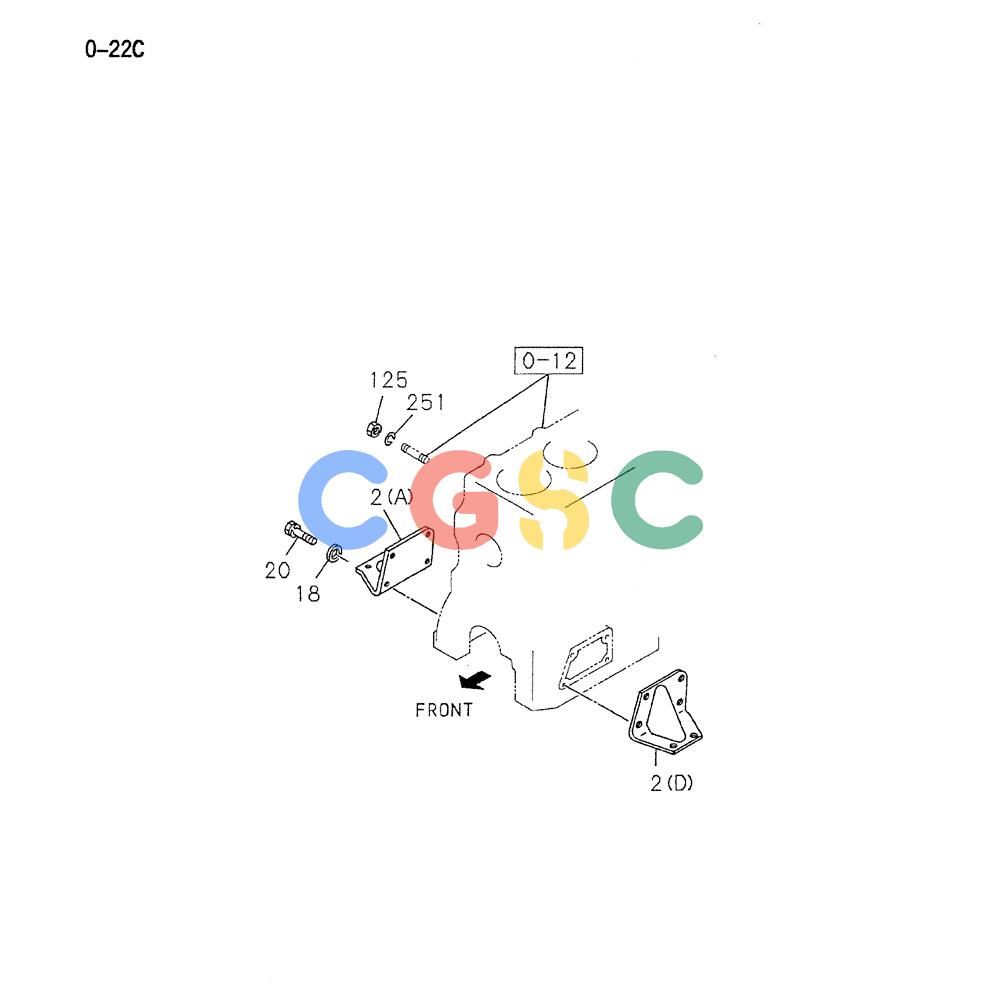

神钢零件查询(ED150-1E) - BLADE RUNNER EXCAVATOR/DOZER ASN YL05-00555 (11/03-12/04) (10-009) - ENGINE MOUNTING Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
577 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | NSS | [1] | NOT SOLD SEPARAT | CONENGINE MOUNTING |
| 2(A). | VI8972045020 | [1] | FOOT | KOBENG FRT |
| 2(D). | VI8972045010 | [1] | FOOT | KOBENG FRT |
| 18. | VI9096511160 | [7] | WASHER | KOBPL, ENG FOOT |
| 20. | VI9020610250 | [7] | BOLT | KOBENG FOOT (M1 0X25) |
| 125. | VI9091105100 | [1] | NUT | KOBENG FOOT |
| 251. | VI9091505100 | [1] | WASHER | KOBLK, ENG FOOT Superseded by part number: VI1099853450 |
