神钢零件查询(ED150-1E) - BLADE RUNNER EXCAVATOR/DOZER ASN YL05-00555 (11/03-12/04) (10-022) - OIL COOLER AND OIL FILTER Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
281 次

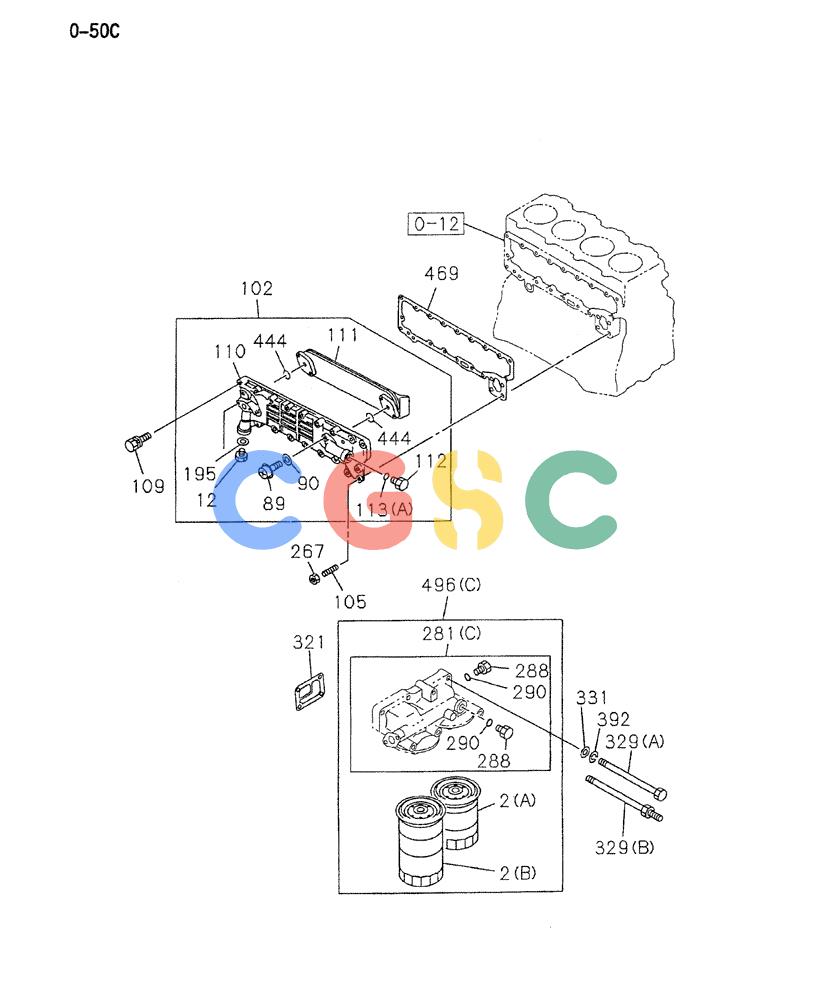

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | NSS | [1] | NOT SOLD SEPARAT | CONOIL COOLER AND OIL FILTER |
| 2(A). | VI8941609641 | [1] | ELEMENT | KOBOIL FILTER Superseded by part number: 2451U309-1 |
| 2(B). | VI8970261342 | [1] | FILTER | KOBELEMENT, OIL Superseded by part number: 84160436 |
| 12. | VI5112880020 | [1] | VALVE | KOBASM, BYPASS |
| 89. | VI0280808160 | [4] | BOLT, ELEMENT TO CASE (M8X10 FLANGE) | |
| 90. | VI1217290430 | [4] | GASKET | KOBBOLT, OIL COOLER |
| 102. | VI8970200372 | [1] | COOLER ASSY. | KOBOIL |
| 105. | VI8942172270 | [2] | STUD | KOBOIL COOLER |
| 109. | VI0500408250 | [11] | BOLT | KOBOIL COOLER TO BODY (M8X25 W/LK WASHER) Superseded by part number: VI0505408250 |
| 109. | VI0500408200 | [2] | BOLT | KOBOIL COOLER TO BODY (M8X20 W/LK WASHER) Superseded by part number: VI0507408200 |
| 109. | VI8942059861 | [1] | BOLT | KOBOIL COOLER TO BODY (M8x65 W/LK WASHER) |
| 109. | VI0500408450 | [6] | BOLT | KOBOIL COOLER TO BODY (M8X65 W/LK WASHER) |
| 110. | VI8944496450 | [1] | OIL COOLER | KOBBODY, CASE Superseded by part number: VI8970200372 |
| 111. | VI8970320250 | [1] | CORE-OIL COOLER | KOB |
| 112. | VI8971281500 | [1] | PLUG | KOBOIL COOLER CASE |
| 113(A). | VI9095652250 | [1] | GASKET | KOBPLUG, OIL COOLER CASE |
| 195. | VI9095716200 | [1] | GASKET | KOBOIL COOLER |
| 267. | VI0911502080 | [2] | NUT | KOBOIL COOLER Superseded by part number: VI0911802080 |
| 281(C). | VI8970261332 | [1] | COVER | KOBOIL FILTER |
| 288. | VI9132630100 | [2] | PLUG | KOBOIL DRAIN |
| 290. | VI9099211930 | [2] | GASKET | KOBPLUG, OIL DRAIN Superseded by part number: VI9095622150 |
| 321. | VI8943706700 | [1] | PACKING | KOBGASKET, OIL FILTER TO C/BL |
| 329(A). | VI0280810400 | [1] | BOLT, OIL FILTER (M10X40 FLANGE) | |
| 329(A). | VI0280810700 | [1] | BOLT, OIL FILTER (Ml0X70 FLANGE) | |
| 329(A). | VI0280860130 | [3] | BOLT, OIL FILTER (M10X130) | |
| 329(B). | VI8944295250 | [2] | BOLT | KOBOIL FILTER (M10X135) |
| 331. | VI9091605100 | [2] | WASHER | KOBPL, FILTER Superseded by part number: VI0916105100 |
| 392. | VI9091505100 | [2] | WASHER | KOBLK Superseded by part number: VI1099853450 |
| 444. | VI5112820110 | [2] | GASKET | KOBELEMENT TO BODY |
| 469. | VI8972333022 | [1] | GASKET | KOBOIL COOLER TO C/BL Superseded by part number: VI8972333023 |
| 496(C). | VI8970209283 | [1] | FILTER | KOBASM, OIL |
