神钢零件查询(ED150-1E) - BLADE RUNNER EXCAVATOR/DOZER ASN YL05-00555 (11/03-12/04) (10-025) - ENGINE ELECTRICAL CONTROL PARTS Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
838 次

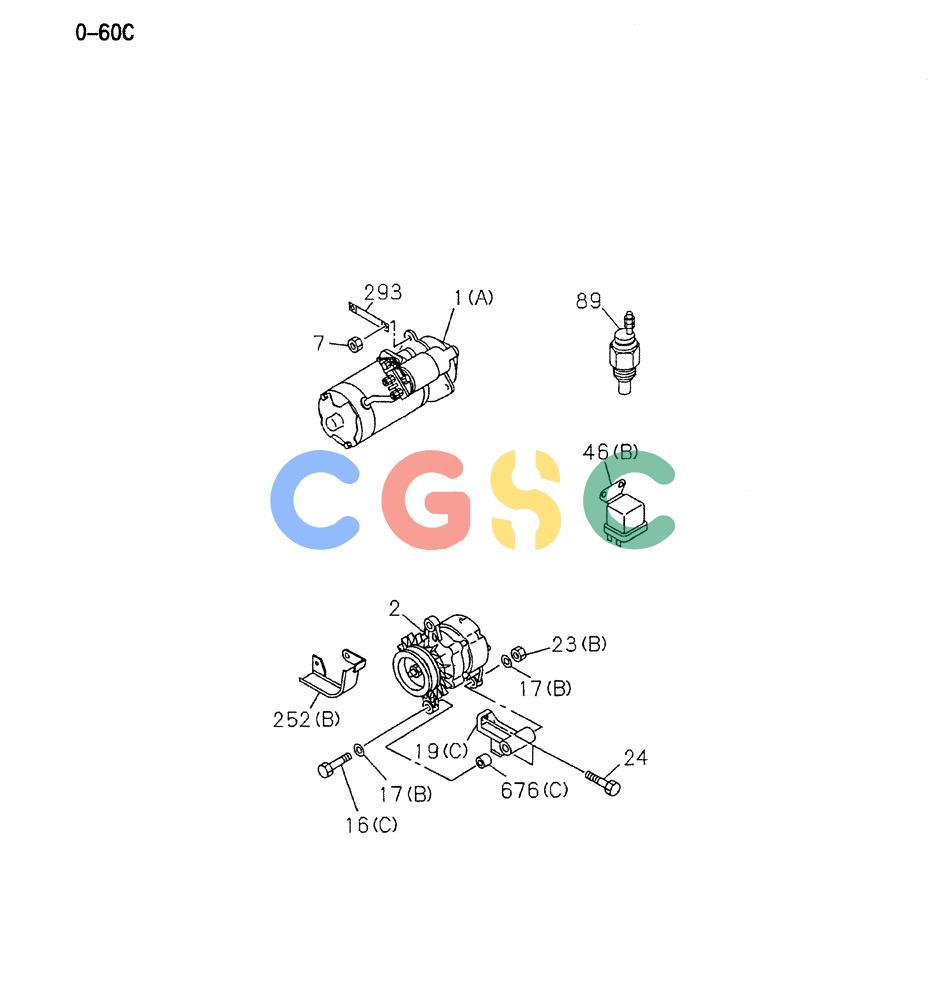

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | NSS | [1] | NOT SOLD SEPARAT | CONENGINE ELECTRICAL CONTROL PARTS |
| 1(A). | VI8970298636 | [1] | STARTING MOTOR | KOBASM (24V-4.5KW NIKKO) Superseded by part number: 289709A1 |
| 2. | VI1812005303 | [1] | GENERATOR | KOBASM (24V-50A MITSUBISHI) (SEE FIG.10-026) Superseded by part number: VI1812005306 |
| 7. | VI0911502120 | [2] | NUT, STARTER | |
| 16(C). | VI1090001331 | [1] | BOLT | KOBGEN (M14X135) |
| 17(B). | VI9091605140 | [2] | WASHER | KOBPL, GEN (ID=14 OD=26 T=2.3) |
| 19(C). | VI8970324991 | [1] | BRACKET | KOBGEN |
| 23(B). | VI0911602140 | [1] | NUT, GEN | |
| 24. | VI0280810250 | [1] | BOLT, GEN BRKT (M10X25 FLANGE) | |
| 24. | VI0280810350 | [3] | BOLT, GEN BRKT (M10X35 FLANGE) | |
| 24. | VI0280810700 | [1] | BOLT, GEN BRKT (M10X70 FLANGE) | |
| 46(B). | VI8942580140 | [1] | RELAY | KOBGLOW PLUG Superseded by part number: VI8944233140 |
| 89. | VI8971256011 | [1] | SWITCH | KOBOVER HEAT WARNING Superseded by part number: 289737A1 |
| 252(B). | VI8972045270 | [1] | COVER | KOBGEN |
| 293. | VI8971805560 | [1] | CABLE | KOBSTARTER EARTH |
| 676(C). | VI8944749260 | [1] | SEPARATOR | KOBPIECE, DIST, GEN |
