纽荷兰零件查询(E805) - CRAWLER EXCAVATOR TIER 3 (7/06-) (02-003-00[01]) - EXHAUST New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
572 次

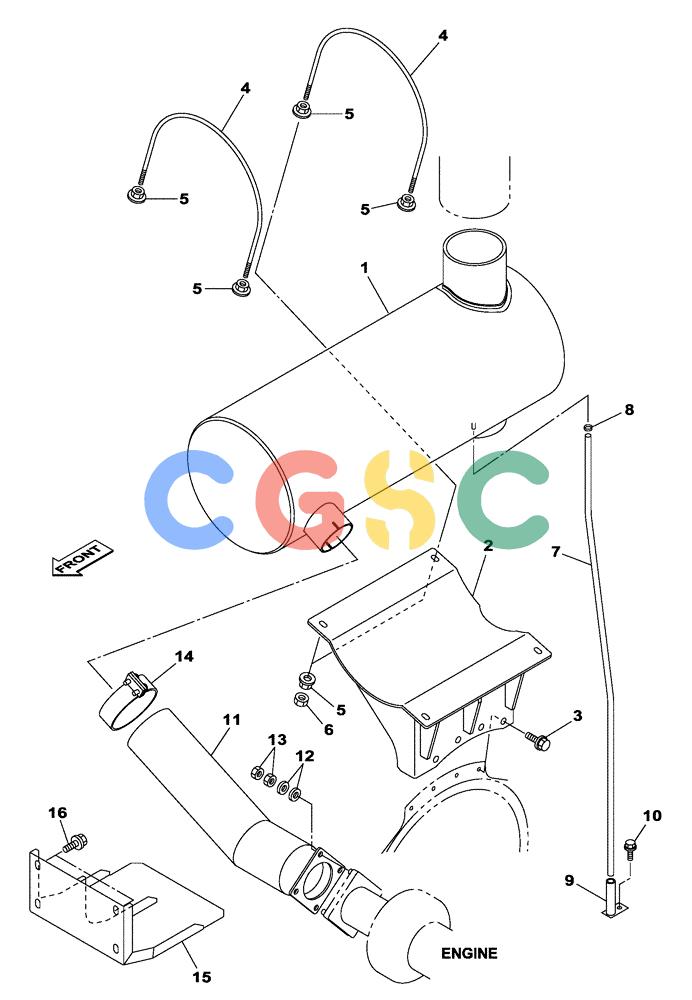

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | KWH0004 | [1] | MUFFLER | SUM Superseded by part number: KWH10240 |
| 2. | KWH0038 | [1] | SUPPORT | SUM |
| 3. | 166352A1 | [4] | BOLT | SUMM12 x 30 |
| 4. | KUH0185 | [2] | U-BOLT | SUM Superseded by part number: CAN0694, KHH11440, KHH11410 |
| 5. | 150472A1 | [8] | FLANGE NUT | SUMN M10 Superseded by part number: KHH11440 |
| 6. | 164R010VR | [4] | JAM NUT | SUMM10 Superseded by part number: CAN0694 |
| 7. | 157484A1 | [1] | LINER | SUM1200 mm |
| 8. | 165952A1 | [1] | MOUNTING CLIP | SUM |
| 9. | KRH1262 | [1] | GUIDE | SUM |
| 10. | 167182A1 | [1] | BOLT,Sems, M8 x 25mm | SUMM8 x 25 |
| 11. | KWH0037 | [1] | EXHAUST SYSTEM PIPE | SUM |
| 12. | 150811A1 | [8] | WASHER | SUMW 12 Superseded by part number: 86625255 |
| 13. | 174R012VR | [8] | JAM NUT | SUMM12 x 1.25 |
| 14. | KWH10080 | [1] | CLAMP | SUM |
| 15. | KUH10150 | [1] | COVER | SUM |
