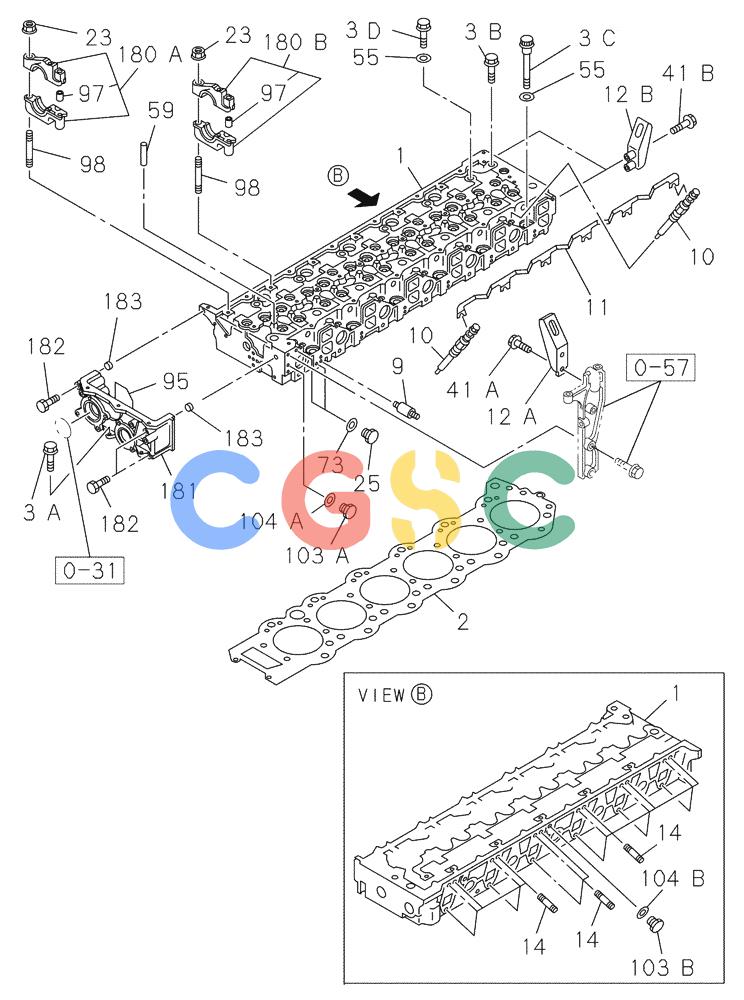

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87562027 | [1] | CYLINDER HEAD | ISU |
| 2. | 288543A1 | [1] | GASKET | ISU Superseded by part number: 76614954 |
| 3A. | 288544A1 | [2] | SPECIAL BOLT | ISUM10 x 35 Superseded by part number: 87577258 |
| 3B. | 288545A1 | [1] | SPECIAL BOLT | ISUM12 x 120 |
| 3C. | 288546A1 | [6] | SPECIAL BOLT | ISUM18 x 115 |
| 3D. | 288547A1 | [20] | SPECIAL BOLT | ISUM18 x 159 |
| 9. | 288554A1 | [12] | STUD | ISUM10 x 13 - M10 x 17 L65 |
| 10. | 288874A1 | [6] | GLOW PLUG | ISU |
| 11. | 87384344 | [1] | CONNECTOR, ELEC | ISUCONNECTOR |
| 12A. | 87384346 | [1] | HANGER | ISUFront |
| 12B. | 288558A1 | [2] | HANGER | ISURear |
| 14. | 87384348 | [15] | STUD | ISUM10 x 77 L92 |
| 14. | 87530746 | [3] | STUD | ISU |
| 23. | 288552A1 | [14] | FLANGE NUT | ISUM4 |
| 25. | 289998A1 | [2] | PLUG | ISUM14 x 9 |
| 41A. | 87384350 | [2] | BOLT | ISUM12 x 20 Superseded by part number: 84159873 |
| 41B. | 288559A1 | [4] | BOLT | ISUM12 x 50 |
| 59. | 288560A1 | [12] | WASHER | ISU |
| 57. | 87384353 | [6] | GUIDE | ISU |
| 73. | 288565A1 | [2] | GASKET | ISUID 14.2 - OD 1.2 Superseded by part number: 72110175 |
| 95. | 288566A1 | [1] | CYLINDER HEAD GASKET | ISU Superseded by part number: 72110176 |
| 97. | 288567A1 | [28] | DOWEL | ISUOD 16 |
| 98. | 288568A1 | [14] | STUD | ISUM12 x 120 |
| 103A. | 288569A1 | [1] | PLUG | ISUM10 x 7 |
| 104A. | 289092A1 | [1] | GASKET | ISUID 10.2 |
| 180A. | 87384355 | [1] | BRACKET | ISU |
| 180B. | 87384361 | [6] | BRACKET | ISU |
| 181. | 288574A1 | [1] | HOUSING | ISU |
| 182. | 288575A1 | [7] | BOLT | ISUM10 x 80 |
| 183. | 288576A1 | [2] | DOWEL | ISU |
