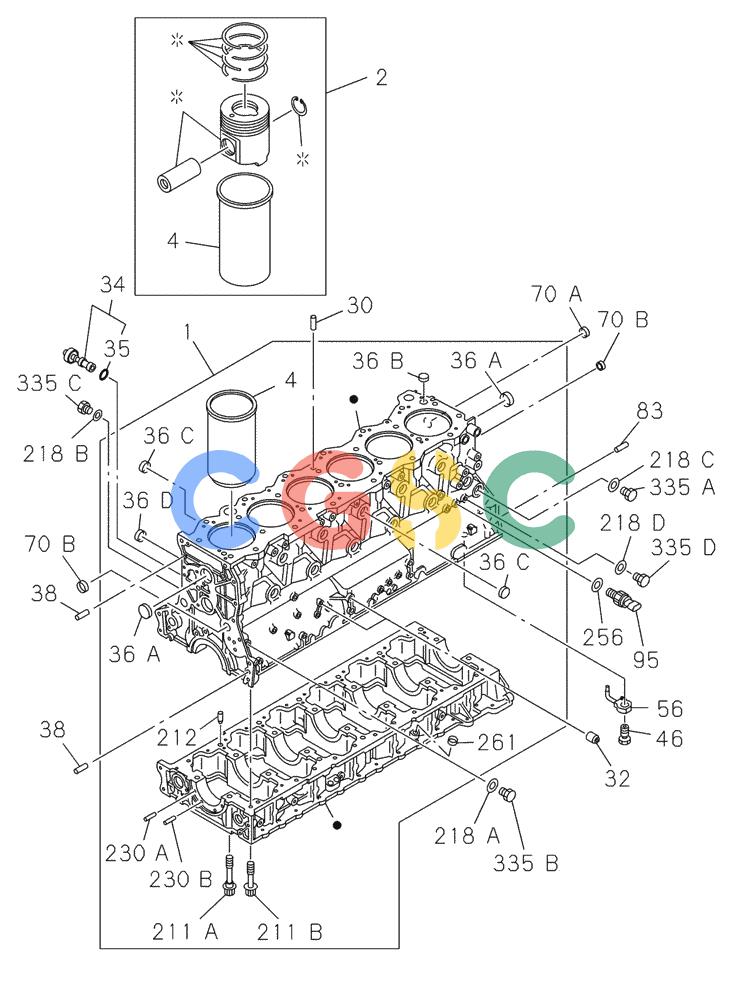

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR TIER 3 (7/06-) (02-012-01[01]) - CYLINDER BLOCK New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
195 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87384362 | [1] | CYLINDER BLOCK | ISU |
| 2. | 87384363 | [6] | PISTON RINGS & LINER KIT | ISUOD Grade=1X |
| 2. | 87384366 | [6] | PISTON RINGS & LINER KIT | ISUOD Grade=3X Superseded by part number: 87384363 |
| 4. | 87384367 | [6] | ENGINE CYLINDER LINER | ISUOD Grade=1X, ID=Non Superseded by part number: 76615593 |
| 4. | 87384368 | [6] | ENGINE CYLINDER LINER | ISUOD Grade=3X, ID=Non |
| 30. | 289771A1 | [3] | PIN | ISUOD 10 |
| 32. | 288582A1 | [2] | DOWEL | ISU |
| 34. | 288571A1 | [1] | VALVE, PRESSURE RELI | ISUEF |
| 35. | 288583A1 | [1] | GASKET | ISU Superseded by part number: 71455212 |
| 36A. | 87384369 | [4] | CUPEL | ISUOD 45 Superseded by part number: 87398694 |
| 36B. | 289076A1 | [1] | CUP | ISUOD 25 |
| 36C. | 288553A1 | [13] | PLUG | ISUOD 40 |
| 36D. | 288584A1 | [2] | PLUG | ISUOD 40 Superseded by part number: 72110192 |
| 46. | 288585A1 | [6] | BOLT | ISU |
| 56. | 288586A1 | [6] | LUBE OIL NOZZLE | ISULUBE OIL JET NOZZLE Superseded by part number: 72110194 |
| 70A. | 362152A1 | [1] | CUP | CASOD 32 |
| 83. | 288587A1 | [2] | PIN | ISU |
| 95. | 87336452 | [1] | SENSOR | ISUEngine Oil Pressure Superseded by part number: 87597867 |
| 211A. | 288589A1 | [14] | BOLT | ISUM18 x 150 |
| 211B. | 288590A1 | [28] | BOLT | ISUM12 x 114 |
| 212. | 288591A1 | [2] | PIN | ISU |
| 218A. | 289092A1 | [1] | GASKET | ISUID 10.2 |
| 218B. | 289093A1 | [1] | PACKING | ISUID 12.2 |
| 218C. | 288592A1 | [1] | GASKET | ISUID 22 Superseded by part number: 72110199 |
| 218D. | 288565A1 | [1] | GASKET | ISUID 14.2 - OD 19.2 Superseded by part number: 72110175 |
| 230A. | 288593A1 | [1] | PIN | ISUL25 |
| 230B. | 288594A1 | [1] | PIN | ISUOD 5 L10 |
| 261. | 357413A1 | [4] | RING | ISU Superseded by part number: 71455057 |
| 335A. | 288595A1 | [2] | PLUG | ISUM22 x 12 |
| 335B. | 288569A1 | [1] | PLUG | ISUM10 x 7 |
| 335C. | 288596A1 | [1] | PLUG | ISUM12 x 9 |
| 335D. | 289998A1 | [2] | PLUG | ISUM14 x 9 |
