纽荷兰零件查询(E805) - CRAWLER EXCAVATOR TIER 3 (7/06-) (02-013-01[01]) - OIL PAN New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
799 次

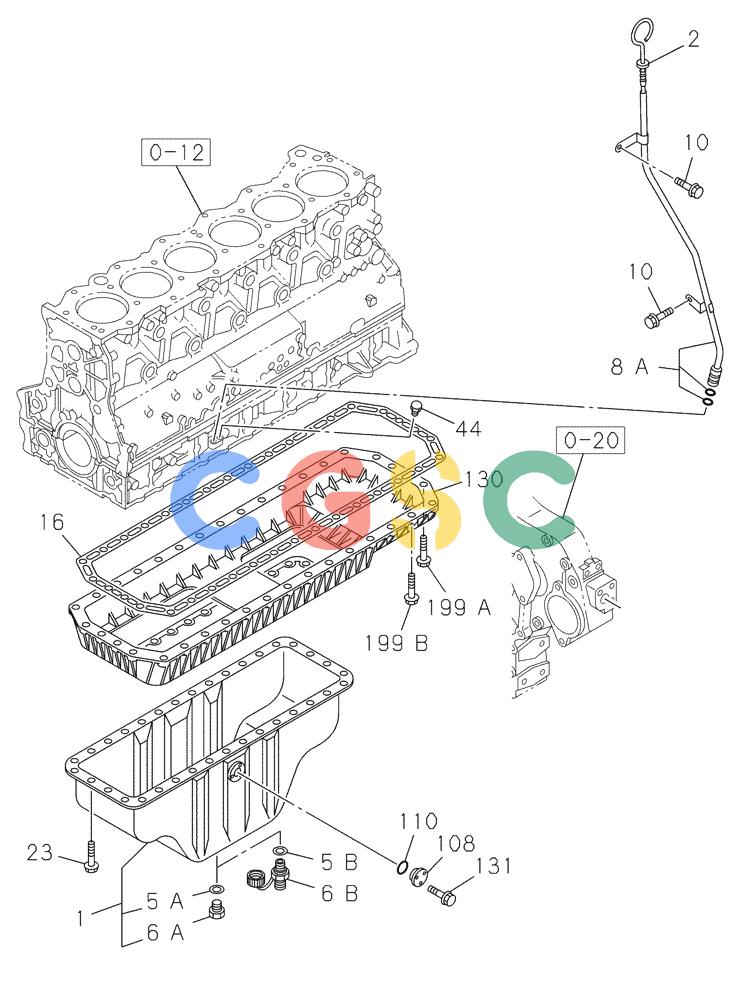

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87384370 | [1] | ENGINE OIL PAN | ISU |
| 2. | 87384384 | [1] | DIPSTICK | ISU |
| 5A. | 87378135 | [1] | GASKET | ISU Superseded by part number: 86987151 |
| 5B. | 87384405 | [1] | GASKET | ISU |
| 6. | 87378136 | [1] | PLUG | ISUID 24.4 |
| 6B. | 87384406 | [1] | PLUG | ISUID24.5 - OD 32 Superseded by part number: 87393863 |
| 8. | 87384407 | [1] | TUBE | ISU |
| 10. | 288993A1 | [2] | FLANGE BOLT | ISUM10 x 20 |
| 16. | 288604A2 | [1] | GASKET | ISU |
| 23. | 289034A1 | [34] | BOLT | ISUM8 x 25 Superseded by part number: 368500A1 |
| 44. | 288597A1 | [1] | PLUG | ISU |
| 110. | 437876A1 | [1] | GASKET | ISU Superseded by part number: 87377928 |
| 130. | 288606A2 | [1] | SPACER | ISU Superseded by part number: 84167524 |
| 131. | 288982A1 | [3] | BOLT | ISUM6 x 12 Superseded by part number: 87595952 |
| 199A. | 426461A1 | [4] | BOLT | ISUM10 x 50 |
| 199B. | 289005A1 | [26] | BOLT | ISUM10 x 35 |
