神钢零件查询(ED150-2) - BLADE RUNNER EXCAVATOR/DOZER ASN LH01-01001 (1/09-12/12) (03-008[02]) - HYDRAULIC LINES, BOOM (NIBBLER & BREAKER) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
374 次

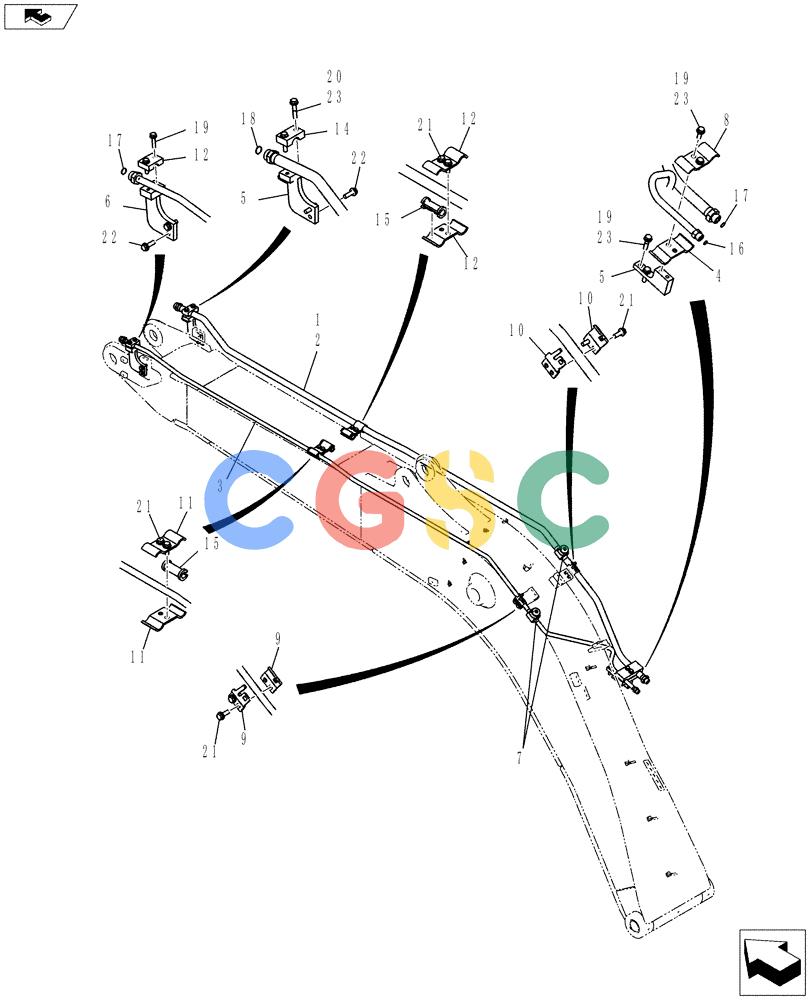

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YY42H00293F1 | [1] | Boom | |
| 2. | YY42H01946P1 | [1] | PIPE | KOB |
| 3. | YY42H02102P1 | [1] | PIPE | KOB |
| 4. | YY42H02103P1 | [1] | BRACKET, SUPPORTING | KOB |
| 5. | YY42H01575P1 | [1] | BRACKET | KOB |
| 6. | YY42H02101P1 | [1] | BRACKET, SUPPORTING | KOB |
| 7. | YN42H02582P1 | [2] | PLUG | KOB |
| 8. | YY42H02105P1 | [1] | CLAMP | KOB |
| 9. | YN42H02355P1 | [2] | CLAMP | KOB Superseded by part number: 84528898 |
| 10. | YN42H02357P1 | [2] | CLAMP,37mm ID, J Type | KOB Superseded by part number: 84528832 |
| 11. | YN42H02349P1 | [2] | CLAMP | KOB |
| 12. | YY42H01477P1 | [2] | CLAMP | KOB |
| 13. | 2432T6122 | [1] | CLAMP | KOB |
| 14. | 2432T5924 | [1] | CLAMP | KOB |
| 15. | YY42H01473P1 | [2] | BUSHING,21.7mm ID x 28mm OD x 83mm L | KOB |
| 16. | ZD12A01600 | [1] | O-RING | KOB |
| 17. | ZD12A01800 | [2] | O-RING,1.78mm Thk x 18.77mm ID, Cl 6 | KOB |
| 18. | ZD12A02100 | [1] | O-RING | KOB |
| 19. | ZS18C12055 | [6] | SCREW,Hex, M12 x 55mm | KOBCap |
| 20. | ZS18C12060 | [2] | SCREW,Hex, M12 x 60mm | KOBCap |
| 21. | ZM73C12035 | [8] | BOLT,M12x35mm - Course Thread | KOBSems |
| 22. | ZM73C12040 | [4] | BOLT,M12x40mm - Course Thread | KOBSems |
| 23. | ZW16H12000 | [8] | WASHER | KOB |
