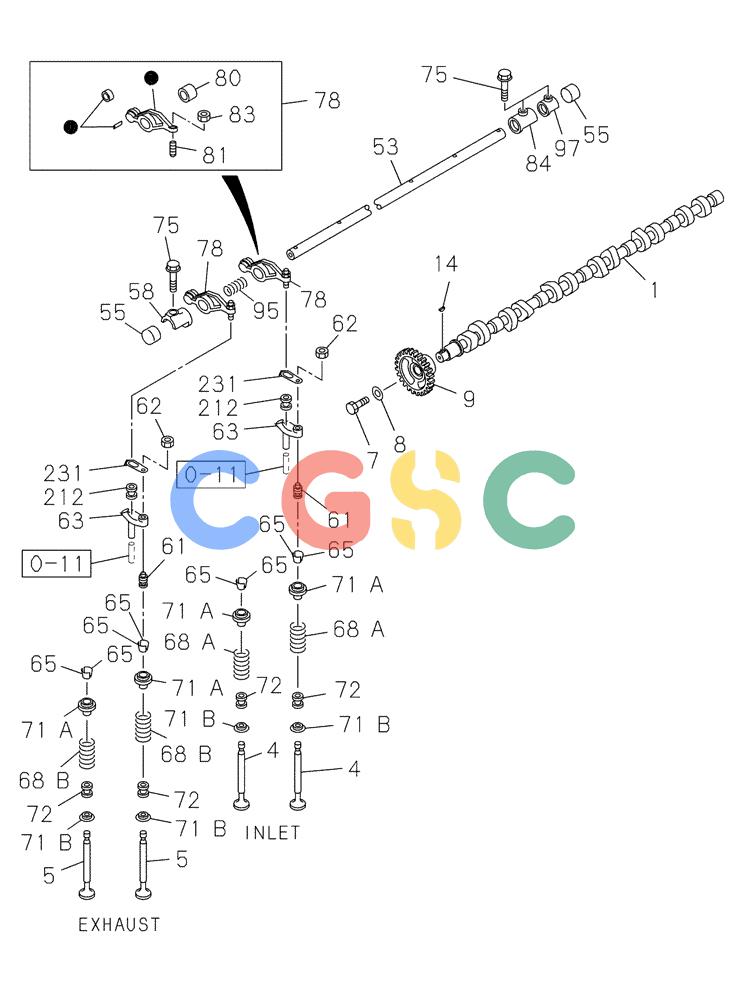

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR TIER 3 (7/06-) (02-014-01[01]) - CAMSHAFT - VALVE MECHANISM New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
439 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 288608A1 | [1] | CAMSHAFT | ISU |
| 4. | 87384408 | [12] | STD INLET VALVE | ISUSTD ENGINE INLET VALVE |
| 5. | 87384410 | [12] | STD EXHAUST VALVE | ISUSTD ENGINE EXHAUST VALVE |
| 7. | 289993A1 | [1] | BOLT | ISUM14 x 28 Superseded by part number: 71455153 |
| 8. | 289838A1 | [1] | WASHER | ISUID 14.5 |
| 9. | 87384412 | [1] | GEAR | ISUZ 54 |
| 14. | 288612A1 | [1] | KEY | ISU Superseded by part number: 71455150 |
| 53. | 87384414 | [1] | ROCKER ARM | ISU |
| 55. | 288614A1 | [2] | PLUG | ISU Superseded by part number: 359866A1 |
| 58. | 288615A1 | [1] | SUPPORT | ISU |
| 61. | 288616A2 | [12] | ADJUSTMENT SCREW | ISU |
| 62. | 288617A1 | [12] | LOCK NUT | ISUM10 |
| 63. | 288618A1 | [12] | BRIDGE | ISU |
| 65. | 288619A1 | [48] | SPLIT COLLAR | ISU |
| 68A. | 87384415 | [12] | VALVE SPRING | ISUInlet |
| 68B. | 288621A1 | [12] | VALVE SPRING | ISUExhaust |
| 71A. | 87384430 | [24] | SPRING SEAT | ISUUpper |
| 71B. | 288624A1 | [24] | SPRING SEAT | ISULower |
| 72. | 288625A1 | [24] | SEAL | ISU Superseded by part number: 72110227 |
| 75. | 288626A1 | [7] | BOLT | ISUM12 x 97 |
| 78. | 87384433 | [12] | ROCKER | ISU |
| 80. | 87384437 | [12] | BUSHING | ISU |
| 81. | 288629A1 | [12] | ADJUSTMENT SCREW | ISU |
| 83. | 288630A1 | [12] | NUT | ISUM12 Superseded by part number: 76593673 |
| 84. | 288631A1 | [5] | SUPPORT | ISU |
| 95. | 288632A1 | [6] | SPRING | ISU |
| 97. | 288633A1 | [1] | SUPPORT | ISU |
| 212. | 288641A1 | [12] | CAP | ISU |
| 231. | 288928A1 | [7] | LOCKING PLATE | ISU |
