纽荷兰零件查询(E805) - CRAWLER EXCAVATOR TIER 3 (7/06-) (02-014-02[01]) - CAMSHAFT - VALVE MECHANISM New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
615 次

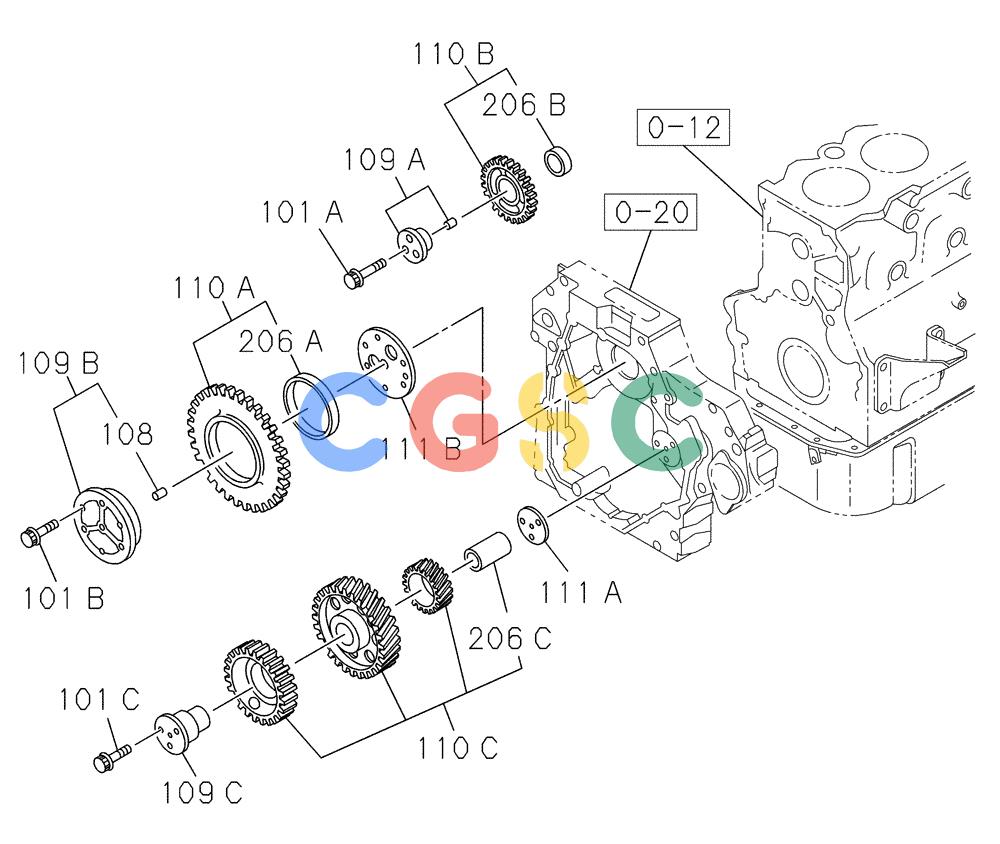

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 101A. | 288634A1 | [3] | BOLT | ISUM10 x 40 |
| 101B. | 288635A1 | [6] | BOLT | ISUM10 x 60 Superseded by part number: 87601343 |
| 101C. | 288590A1 | [3] | BOLT | ISUM12 x 114 |
| 108. | 288636A1 | [1] | DOWEL | ISUOD 12 - L32 |
| 109A. | 288637A1 | [1] | IDLE SHAFT | ISU |
| 109B. | 288638A1 | [1] | IDLE SHAFT | ISU |
| 109C. | 288639A1 | [1] | IDLE SHAFT | ISU |
| 110A. | 87384563 | [1] | GEAR | ISU |
| 110B. | 87384741 | [1] | GEAR | ISU |
| 110C. | 87384742 | [1] | GEAR | ISU Superseded by part number: 84189771 |
| 111A. | 419805A1 | [1] | WASHER, THRUST | ISU |
| 111B. | 419806A1 | [1] | WASHER, THRUST | ISU |
| 206A. | 419807A1 | [1] | BUSHING | ISU |
| 206B. | 419808A1 | [1] | BUSHING | ISU Superseded by part number: 84155453 |
| 206C. | 419809A1 | [1] | BUSHING | ISU |
