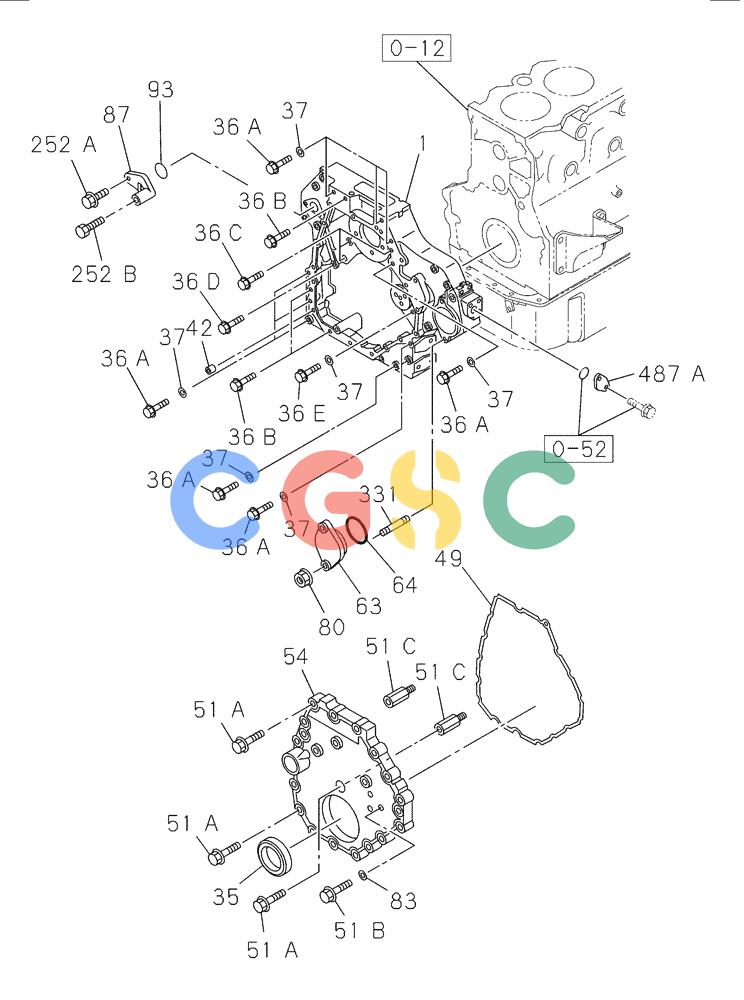

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR TIER 3 (7/06-) (02-020-01[01]) - FRONT TIMING GEAR COVER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
829 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87384752 | [1] | HOUSING | ISU |
| 35. | 419913A1 | [1] | OIL SEAL | ISU Superseded by part number: 87667098 |
| 36A. | 419917A1 | [10] | BOLT | ISUM14 x 110 |
| 36B. | 419914A1 | [3] | BOLT | ISUM10 x 100 |
| 36C. | 419915A1 | [4] | BOLT | ISUM10 x 25 |
| 36D. | 288544A1 | [1] | SPECIAL BOLT | ISUM10 x 35 Superseded by part number: 87577258 |
| 36E. | 419918A1 | [1] | BOLT | ISUM14 x 60 |
| 37. | 289796A1 | [11] | WASHER | ISUID 14 |
| 42. | 288576A1 | [1] | DOWEL | ISU |
| 49. | 87384758 | [1] | GASKET | ISU Superseded by part number: 84237868 |
| 51A. | 426208A1 | [17] | BOLT | ISUM10 x 30 |
| 51B. | 419924A1 | [3] | BOLT | ISUM8 x 140 |
| 51C. | 87384759 | [2] | BOLT | ISUM10 x 90 |
| 54. | 87384760 | [1] | COVER | ISU |
| 63. | 419927A1 | [1] | COVER | ISU |
| 64. | 419928A1 | [1] | GASKET | ISU |
| 80. | 419929A1 | [2] | NUT | ISUM10 Superseded by part number: 87596349 |
| 83. | 419930A1 | [3] | WASHER | ISUID 8.5 OD 20 |
| 87. | 419931A1 | [1] | COVER | ISU |
| 93. | 419932A1 | [1] | GASKET | ISU |
| 252A. | 355226A1 | [1] | BOLT | ISUM8 x 20 |
| 252B. | 355273A1 | [1] | BOLT | CASM8 x 60 |
| 331. | 362156A1 | [2] | STUD | CASM1 x 30 L 45 |
| 487A. | 419950A1 | [1] | COVER | ISU |
