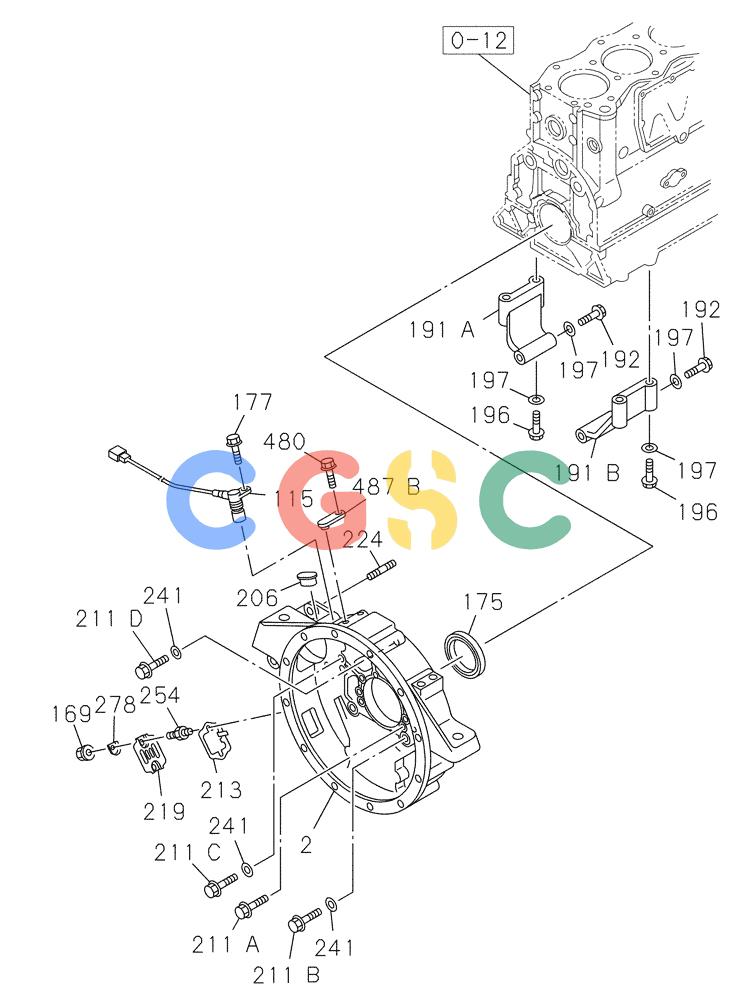

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR TIER 3 (7/06-) (02-020-02[01]) - ENGINE FLYWHEEL HOUSING New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
735 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 115. | 87336454 | [1] | SENSOR | ISU |
| 169. | 289042A1 | [1] | NUT | ISUM8 Superseded by part number: 87595428 |
| 175. | 419934A1 | [13] | OIL SEAL | ISU Superseded by part number: 87473021 |
| 177. | 288704A1 | [1] | BOLT | ISUM6 x 16 |
| 191A. | 419936A1 | [1] | SUPPORT | ISU |
| 191B. | 419937A1 | [1] | SUPPORT | ISU |
| 192. | 419938A1 | [2] | BOLT | ISUM14 x 155 |
| 196. | 419939A1 | [4] | BOLT | ISUM14 x 100 Superseded by part number: 84256290 |
| 197. | 289796A1 | [6] | WASHER | ISUID 14 |
| 206. | 419940A1 | [1] | PLUG | ISU |
| 211A. | 419941A1 | [8] | FLANGE BOLT | ISUM14 x 50 |
| 211B. | 419942A1 | [2] | BOLT | ISUM14 x 50 Superseded by part number: 84187993 |
| 211C. | 419943A1 | [10] | BOLT | ISUM14 x 45 |
| 211D. | 419944A1 | [1] | BOLT | ISUM14 x 40 |
| 213. | 419945A1 | [1] | POINTER | ISU |
| 219. | 419946A1 | [2] | COVER | ISU |
| 224. | 419947A1 | [3] | STUD | ISUM14 x 35 L 56 Superseded by part number: 84387697 |
| 278. | 419949A1 | [2] | WASHER | ISU |
| 480. | 419935A1 | [1] | BOLT | ISUM8 x 16 Superseded by part number: 76599954 |
| 487. | 419951A1 | [1] | COVER | ISU |
