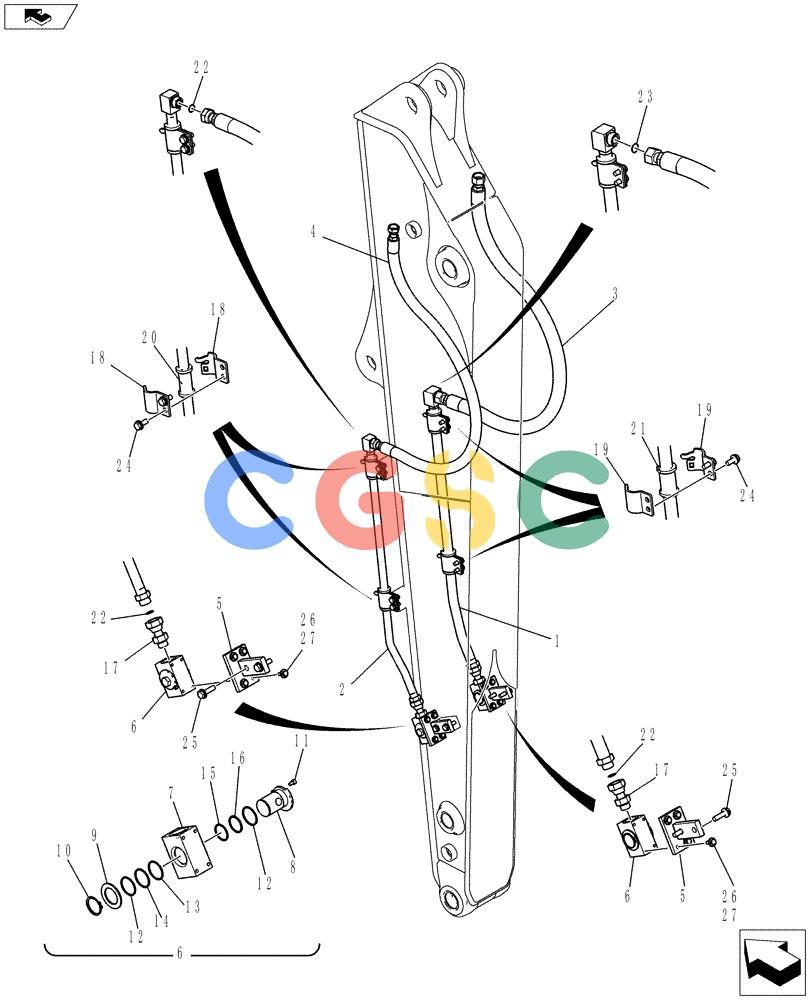

神钢零件查询(ED150-2) - BLADE RUNNER EXCAVATOR/DOZER ASN LH01-01001 (1/09-12/12) (03-030[00]) - HYDRAULIC LINES, ARM (NIBBLER & BREAKER) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
705 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YY43H00134F1 | [1] | KIT | KOBArm 2.84M |
| 1. | YY43H01342P1 | [1] | TUBE | KOB |
| 2. | YY43H01343P1 | [1] | TUBE | KOB |
| 3. | ZX50H16165 | [1] | FLEXIBLE HOSE | KOB |
| 4. | ZX50H12160 | [1] | HYDRAULIC HOSE | KOB |
| 5. | YW43H01044P1 | [2] | BRACKET | KOB |
| 6. | 24100P1006F1 | [2] | VALVE | KOBStop Superseded by part number: 24100P1006F2 |
| 7. | 2436P230 | [1] | VALVE BODY | KOB |
| 8. | 2436T304 | [1] | VALVE | KOB |
| 9. | 2418T8945D1 | [1] | SPACER | KOB |
| 10. | ZR16X04000 | [1] | RING | KOBRetaining |
| 11. | ZS23C06010 | [1] | SCREW,Hex Socket Head, M6 x 10mm | KOBCap |
| 12. | ZD11G04000 | [2] | O-RING,39.40mm ID x 45.60mm OD x 3.10mm | KOB |
| 13. | ZD12G04000 | [1] | O-RING,39.40mm ID x 45.60mm OD x 3.10mm | KOB |
| 14. | ZD75G04000 | [1] | BACK-UP RING | KOB |
| 15. | ZD12G03500 | [1] | O-RING,34.40mm ID x 40.60mm OD x 3.10mm | KOB |
| 16. | ZD85G03500 | [1] | RING | KOBBack-Up |
| 17. | HG23H12012G1 | [2] | HYD CONNECTOR | KOB |
| 18. | YN42H02357P1 | [4] | CLAMP,37mm ID, J Type | KOB Superseded by part number: 84528832 |
| 19. | YN42H02363P1 | [4] | CLAMP,46mm ID, J Type | KOB |
| 20. | YN42H02319P1 | [2] | BUSHING,27.2mm ID x 34mm OD x 83mm L | SM Superseded by part number: 84354627 |
| 21. | YN43H01524P1 | [2] | BUSHING,34mm ID x 53mm OD x 83mm L | KOB Superseded by part number: 84354629 |
| 22. | ZD12A01800 | [3] | O-RING,1.78mm Thk x 18.77mm ID, Cl 6 | KOB |
| 23. | ZD12A02100 | [1] | O-RING | KOB |
| 24. | ZM73C12030 | [8] | BOLT,M12x30mm - Course Thread | KOBSems |
| 25. | ZM73C12045 | [4] | BOLT,M12x45mm - Course Thread | KOBSems |
| 26. | ZS18C08025 | [8] | SCREW,Hex, M8 x 25mm | KOBCap |
| 27. | YN43H01151P1 | [8] | WASHER | KOB |
