神钢零件查询(ED150-2) - BLADE RUNNER EXCAVATOR/DOZER ASN LH01-01001 (1/09-12/12) (03-031[02]) - BUCKET CYLINDER INSTALLATION Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
386 次

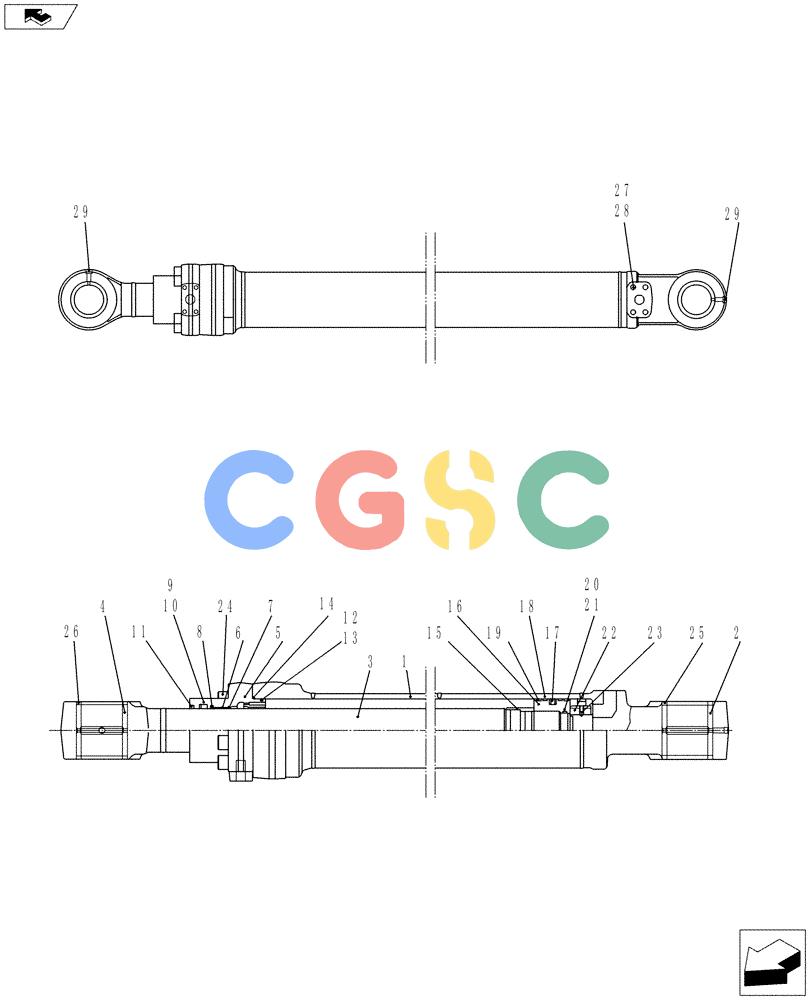

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONTube Assy. |
| 2. | YY01V01022P1 | [1] | BUSHING | KOB |
| 3. | NSS | [1] | NOT SOLD SEPARAT | CONRod, Piston |
| 4. | YY12B01554P1 | [1] | BUSHING | KOB |
| 5. | YY01V00055S005 | [1] | COVER | KOB |
| 6. | YY01V00055S006 | [1] | BUSHING | KOB |
| 7. | YY01V00055S007 | [1] | RING | KOBRetaining |
| 8. | YY01V00055S008 | [1] | RUBBER SEAL | KOB |
| 9. | YY01V00055S009 | [1] | PACKING | KOBSeal |
| 10. | YY01V00055S010 | [1] | RING | KOBBack Up |
| 11. | YY01V00055S011 | [1] | SEAL | KOBDust Superseded by part number: YY01V00055S030 |
| 12. | ZD12G09000 | [1] | O-RING,89.40mm ID x 95.60mm OD x 3.10mm | KOB |
| 13. | YY01V00055S013 | [1] | RING | KOBBack Up |
| 14. | ZD12G09500 | [1] | O-RING,3.1mm Thk x 94.4mm ID, 90 Duro | KOB |
| 15. | YY01V00055S015 | [1] | RING | KOB |
| 16. | YY01V00055S016 | [1] | PISTON | KOB |
| 17. | YY01V00055S017 | [1] | SEAL | KOBPiston |
| 18. | YY01V00055S018 | [2] | WEAR RING | KOB |
| 19. | YY01V00055S019 | [2] | RING | KOB |
| 20. | YY01V00055S020 | [1] | O-RING | KOB |
| 21. | YY01V00055S021 | [2] | RING | KOBBack Up |
| 22. | YY01V00055S022 | [1] | NUT | KOB Superseded by part number: YW01V00001S013 |
| 23. | YN01V00148S024 | [1] | SET SCREW | SMSetscrew |
| 24. | YY01V00053S024 | [8] | SCREW | KOBCap |
| 25. | YY01V00055S025 | [2] | GASKET | KOBSeal |
| 26. | YY01V00055S026 | [2] | GASKET | KOBSeal |
| 27. | NSS | [2] | NOT SOLD SEPARAT | CONCover, Dust |
| 28. | NSS | [8] | NOT SOLD SEPARAT | CONCapscrew |
| 29. | NSS | [2] | NOT SOLD SEPARAT | CONCap |
| . . | YY01V00055R100 | [1] | SEAL KIT | KOBConsists Of Item: 8(1), 9(1), 10(1), 11(1), 12(1), 13(1), 14(1) Superseded by part number: YY01V00055R600 |
| . . | YY01V00055R200 | [1] | SEAL KIT | KOBConsists Of Item: 17(1), 20(1), 18(2), 19(2), 21(2) |
| . . | YY01V00055R300 | [1] | KIT | KOBRepair, Consists Of Item: 8(1), 9(1), 10(1), 11(1), 12(1), 13(1), 14(1),17(1), 20(1), 18(2), 19(2), 21(2) Superseded by part number: YY01V00055R700 |
| . . | YY01V00055R400 | [1] | SEAL KIT | KOBConsists Of Item: 1(2), 2(2), 25(2) |
| . . | YY01V00055R500 | [1] | ROD | KOBRepair Kit, Consists Of Item: 3(2), 4(2), 26(2) |
