纽荷兰零件查询(E805) - CRAWLER EXCAVATOR TIER 3 (7/06-) (02-052-01[01]) - OIL CIRCUIT New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
915 次

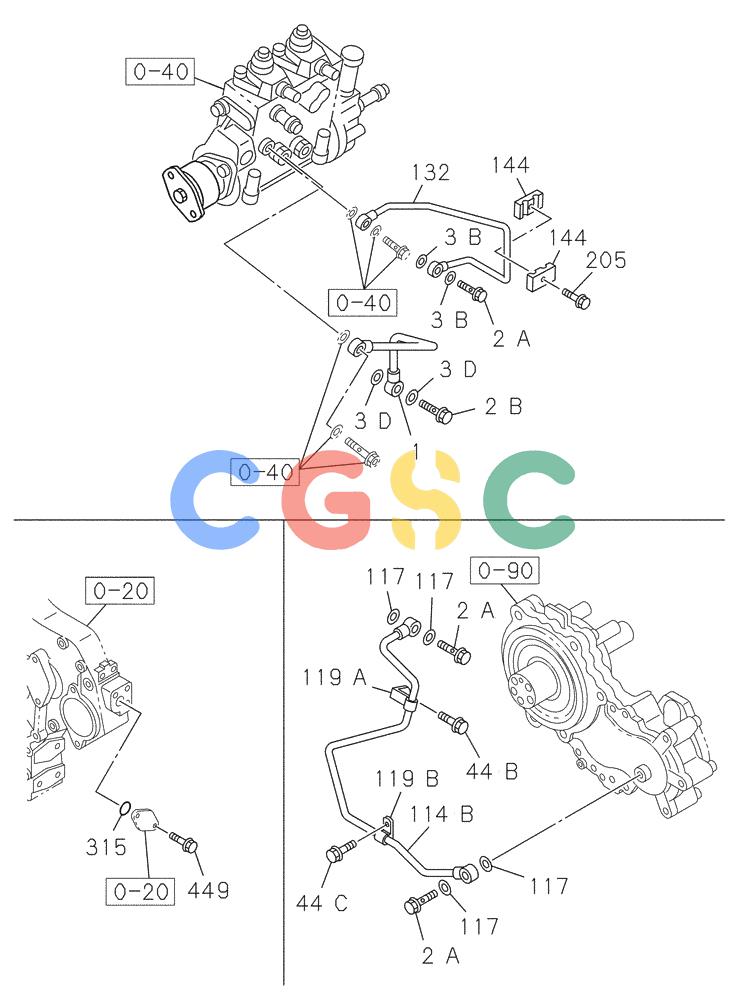

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87386057 | [1] | PIPE | ISU |
| 2A. | 426635A1 | [3] | BOLT | ISUM10 x 21 |
| 2B. | 289104A1 | [1] | BANJO BOLT | ISUM14 x 27 Superseded by part number: 1096750860 |
| 3B. | 289092A1 | [2] | GASKET | ISU |
| 3D. | 288565A1 | [2] | GASKET | ISU Superseded by part number: 72110175 |
| 44B. | 289003A1 | [1] | BOLT | ISUM6 x 35 |
| 44C. | 288995A1 | [1] | BOLT | ISUM8 x 20 |
| 114B. | 87386061 | [1] | PIPE | ISU |
| 119A. | 87386166 | [1] | CLIP | ISU |
| 119B. | 86987429 | [1] | CLIP | ISUID 7 - L 16 |
| 132. | 87386167 | [1] | PIPE | ISU Superseded by part number: 87636947 |
| 144. | 426415A1 | [1] | CLIP | ISUID 15 - L 30 |
| 205. | 87531032 | [1] | BOLT | ISU |
| 315. | 419952A1 | [1] | GASKET | ISU |
| 449. | 419935A1 | [2] | BOLT | ISUM8 x 16 Superseded by part number: 76599954 |
