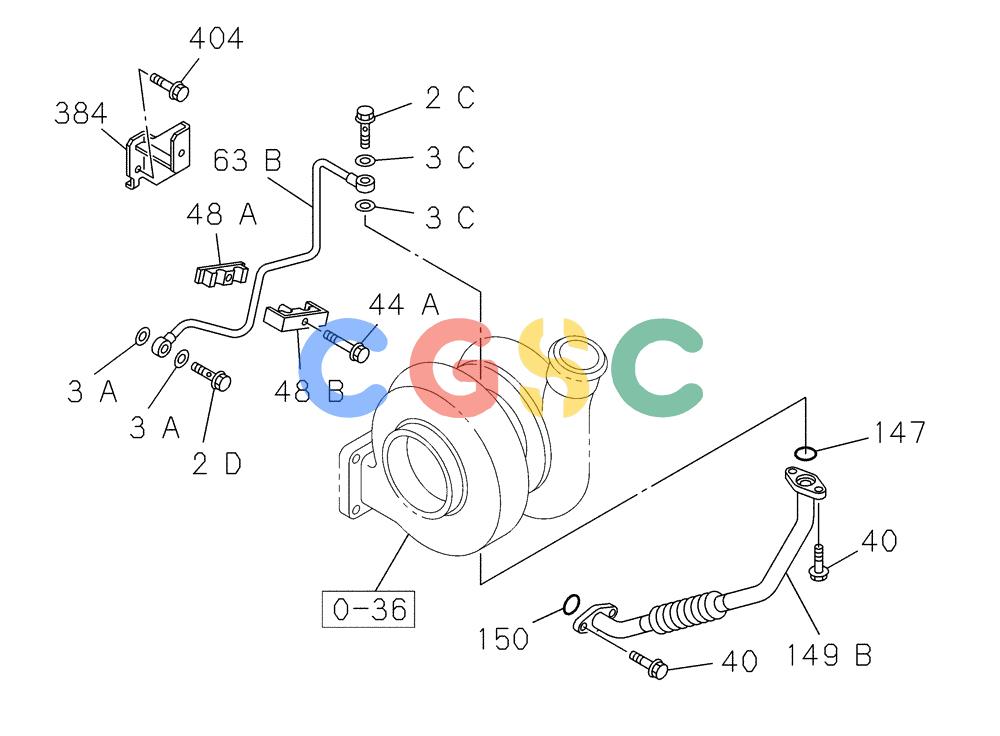

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR TIER 3 (7/06-) (02-052-02[01]) - OIL CIRCUIT New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
735 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 2C. | 87380151 | [1] | BOLT | ISUM10 x 28 |
| 2D. | 426642A1 | [1] | BOLT | ISUM12 x 27 Superseded by part number: 84164363 |
| 3A. | 289093A1 | [2] | PACKING | ISU |
| 3C. | 289809A1 | [2] | PACKING | ISU Superseded by part number: 76552228 |
| 40. | 289004A1 | [4] | BOLT | ISUM10 x 25 Superseded by part number: 76610052 |
| 44A. | 87531032 | [1] | BOLT | ISU |
| 48A. | 426431A1 | [1] | MOUNTING CLIP | ISU Superseded by part number: 72110435 |
| 48B. | 426437A1 | [1] | MOUNTING CLIP | ISU Superseded by part number: 87384507 |
| 63B. | 87386058 | [1] | PIPE | ISU Superseded by part number: 87548688 |
| 147. | 438148A1 | [1] | GASKET | ISU |
| 149B. | 87386168 | [1] | RETURN PIPE | ISU |
| 150. | 426648A1 | [1] | GASKET | ISUID 27.7 |
| 384. | 87386169 | [1] | BRACKET | ISU |
| 404. | 289003A1 | [1] | BOLT | ISUM10 x 20 |
