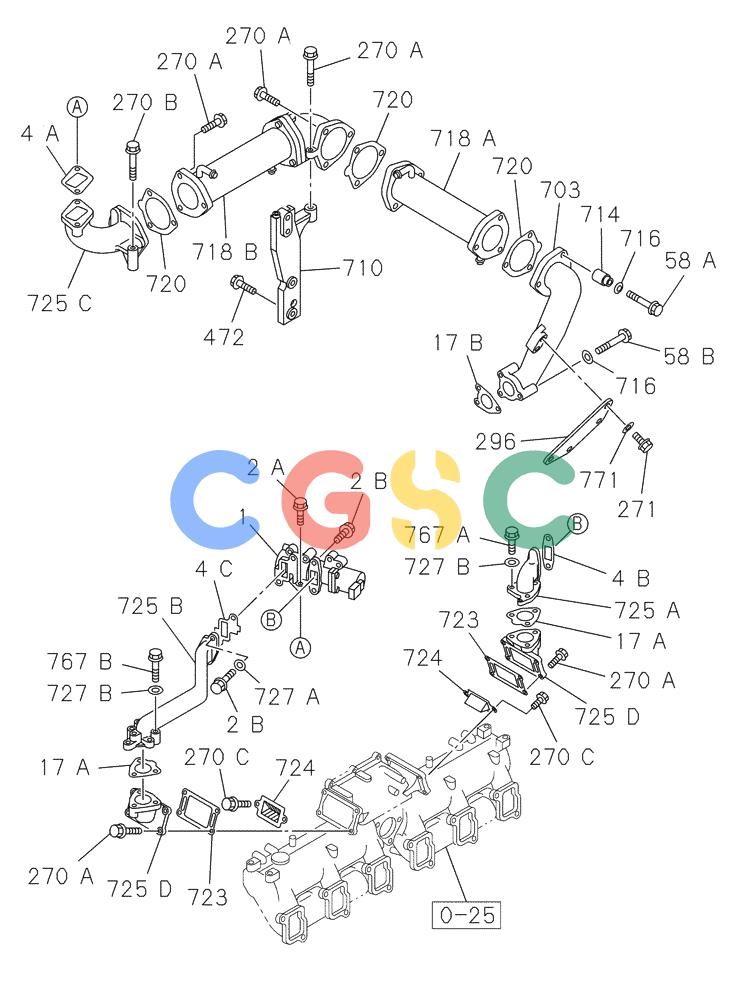

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR TIER 3 (7/06-) (02-057-01[01]) - EXHAUST GAS RECIRCULATION SYSTEM New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
681 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87386170 | [1] | VALVE | ISU Superseded by part number: 84555369 |
| 2A. | 355273A1 | [2] | BOLT | CASM8 x 60 |
| 2B. | 355241A1 | [4] | BOLT | ISUM8 x 30 |
| 4A. | 87386172 | [1] | GASKET | ISU |
| 4B. | 87386176 | [1] | GASKET | ISU |
| 4C. | 87386177 | [1] | GASKET | ISU |
| 17A. | 87386178 | [2] | GASKET | ISU |
| 17B. | 87386180 | [1] | GASKET | ISU |
| 58A. | 288635A1 | [3] | BOLT | ISUM10 x 60 Superseded by part number: 87601343 |
| 58B. | 87386181 | [3] | BOLT | ISUM10 x 80 |
| 270A. | 426208A1 | [15] | BOLT | ISUM10 x 30 |
| 270B. | 426102A1 | [1] | BOLT | ISUM10 x 90 Superseded by part number: 87597043 |
| 270C. | 87380186 | [4] | SCREW | ISU |
| 271. | 87385625 | [4] | BOLT | ISUM10 x 20 |
| 296. | 87386182 | [1] | BRACKET | ISU |
| 472. | 288559A1 | [2] | BOLT | ISUM12 x 50 |
| 703. | 87386183 | [1] | PIPE | ISU |
| 710. | 87386184 | [1] | BRACKET | ISU |
| 714. | 87379734 | [1] | COLLAR | ISU |
| 716. | 426068A1 | [1] | WASHER | ISU Superseded by part number: 71455326 |
| 718A. | 87386185 | [1] | COOLER | ISU |
| 718B. | 87386188 | [1] | COOLER | ISU |
| 720. | 87386189 | [3] | GASKET | ISU |
| 723. | 87386217 | [2] | GASKET | ISU |
| 724. | 87544988 | [2] | VALVE | ISU Superseded by part number: 47611009, 87531034 |
| 725A. | 87386220 | [1] | PIPE | ISU |
| 725B. | 87386221 | [1] | PIPE | ISU |
| 725C. | 87386227 | [1] | PIPE | ISU |
| 725D. | 87386228 | [2] | PIPE | ISU |
| 727A. | 289787A1 | [2] | WASHER | ISU Superseded by part number: 87601815 |
| 727B. | 289788A1 | [6] | WASHER | ISU |
| 767B. | 288625A1 | [3] | SEAL | ISUM10 x 60 Superseded by part number: 72110227 |
| 771. | 426259A1 | [4] | WASHER | ISU |
