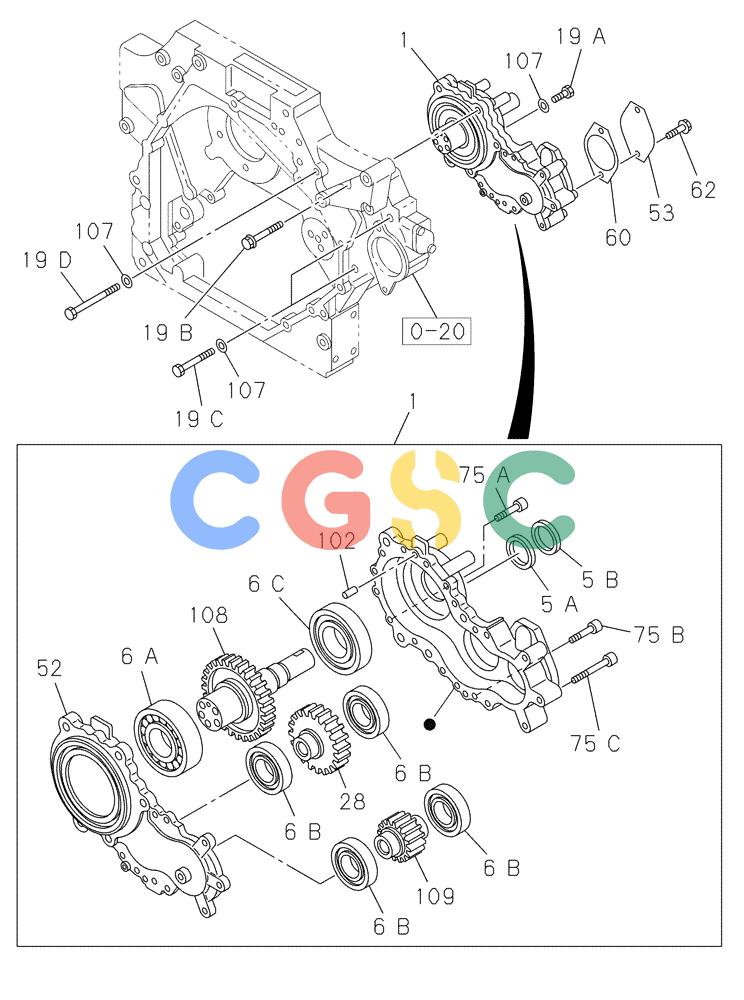

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR TIER 3 (7/06-) (02-090-01[01]) - COUPLING - FLYWHEEL New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
437 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87386248 | [1] | PTO | ISU |
| 5A. | 76600007 | [1] | SEALING RING | ISUSEALRING |
| 5B. | 87386249 | [1] | SEAL | ISU |
| 6A. | 87386250 | [1] | BALL BEARING | ISU |
| 6B. | 87386251 | [4] | BALL BEARING | ISU |
| 6C. | 87386252 | [1] | BALL BEARING | ISU Superseded by part number: 47388758 |
| 19A. | 426656A1 | [1] | BOLT | ISUM14 x 80 |
| 19B. | 426274A1 | [1] | BOLT | ISUM10 x 135 |
| 19C. | 426267A1 | [2] | BOLT | ISUM14 x 128 |
| 19D. | 87386253 | [1] | BOLT | ISUM14 x 150 |
| 28. | 87386254 | [1] | IDLER GEAR | ISU |
| 52. | 87386256 | [1] | HOUSING | ISU |
| 53. | 87386258 | [1] | COVER | ISU |
| 60. | 87386259 | [1] | GASKET | ISU |
| 62. | 87386260 | [2] | BOLT | ISUM14 x 20 |
| 75A. | 87386262 | [4] | BOLT | ISUM8 x 30 |
| 75B. | 87386263 | [9] | BOLT | ISUM10 x 33 |
| 75C. | 87386265 | [5] | BOLT | ISUM10 x 65 |
| 102. | 355153A1 | [2] | DOWEL | ISU |
| 107. | 289796A1 | [4] | WASHER | ISU |
| 108. | 87386266 | [1] | GEAR | ISU |
| 109. | 87386268 | [1] | GEAR | ISU |
