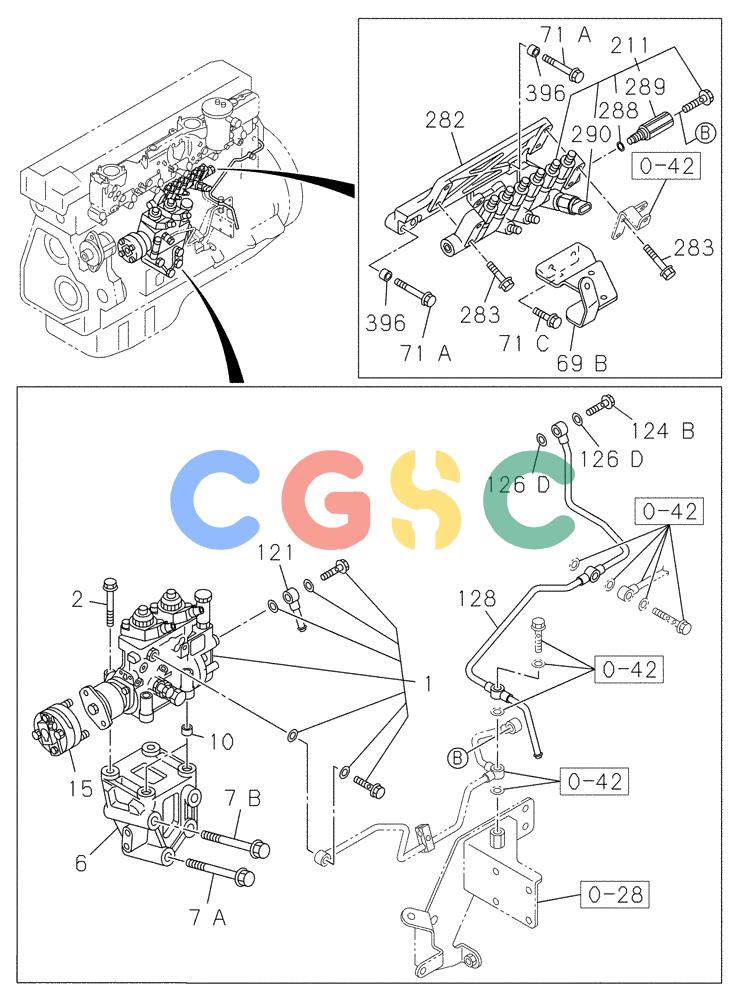

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR TIER 3 (7/06-) (03-040-01[01]) - FUEL SYSTEM - FUEL INJECTION PUMP New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
436 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87361319 | [1] | FUEL INJECTION PUMP | ISU |
| 2. | 87405528 | [4] | BOLT | ISUM8 x 90 |
| 6. | 87385630 | [1] | BRACKET | ISU |
| 7A. | 426393A1 | [2] | BOLT | ISUM14 x 90 |
| 7B. | 87531031 | [2] | BOLT | ISU |
| 10. | 86987185 | [2] | PIN | ISU |
| 15. | 87385634 | [1] | COUPLING | ISU |
| 69B. | 87385697 | [1] | BRACKET | ISU |
| 71A. | 288635A1 | [2] | BOLT | ISUM10 x 60 Superseded by part number: 87601343 |
| 71C. | 419935A1 | [2] | BOLT | ISUM8 x 16 Superseded by part number: 76599954 |
| 121. | 87385701 | [1] | PIPE | ISU |
| 124B. | 289104A1 | [1] | BANJO BOLT | ISUM14 x 27 Superseded by part number: 1096750860 |
| 126D. | 288565A1 | [2] | GASKET | ISU Superseded by part number: 72110175 |
| 128. | 87385787 | [1] | INJECTION PIPE | ISU |
| 211. | 87385794 | [1] | MANIFOLD | ISU |
| 282. | 87385799 | [1] | BRACKET | ISU |
| 283. | 288634A1 | [4] | BOLT | ISUM10 x 40 |
| 288. | 87385803 | [1] | GASKET | ISU |
| 289. | 87385812 | [1] | RESTRICTOR VALVE | ISU |
| 290. | 87385814 | [1] | SENSOR | ISU |
| 396. | 288576A1 | [1] | DOWEL | ISU |
