神钢零件查询(ED150-2) - BLADE RUNNER EXCAVATOR/DOZER ASN LH01-01001 (1/09-12/12) (08-009[00]) - FLYWHEEL HOUSING Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
247 次

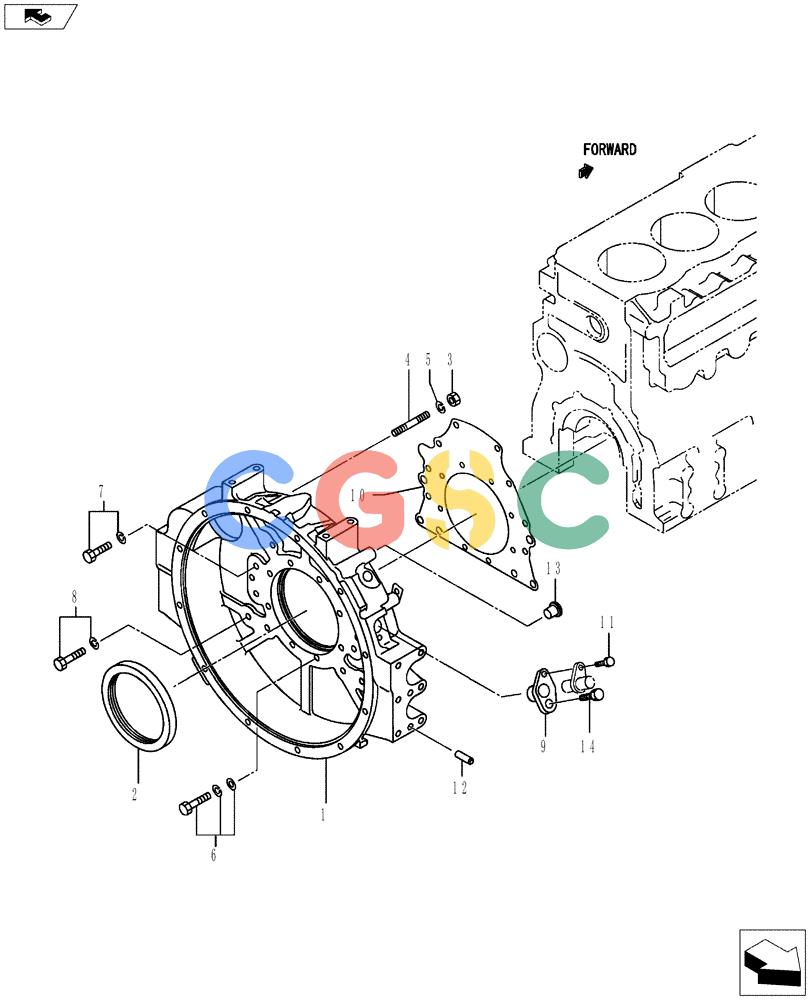

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VA32G1200100 | [1] | HOUSING | KOBFlywheel |
| 2. | VA3431200080 | [1] | GASKET | KOBSeal, Oil |
| 3. | VAF230010000 | [2] | NUT | KOB |
| 4. | VAMF407726 | [2] | STUD | KOB |
| 5. | VAF251510000 | [2] | SPRING WASHER | KOB |
| 6. | VAMF244855 | [8] | BOLT | KOBW/washer |
| 7. | VAF200510025 | [2] | BOLT | KOBW/washer |
| 8. | VAF200510030 | [10] | BOLT | KOBW/washer |
| 9. | VA32G1200201 | [1] | Sensor | |
| 10. | VA32F0704200 | [1] | GASKET | KOBRear |
| 11. | VAF121006016 | [1] | BOLT | KOBHexagon Socket |
| 12. | VA32G1200300 | [4] | PIN | KOBDowel |
| 13. | VA0553410000 | [1] | PLUG | KOB |
| 14. | VAF103508025 | [1] | BOLT | KOB |
