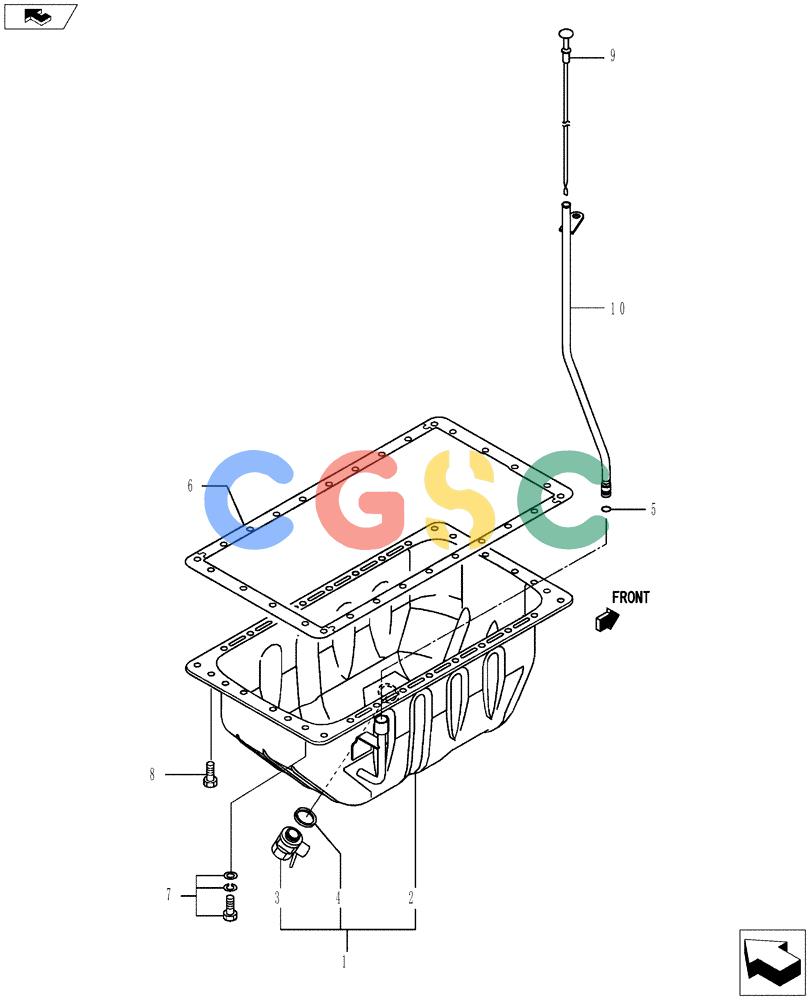

神钢零件查询(ED150-2) - BLADE RUNNER EXCAVATOR/DOZER ASN LH01-01001 (1/09-12/12) (08-010[00]) - OIL PAN Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
760 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VA32G1302010 | [1] | PAN | KOBAssy., Oil Superseded by part number: VA32G1302011 |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONPan, Oil |
| 3. | VA3431303102 | [1] | DRAINCOCK/TAP SUPPLY | KOBDrain |
| 4. | VA0594602401 | [1] | WASHER | KOB |
| 5. | VA0550710110 | [1] | O-RING | KOB |
| 6. | VA3421304100 | [1] | GASKET | KOBOil Pan |
| 7. | VAMF244852 | [16] | BOLT | KOBW/Washer |
| 8. | VA3431300200 | [12] | BOLT | KOBOil Pan |
| 9. | VA32G1311200 | [1] | DIPSTICK | KOBLevel |
| 10. | VA32G1311100 | [1] | GUIDE | KOBOil Level Gage |
