神钢零件查询(ED150-2) - BLADE RUNNER EXCAVATOR/DOZER ASN LH01-01001 (1/09-12/12) (08-011[00]) - PISTON Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
222 次

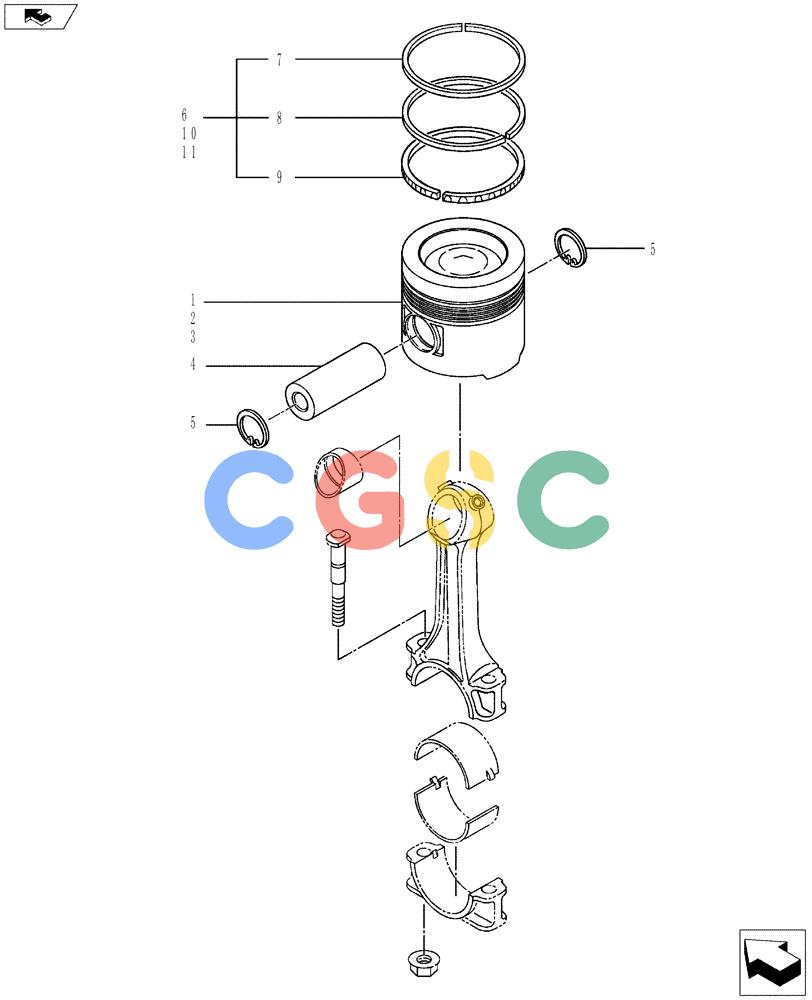

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VA32F1730100 | [4] | PISTON | KOB Superseded by part number: VA32F1740100 |
| 2. | VA32F1730200 | [4] | PISTON | KOB Superseded by part number: VA32F1740200 |
| 3. | VA32F1730300 | [4] | PISTON | KOB Superseded by part number: VA32F1740300 |
| 4. | VAME012009 | [4] | PISTON PIN | KOB |
| 5. | VA3431712100 | [8] | SNAP RING | KOB |
| 6. | VA3431707010 | [4] | PISTON RING SET | KOB |
| 7. | NSS | [4] | NOT SOLD SEPARAT | CONRing, 1st |
| 8. | NSS | [4] | NOT SOLD SEPARAT | CONRing, 2nd |
| 9. | NSS | [4] | NOT SOLD SEPARAT | CONRing, Oil |
| 10. | VA3431707020 | [4] | SET, PISTON RINGS | KOB |
| 11. | VA3431707030 | [4] | SET, PISTON RINGS | KOB |
