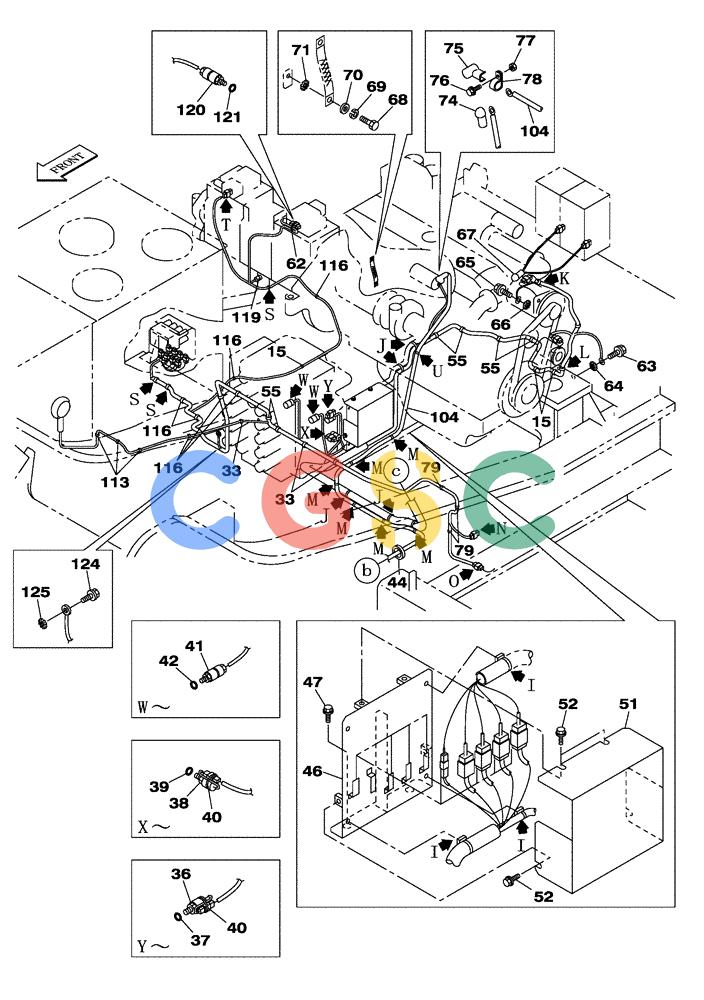

| 15. | KHR2787 | [1] | CLAMP | SUM |
| 36. | KHR10800 | [1] | PRESSURE SWITCH | SUM Superseded by part number: KHR24010 |
| 37. | 154467A1 | [1] | O-RING,10.8mm ID x 2.4mm Width | SUM |
| 38. | KHR10810 | [1] | PRESSURE SWITCH | SUM Superseded by part number: KHR24020 |
| 40. | 150067A1 | [2] | MOUNTING CLIP | SUM |
| 41. | 168135A1 | [2] | SENSOR,50 MPa | SUM |
| 42. | 154475A1 | [1] | O-RING | SUM |
| 44. | KHR4331 | [1] | GROMMET | SUM315 mm |
| 46. | KHR4308 | [1] | BRACKET | SUM Superseded by part number: KHR20540, KHR20360 |
| 47. | 152718A1 | [2] | BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9 | SUM |
| 51. | KHR4312 | [1] | COVER | SUM |
| 52. | 167518A1 | [4] | BOLT | SUMM8 x 16 |
| 62. | 150496A1 | [1] | MOUNTING CLIP | SUM250 mm |
| 64. | 893-11008 | [1] | LOCK WASHER,Ext Tooth, M8 | CAS Superseded by part number: 86632601 |
| 65. | KHR1828 | [1] | BOLT,Spcl | SUMM5 x 12 |
| 66. | 893-11005 | [1] | LOCK WASHER,Ext Tooth, M5 | CAS Superseded by part number: 86625264 |
| 67. | 159179A1 | [1] | PROTECTION CAP | SUM |
| 68. | 627-12025 | [1] | BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd | CAS Superseded by part number: 398792 |
| 69. | 183-112VR | [1] | SPRING WASHER | SUMSW 12 Superseded by part number: 86625255 |
| 70. | 896-11012 | [1] | WASHER,13.5mm ID x 24mm OD x 3mm Thk | CAS Superseded by part number: 86625255 |
| 71. | 893-11012 | [1] | LOCK WASHER,Ext Tooth, M12 | CAS Superseded by part number: 83925303 |
| 74. | 159173A1 | [1] | CAP | SUMM5 x 3.8 |
| 75. | KHR4114 | [1] | PROTECTOR | SUM |
| 77. | 829-1408 | [1] | NUT,Hex, M8 x 1.25, Cl 10.9 | CAS Superseded by part number: 43362, 87778059 |
| 78. | 162150A1 | [1] | CLAMP | SUM |
| 104. | KHR10170 | [1] | POS BATTERY CABLE | SUM |
| 119. | KHR2433 | [1] | SENSOR | SUM |
| 120. | KHR2915 | [1] | SENSOR,5 MPa | SUM |
| 124. | 159602A1 | [1] | BOLT,Sems, Hex, M6 x 16mm | SUMM6 x 16 |
| 125. | 893-11006 | [1] | LOCK WASHER,Ext Tooth, M6 | CAS Superseded by part number: 86625265 |
