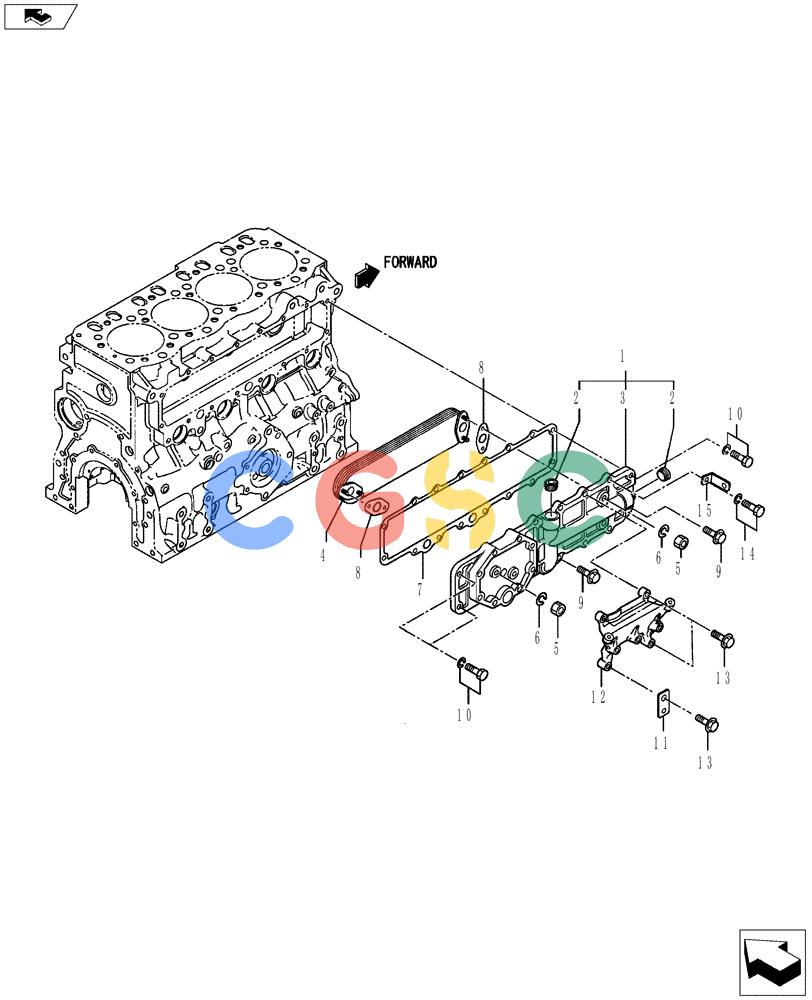

神钢零件查询(ED150-2) - BLADE RUNNER EXCAVATOR/DOZER ASN LH01-01001 (1/09-12/12) (08-022[00]) - OIL COOLER Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
444 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VA32E3900010 | [1] | COVER ASSY | KOBCooler |
| 2. | VA0482772100 | [2] | PLUG | KOBTapered |
| 3. | NSS | [1] | NOT SOLD SEPARAT | CONCover, Oil Cooler |
| 4. | VA3423902101 | [1] | COOLER | KOBElement, Oil |
| 5. | VAF230008000 | [4] | NUT | KOB |
| 6. | VAF251508000 | [4] | SPRING WASHER | KOB |
| 7. | VA3423904101 | [1] | GASKET | KOBOil Cooler |
| 8. | VA3433904201 | [2] | GASKET | KOBO/C Element |
| 9. | VAMF140224 | [2] | BOLT | KOBFlange |
| 10. | VAMF244853 | [5] | BOLT | KOBW/Washer |
| 11. | VA32G8708301 | [1] | Harness | |
| 12. | VA32G6511100 | [1] | Rail | |
| 13. | VAMF140234 | [4] | SPECIAL BOLT | KOBFlange |
| 14. | VAMF244855 | [1] | BOLT | KOBW/Washer |
| 15. | VA32G6105201 | [1] | | |
