纽荷兰零件查询(E805) - CRAWLER EXCAVATOR TIER 3 (7/06-) (04-065-01[01]) - STARTER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
496 次

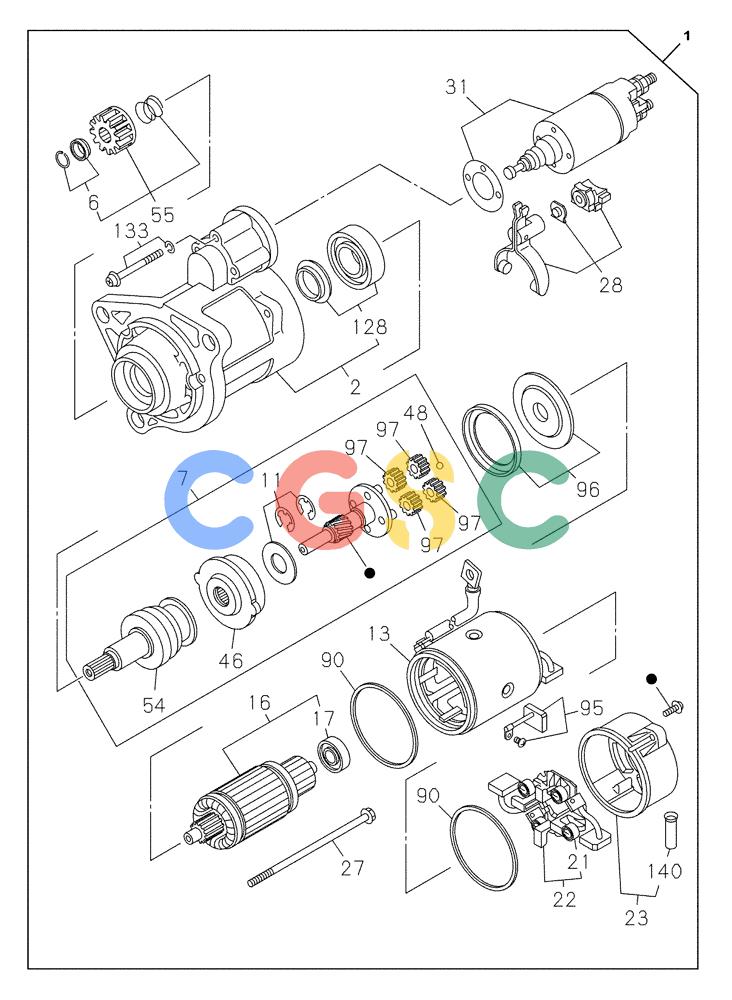

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 426652A1 | [1] | STARTING MOTOR | ISU Superseded by part number: 76614470 |
| 2. | 426682A1 | [1] | HOUSING | ISU |
| 6. | 426683A1 | [1] | STOP | ISU |
| 7. | 426684A1 | [1] | GEAR SHAFT | ISU |
| 11. | 426685A1 | [1] | STARTER MTR REPAIR KIT | ISU |
| 13. | 426686A1 | [1] | STATOR | ISU |
| 16. | 451560A1 | [1] | ARMATURE | ISU |
| 17. | 426688A1 | [1] | BALL BEARING | ISU |
| 21. | 426690A1 | [4] | SPRING | ISU |
| 22. | 426692A1 | [1] | BRUSH HOLDER | ISU |
| 23. | 426693A1 | [1] | COVER | ISU |
| 27. | 426694A1 | [1] | BOLT | ISU |
| 28. | 426695A1 | [1] | LEVER | ISU Superseded by part number: 426697A1 |
| 31. | 426696A1 | [1] | IGNITION SWITCH | ISU |
| 46. | 426697A1 | [1] | GEAR | ISU |
| 48. | 365867A1 | [1] | BALL | CAS Superseded by part number: 72110095 |
| 54. | 426699A1 | [1] | GEAR | ISU |
| 55. | 426700A1 | [1] | PINION | ISU |
| 90. | 426702A1 | [2] | GASKET | ISU |
| 95. | 426703A1 | [1] | BRUSH, COMMUTATOR | ISUBRUSH |
| 96. | 426704A1 | [1] | GASKET | ISU |
| 97. | 426705A1 | [4] | GEAR | ISU |
| 128. | 426706A1 | [1] | BEARING | ISU |
| 133. | 426701A1 | [1] | SCREW | ISU |
| 140. | NSS | [1] | NOT SERVICED SEPARATELY | CON |
