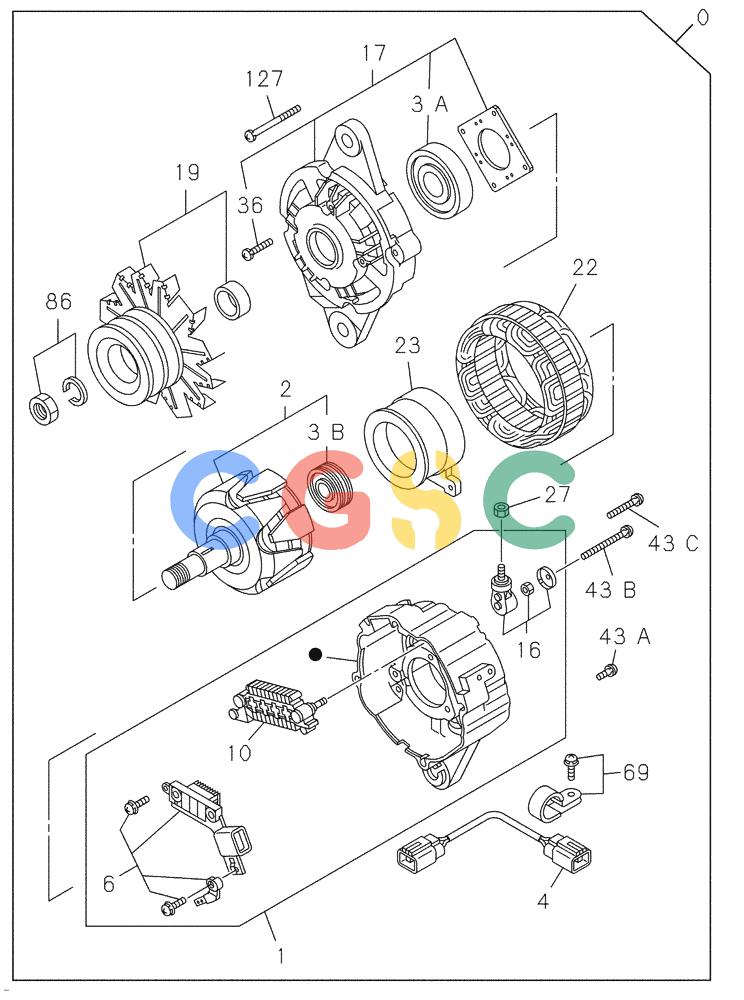

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR TIER 3 (7/06-) (04-066-01[01]) - ALTERNATOR New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
716 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 0. | 426829A1 | [1] | ALTERNATOR,50A, W/ Pulley | ISU |
| 1. | 426800A1 | [1] | COVER | ISU |
| 2. | 426801A1 | [1] | ROTOR | ISU Superseded by part number: 72110607 |
| 3A. | 426802A1 | [1] | BALL BEARING | ISU Superseded by part number: 72110608 |
| 3B. | 426803A1 | [1] | BALL BEARING | ISU Superseded by part number: 72110609 |
| 4. | 87405694 | [1] | BRUSH SET | ISU |
| 6. | 426804A1 | [1] | REGULATOR | ISU Superseded by part number: 72110610 |
| 10. | 426805A1 | [1] | RECTIFIER | ISU |
| 16. | 447026A1 | [1] | TERMINAL | ISU |
| 17. | 426807A1 | [1] | COVER | ISU Superseded by part number: 72110612 |
| 19. | 426808A1 | [1] | PULLEY | ISU |
| 22. | 426809A1 | [1] | STATOR | ISU Superseded by part number: 72110614 |
| 23. | 426810A1 | [1] | COIL | ISU Superseded by part number: 72110615 |
| 27. | 438011A1 | [1] | NUT | ISU |
| 36. | 426812A1 | [4] | SCREW | ISU Superseded by part number: 72110617 |
| 43A. | 438013A1 | [1] | SCREW | ISU Superseded by part number: 72110735 |
| 43B. | 426813A1 | [1] | SCREW | ISU Superseded by part number: 72110618 |
| 43C. | 438012A1 | [1] | SCREW | ISU |
| 69. | 438014A1 | [1] | CLAMP | ISU Superseded by part number: 72110736 |
| 86. | 426814A1 | [1] | NUT | ISU Superseded by part number: 72110737 |
| 127. | 426815A1 | [1] | BOLT | ISU Superseded by part number: 72110620 |
