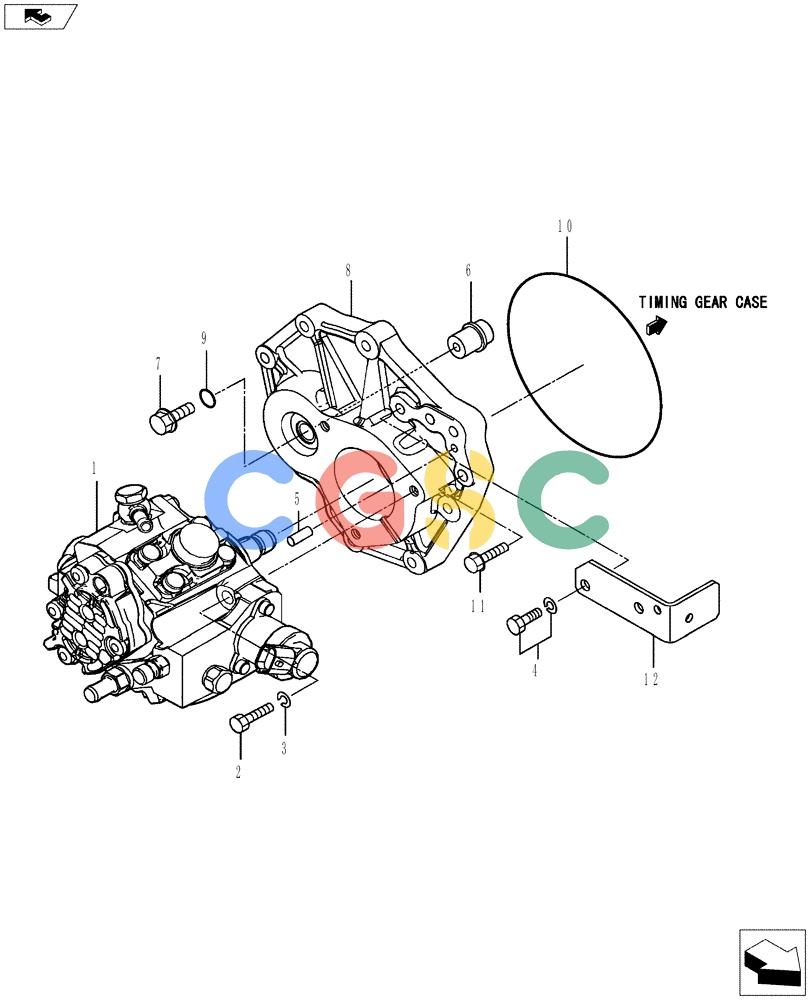

神钢零件查询(ED150-2) - BLADE RUNNER EXCAVATOR/DOZER ASN LH01-01001 (1/09-12/12) (08-031[01]) - INJECTION PUMP Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
657 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VA32G6100300 | [1] | FUEL INJECTION PUMP | KOBHigh Pressure Superseded by part number: VA32G6100301 |
| 2. | VAF103508040 | [3] | BOLT | KOB |
| 3. | VAF251508000 | [3] | SPRING WASHER | KOB |
| 4. | VAF180508020 | [2] | BOLT | KOBW/Washer |
| 5. | VAF284606000 | [1] | PIN | KOBDowel |
| 6. | VA32G2314100 | [1] | SHAFT | KOBPump Idler |
| 7. | VA32G2314200 | [1] | Idler Shaft | |
| 8. | VA32G6502400 | [1] | FLANGE | KOBUpp. |
| 9. | VA0556390014 | [1] | O-RING | KOB |
| 10. | VA0556370258 | [1] | O-RING | KOB |
| 11. | VAMF140229 | [1] | BOLT | KOBFlange |
| 12. | VA32G8708601 | [1] | Harness | |
