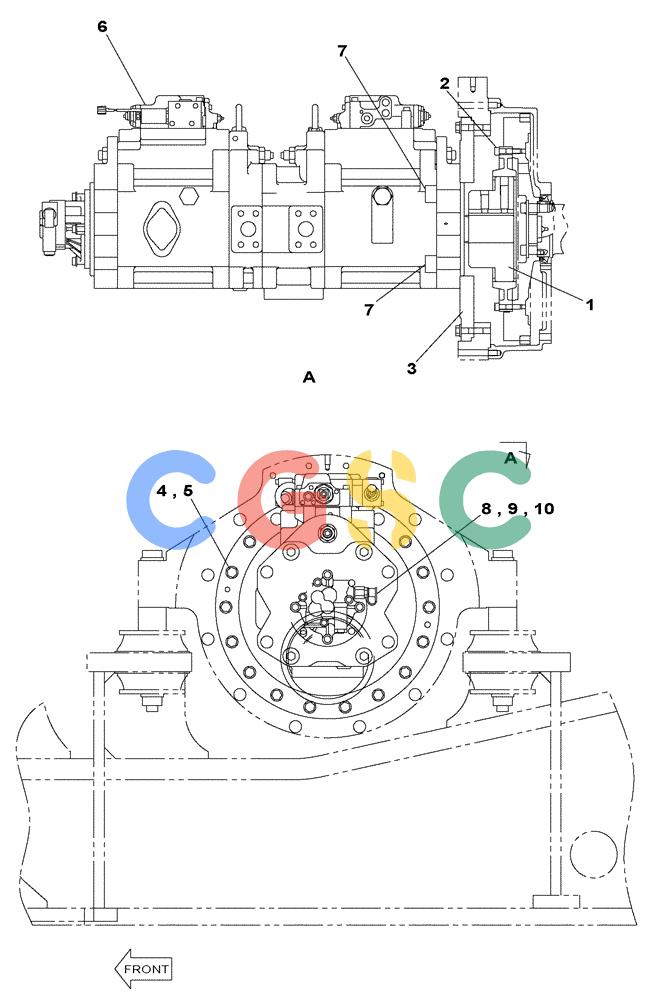

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR TIER 3 (7/06-) (08-002-00[01]) - HYDRAULIC PUMP - COUPLING New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
131 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | KWJ0021 | [1] | COUPLING | SUM |
| 2. | 862-10045 | [16] | HEX SOC SCREW,M10 x 45mm, Cl 12.9 | CAS Superseded by part number: 14420571 |
| 3. | KWJ10520 | [1] | PLATE | SUM |
| 4. | 827-12050 | [16] | BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9 | CASM12 x 20 Superseded by part number: 337476 |
| 5. | 150811A1 | [16] | WASHER | SUMW12 Superseded by part number: 86625255 |
| 6. | KUJ0309 | [1] | PUMP, HYDRAULIC | SUM Superseded by part number: KUJ11580 |
| 7. | 108R024Y080R | [4] | BOLT | SUMM24 x 80 |
| 8. | KHJ2620 | [1] | BUSHING | SUM |
| 9. | 154467A1 | [1] | O-RING,10.8mm ID x 2.4mm Width | SUM |
| 10. | 1541849C1 | [1] | COUPLING | IH Superseded by part number: 87026252 |
