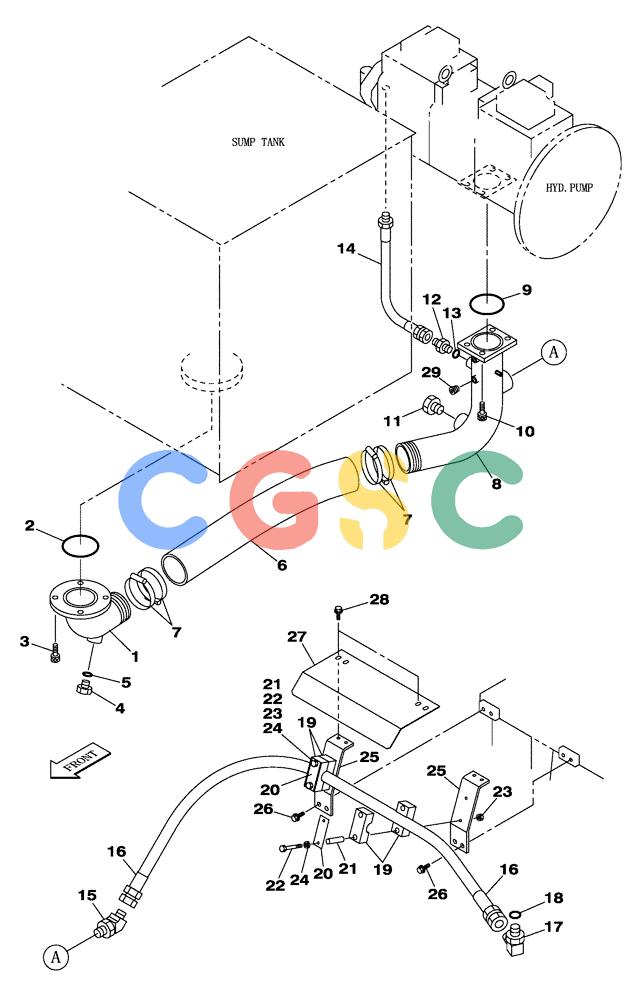

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR TIER 3 (7/06-) (08-003-00[01]) - HYDRAULIC CIRCUIT - SUCTION New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
658 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | KUJ0145 | [1] | HYD. TUBE,93.2 mm ID x 101.6 mm OD | SUM |
| 2. | 154733A1 | [4] | O-RING | SUM |
| 3. | 862-16035 | [1] | HEX SOC SCREW,M16 x 35mm, Cl 12.9 | CAS |
| 4. | 162659A1 | [1] | PLUG | SUM |
| 5. | 154523A1 | [1] | O-RING | SUM |
| 6. | KHJ12600 | [1] | HYDRAULIC HOSE | SUM900 mm |
| 7. | KHH0413 | [4] | CLAMP | SUM |
| 8. | KWJ10360 | [1] | HYD. TUBE,93.2 mm ID x 101.6 mm OD | SUM |
| 9. | 154721A1 | [1] | O-RING,99.4mm ID x 3.1mm Width | SUM |
| 11. | 162335A1 | [1] | PLUG | SUM |
| 12. | 151654A1 | [1] | HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT | SUM |
| 13. | 154503A1 | [1] | O-RING | SUM |
| 14. | KWJ10410 | [1] | HYDRAULIC HOSE,19.05 mm ID x 600.00 mm | SUM |
| 15. | 157589A1 | [1] | ELBOW | SUMG 1/2 |
| 16. | KWJ10380 | [1] | HYDRAULIC HOSE,38.10 mm ID x 1900.00 mm | SUM |
| 17. | KHJ10080 | [1] | ELBOW | SUMG 1/4 x 1/2 |
| 18. | 154559A1 | [1] | O-RING | SUM |
| 19. | KUJ0035 | [4] | HOSE CLAMP | SUM |
| 20. | KUJ0034 | [2] | SHEET | SUM |
| 21. | KUJ0036 | [4] | SPACER | SUM |
| 22. | 102R010Y110R | [4] | BOLT | SUMM10 x 110 |
| 23. | 829-1410 | [4] | NUT,M10 x 1.5, Cl 10.9 | CAS Superseded by part number: 86500689 |
| 24. | 150409A1 | [4] | WASHER | SUMW M10 |
| 25. | KWJ10390 | [2] | SUPPORT | SUM Superseded by part number: KWJ10391 |
| 26. | 152718A1 | [4] | BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9 | SUM |
| 28. | 166052A1 | [4] | BOLT | SUMM10 x 25 Superseded by part number: 11106231 |
| 29. | 150824A1 | [1] | PLUG | SUM |
