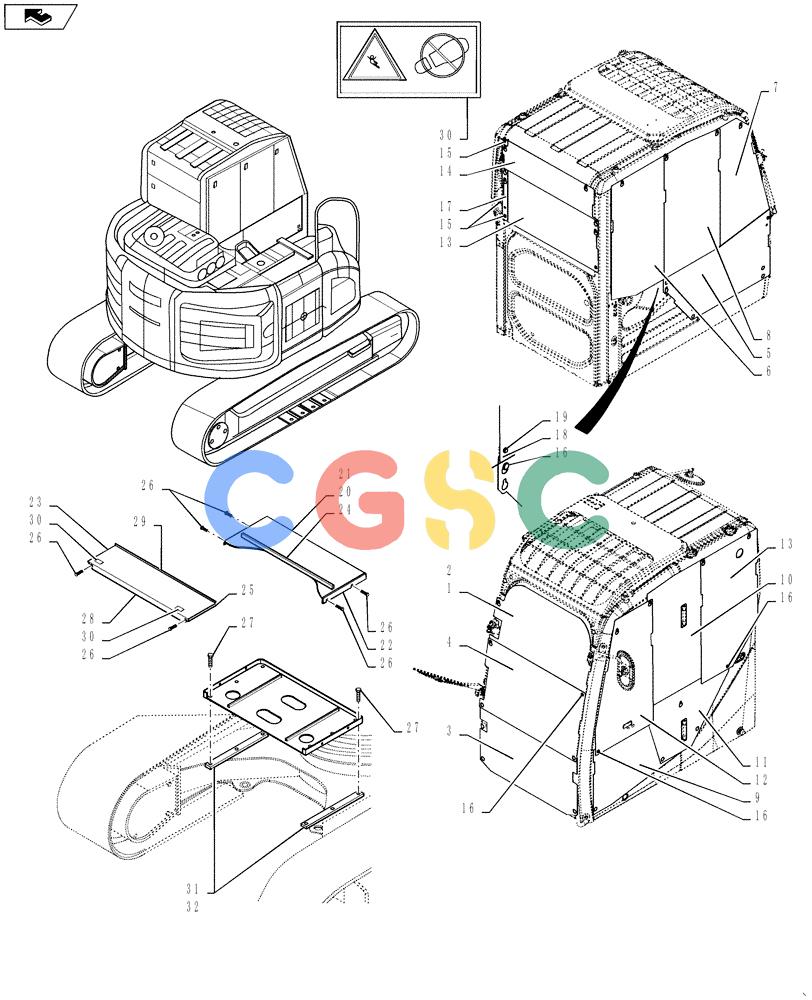

神钢零件查询(ED150-2) - BLADE RUNNER EXCAVATOR/DOZER ASN LH01-01001 (1/09-12/12) (05-008[00]) - VANDALISM GUARD - CAB (NA) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
548 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YY25C00002F1 | [1] | KIT | KOB Superseded by part number: YT25C01044P1, YT25C01048P1, YT25C01037P1, YT25C01051P1, YT25C01035P1, YY25C01002P1, YT25C01041P1, YT25C01022P1, YT25C01052P1, YT25C01053P1, YT25C01046P1, ZM73C08016, YT25C01034P1, YT25C01043P1, YT25C01042P1, YT25C01040P1, YT25C01036P1, YY25C01004P1, YY25C01003P1, PE21C01070D4, YY02F01403P1, ZM73C12030, PE21C01070DV, PE21C01070DU, YT25C01039P1, ZL11M02708, YT25C01045P1, YT25C01038P1 |
| 1. | YT25C01057F1 | [1] | KIT | KOBAssembly Inc 2 - 19 |
| 2. | YT25C01022P1 | [1] | GUARD | KOB |
| 3. | YT25C01034P1 | [1] | GUARD | KOB |
| 4. | YT25C01035P1 | [1] | GUARD | KOB |
| 5. | YT25C01036P1 | [1] | GUARD | KOB |
| 6. | YT25C01037P1 | [1] | GUARD | KOB |
| 7. | YT25C01038P1 | [1] | GUARD | KOB |
| 8. | YT25C01039P1 | [1] | GUARD | KOB |
| 9. | YT25C01042P1 | [1] | GUARD | KOB |
| 10. | YT25C01041P1 | [1] | GUARD | KOB |
| 11. | YT25C01040P1 | [1] | GUARD | KOB |
| 12. | YT25C01043P1 | [1] | GUARD | KOB |
| 13. | YT25C01044P1 | [1] | GUARD | KOB |
| 14. | YT25C01045P1 | [1] | GUARD | KOB |
| 13. | YT25C01046P1 | [1] | GUARD | KOB |
| 15. | ZM73C08016 | [4] | BOLT,M8x16mm - Course Thread | KOB |
| 16. | ZM73C08016 | [4] | BOLT,M8x16mm - Course Thread | KOB |
| 17. | YT25C01051P1 | [1] | PLATE | KOB |
| 18. | YT25C01052P1 | [1] | PLATE | KOB |
| 19. | YT25C01053P1 | [1] | BOLT | KOB |
| 20. | YT25C01047F1 | [1] | KIT | KOBAssembly Inc. Ref 21 - 30 |
| 21. | YT25C01048P1 | [1] | BOX | KOB |
| 22. | YY25C01002P1 | [1] | COVER | KOB |
| 23. | YY25C01003P1 | [1] | PLATE | KOB |
| 24. | YY25C01004P1 | [1] | PLATE | KOB |
| 25. | PE21C01070D4 | [2] | CAP | KOB |
| 26. | ZM73C08016 | [6] | BOLT,M8x16mm - Course Thread | KOB |
| 27. | ZM73C12030 | [6] | BOLT,M12x30mm - Course Thread | KOB |
| 28. | PE21C01070DU | [1] | TRIM | KOB |
| 29. | PE21C01070DV | [1] | TRIM | KOB |
| 30. | ZL11M02708 | [2] | LABEL | KOB |
| 31. | YY02F00146P1 | [1] | KIT | KOBAssembly Inc. 32 |
| 32. | YY02F01403P1 | [2] | PLATE | KOB |
