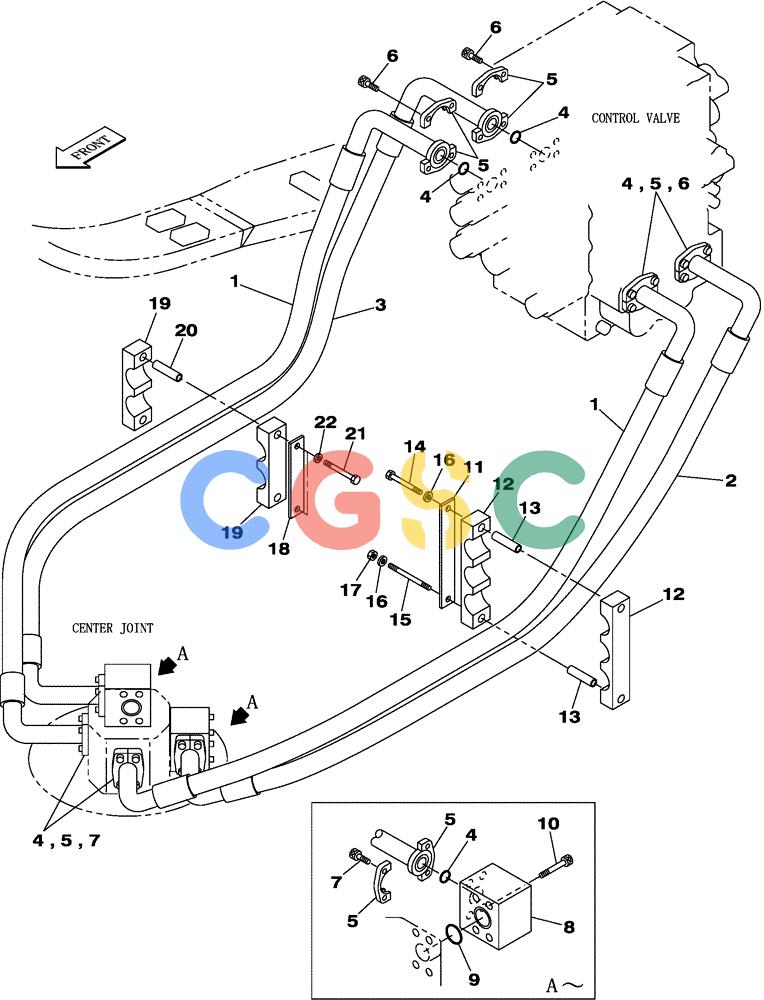

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR TIER 3 (7/06-) (08-009-00[01]) - HYDRAULIC CIRCUIT - TRAVEL New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
317 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | KUJ0214 | [2] | HYDRAULIC HOSE,31.80 mm ID x 1850.00 mm | SUM |
| 2. | KUJ10250 | [1] | HYDRAULIC HOSE,31.80 mm ID x 1840.00 mm | SUM |
| 3. | KUJ0050 | [1] | HYDRAULIC HOSE,31.80 mm ID x 1850.00 mm | SUM |
| 4. | 164450A1 | [8] | O-RING | SUM |
| 5. | 150124A1 | [16] | FLANGE | SUM |
| 6. | 108R014Y045R | [16] | BOLT,Hex Skt, M14 x 45mm, Cl 12.9 | SUMM14 x 45 |
| 7. | 862-14040 | [16] | HEX SOC SCREW,M14 x 40mm, Cl 12.9 | CAS |
| 8. | KUJ0285 | [2] | MANIFOLD VALVE | SUM |
| 10. | 862-14090 | [8] | HEX SOC SCREW,M14 x 90mm, Cl 12.9 | CAS Superseded by part number: 108R014Y090R |
| 11. | KUJ0212 | [1] | SHEET | SUM |
| 12. | KUJ0211 | [2] | HOSE CLAMP | SUM |
| 13. | KUJ0036 | [2] | SPACER | SUM |
| 14. | 827-10090 | [1] | BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9 | CASM10 x 90 Superseded by part number: 828-10090 |
| 15. | KUJ0398 | [1] | STUD | SUMM10 |
| 16. | 150409A1 | [2] | WASHER | SUMW M10 |
| 17. | 829-1410 | [1] | NUT,M10 x 1.5, Cl 10.9 | CAS Superseded by part number: 86500689 |
| 18. | 152888A1 | [1] | PLATE, SPACER | SUMPLATE,SPACER |
| 19. | KUJ0213 | [2] | HOSE CLAMP | SUM |
