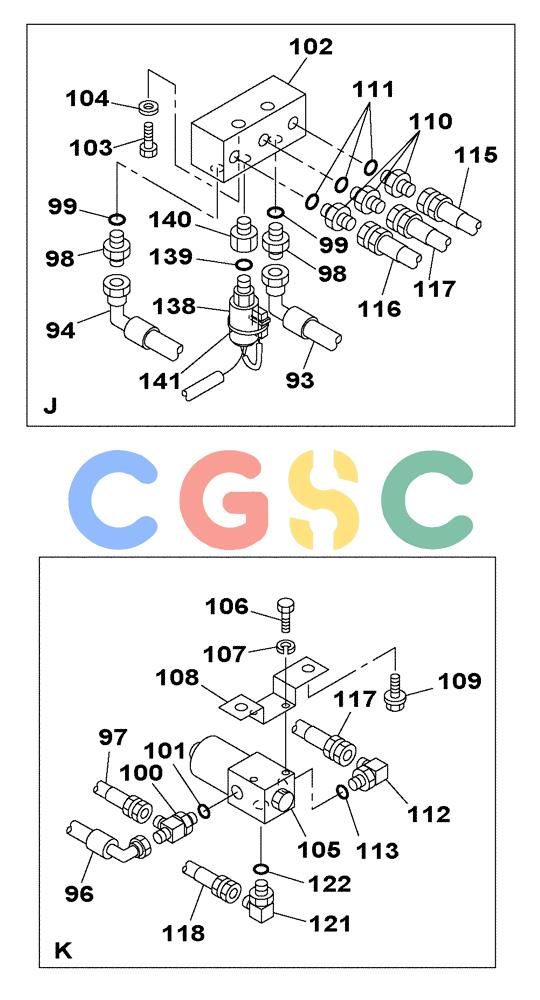

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR TIER 3 (7/06-) (08-038-00[01]) - HYDRAULIC CIRCUIT - OPTIONAL - 3-WAY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
192 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 94. | 165147A1 | [1] | HOSE ASSY. | SUM300 mm |
| 96. | 159013A1 | [1] | HOSE ASSY. | SUM600 mm |
| 97. | 159235A1 | [1] | HYDRAULIC HOSE | SUM |
| 98. | 152127A1 | [2] | HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT | SUM |
| 99. | 154467A1 | [1] | O-RING,10.8mm ID x 2.4mm Width | SUM |
| 100. | 159497A1 | [1] | TEE | SUM |
| 102. | KHJ1655 | [1] | VALVE BLOCK | SUM Superseded by part number: KHJ17100 |
| 103. | 827-8055 | [2] | BOLT,Hex, M8 x 1.25 x 55mm, Cl 10.9 | CAS Superseded by part number: 56605 |
| 104. | 153081A1 | [2] | WASHER | SUMW M8 |
| 105. | 162538A1 | [1] | VALVE | SUM |
| 106. | 627-6012 | [2] | BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd | CAS Superseded by part number: 86508616 |
| 107. | 183-106VR | [2] | SPRING WASHER | SUMSW 6 |
| 108. | KRJ5751 | [1] | BRACKET | SUM |
| 109. | 166346A1 | [2] | BOLT,Sems, M10 | SUMM10 x 16 |
| 112. | 150913A1 | [1] | ELBOW,90º, 1/4" O-Ring x 1/4" | SUM |
| 115. | KHJ10260 | [1] | HYDRAULIC HOSE | SUM4900 mm |
| 116. | MPJ5370 | [1] | HOSE | SUM4700 mm |
| 117. | 161272A1 | [1] | HOSE | SUM650 mm |
| 138. | KHR10800 | [1] | PRESSURE SWITCH | SUM Superseded by part number: KHR24010 |
| 140. | KHJ11460 | [1] | ADAPTER | SUM |
| 141. | 150067A1 | [1] | MOUNTING CLIP | SUM150 mm |
