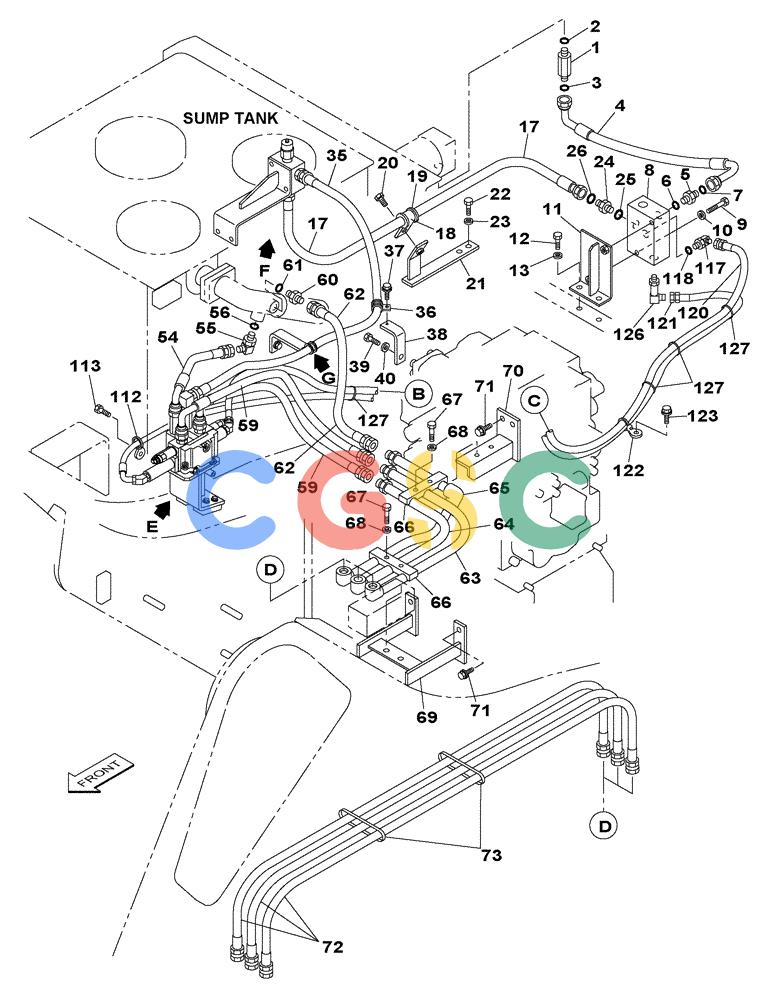

| 1. | KHJ1495 | [1] | ADAPTER | SUM |
| 2. | 154503A1 | [1] | O-RING | SUM |
| 3. | KHJ1360 | [1] | O-RING,0.07" Thk x 0.739" ID | SUM |
| 4. | KWJ10680 | [1] | HYDRAULIC HOSE | SUM620 mm |
| 5. | KHJ1348 | [1] | ADAPTER | SUM |
| 8. | KHJ1473 | [1] | VALVE | SUM |
| 9. | 827-10080 | [2] | BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9 | CAS Superseded by part number: 43252 |
| 10. | 150409A1 | [2] | WASHER | SUMW M10 |
| 11. | KWJ10790 | [1] | SUPPORT | SUM |
| 12. | 627-12035 | [2] | BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd | CAS Superseded by part number: 626-12035 |
| 13. | 150811A1 | [2] | WASHER | SUMW12 Superseded by part number: 86625255 |
| 17. | KUJ10790 | [1] | HYDRAULIC HOSE,1460.00 mm | SUM |
| 18. | KHJ2023 | [1] | HOSE CLAMP | SUM |
| 19. | KHJ2025 | [1] | CLAMP | SUM |
| 20. | 166347A1 | [1] | BOLT,Sems, M10 x 30mm | SUMM10 x 30 |
| 21. | KUJ10820 | [1] | SUPPORT | SUM |
| 22. | 627-12040 | [2] | BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd | CAS Superseded by part number: 337563 |
| 35. | KUJ10780 | [1] | HYDRAULIC HOSE,1930.00 mm | SUM |
| 36. | KHJ2451 | [2] | FIXING BRACKET | SUM |
| 37. | 159602A1 | [2] | BOLT,Sems, Hex, M6 x 16mm | SUMM6 x 16 |
| 38. | KWJ10820 | [1] | SUPPORT | SUM |
| 54. | 167238A1 | [1] | HYDRAULIC HOSE | SUM410 mm Superseded by part number: KAJ4760 |
| 55. | 157580A1 | [1] | ELBOW,90º, 3/4" O-Ring x 3/4" | SUM |
| 59. | KUJ10730 | [1] | HYDRAULIC HOSE,500.00 mm | SUM |
| 60. | 151654A1 | [1] | HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT | SUM |
| 62. | KAJ4092 | [1] | HYDRAULIC HOSE | SUM410 mm |
| 63. | KUJ10850 | [1] | HYD. TUBE | SUM |
| 64. | KUJ10860 | [1] | HYD. TUBE | SUM |
| 65. | KUJ10870 | [1] | HYD. TUBE | SUM |
| 66. | 167233A1 | [2] | COLLAR | SUM |
| 67. | 827-12060 | [4] | BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9 | CAS Superseded by part number: 43263 |
| 69. | KUJ10830 | [1] | SUPPORT | SUM |
| 70. | KUJ10840 | [1] | SUPPORT | SUM |
| 71. | 166352A1 | [4] | BOLT | SUMM12 x 30 |
| 72. | KUJ10760 | [3] | HYDRAULIC HOSE | SUM2200 mm |
| 73. | 150071A1 | [1] | MOUNTING CLIP | SUM380 mm |
| 112. | KHR2584 | [1] | CLAMP | SUM |
| 113. | KHJ1215 | [1] | BOLT,Spcl | SUMM8 x 25 |
| 117. | 150913A1 | [1] | ELBOW,90º, 1/4" O-Ring x 1/4" | SUM |
| 118. | 154467A1 | [1] | O-RING,10.8mm ID x 2.4mm Width | SUM |
| 120. | 159007A1 | [1] | HOSE | SUM2000 mm Superseded by part number: KAJ3099 |
| 121. | 158130A1 | [1] | HOSE,6.3mm ID x 1350mm L | SUM3350 mm |
| 126. | KHJ1178 | [1] | ELBOW | SUM |
