纽荷兰零件查询(E805) - CRAWLER EXCAVATOR TIER 3 (7/06-) (08-041-00[01]) - HYDRAULIC CIRCUIT - SMALL FLOW New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
315 次

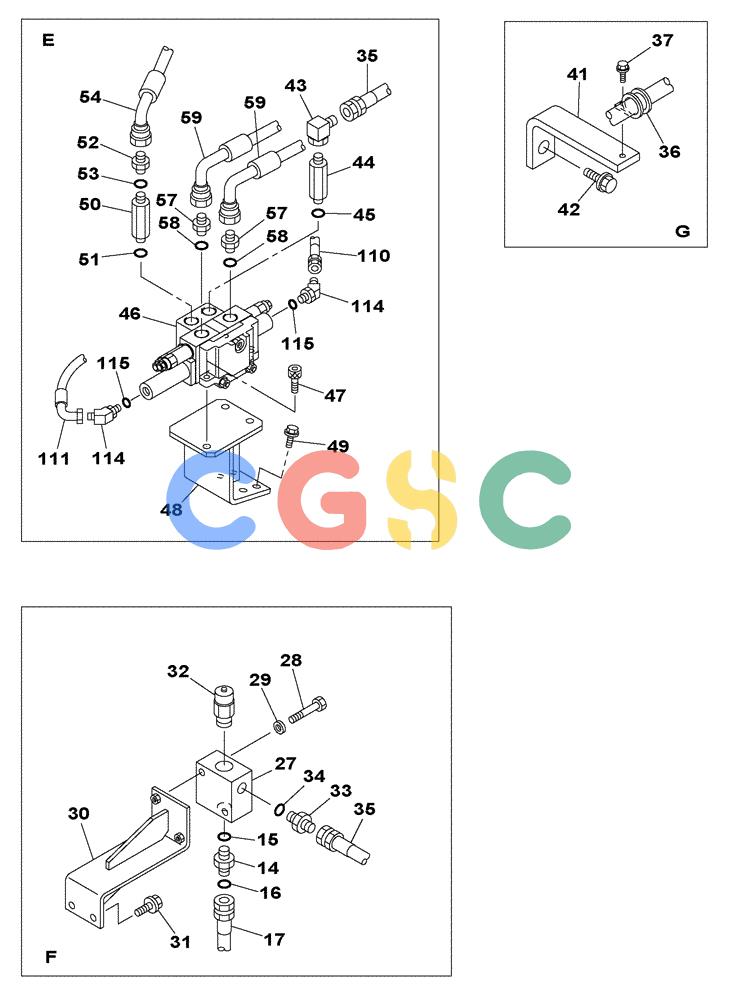

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 14. | KHJ1348 | [1] | ADAPTER | SUM |
| 15. | 154503A1 | [1] | O-RING | SUM |
| 16. | KHJ1360 | [1] | O-RING,0.07" Thk x 0.739" ID | SUM |
| 17. | KUJ10790 | [1] | HYDRAULIC HOSE,1460.00 mm | SUM |
| 27. | KWJ10880 | [1] | VALVE SECTION | SUM |
| 28. | 827-10070 | [2] | BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9 | CAS Superseded by part number: 355788 |
| 29. | 150409A1 | [2] | WASHER | SUMW M10 |
| 30. | KWJ10810 | [1] | SUPPORT | SUM |
| 31. | 166352A1 | [2] | BOLT | SUMM120 x 30 |
| 32. | KTJ2448 | [1] | VALVE SECTION | SUM |
| 33. | 151654A1 | [1] | HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT | SUM |
| 35. | KUJ10780 | [1] | HYDRAULIC HOSE,1930.00 mm | SUM |
| 36. | KHJ2451 | [2] | FIXING BRACKET | SUM |
| 37. | 159602A1 | [2] | BOLT,Sems, Hex, M6 x 16mm | SUMM6 x 16 |
| 41. | KWJ10830 | [1] | SUPPORT | SUM |
| 42. | 152718A1 | [1] | BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9 | SUM |
| 43. | 167908A1 | [1] | ELBOW | SUM |
| 44. | 158759A1 | [1] | HYD CONNECTOR | SUM |
| 45. | 154487A1 | [1] | O-RING | SUM |
| 46. | 168709A1 | [1] | VALVE SECTION | SUM |
| 47. | 862-10035 | [3] | HEX SOC SCREW,M10 x 35mm, Cl 12.9 | CAS |
| 48. | KUJ10890 | [1] | SUPPORT | SUM |
| 50. | KHJ1070 | [1] | STUD | SUM |
| 52. | 161102A1 | [1] | ADAPTER | SUM |
| 54. | 167238A1 | [1] | HYDRAULIC HOSE | SUM410 mm Superseded by part number: KAJ4760 |
| 59. | KUJ10730 | [1] | HYDRAULIC HOSE,500.00 mm | SUM |
| 110. | 152276A1 | [1] | HOSE,63mm ID x 550mm L | SUM |
| 111. | 159019A1 | [1] | HOSE ASSY. | SUM900 mm |
| 114. | 150933A1 | [2] | ELBOW | SUM |
| 115. | 154467A1 | [1] | O-RING,10.8mm ID x 2.4mm Width | SUM |
