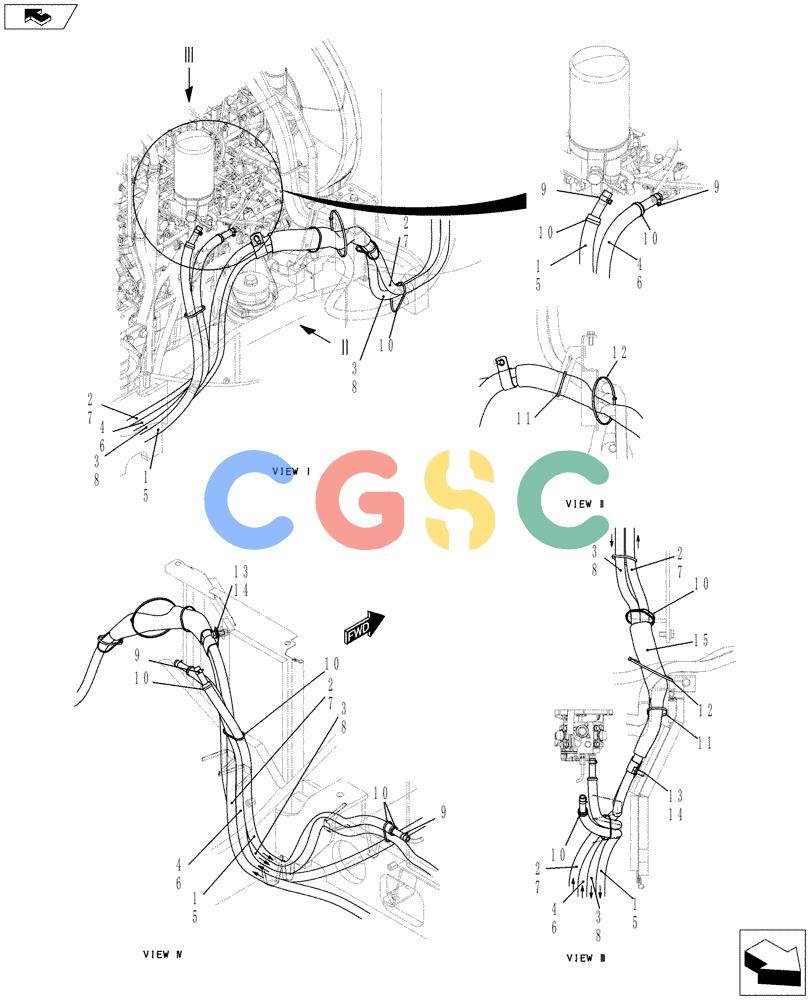

神钢零件查询(ED150-2) - BLADE RUNNER EXCAVATOR/DOZER ASN LH01-01001 (1/09-12/12) (01-012[02]) - FUEL LINES Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
980 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | HX11F06120DX | [1] | HOSE ASSY.,9.70mm ID x 1200mm L | KOB |
| 2. | HX11F06400DX | [1] | HOSE ASSY.,9.70mm ID x 4000mm L | KOB |
| 3. | HX11F06480DX | [1] | HOSE ASSY.,9.70mm ID x 4800mm L | KOB |
| 4. | YY21P01023P1 | [1] | HOSE ASSY. | KOB |
| 5. | HX81X19110DX | [1] | PIPE | KOB |
| 6. | HX81X19260DX | [1] | TUBE | KOB |
| 7. | HX81X19390DX | [1] | PIPE | KOB |
| 8. | HX81X19470DX | [1] | PIPE | KOB |
| 9. | PH05P01088D7 | [10] | CLIP,13.6mm - 17.5mm | KOB |
| 10. | PY01P01043D2 | [20] | CABLE TIE,4.60mm W x 202mm L | KOB Superseded by part number: YT50C01100P1 |
| 11. | PY01P01043D3 | [4] | CABLE TIE,188mm L | KOB |
| 12. | PY01P01043D7 | [1] | CABLE TIE,4.80mm W x 445mm L | KOB |
| 13. | ZC48X24014 | [1] | CLIP | KOB |
| 14. | ZM73C10025 | [3] | BOLT,M10x25mm - Course Thread | KOBSems |
| 15. | YN68H01106P1 | [1] | COVER | KOB |
